Headlamp: Service and Repair

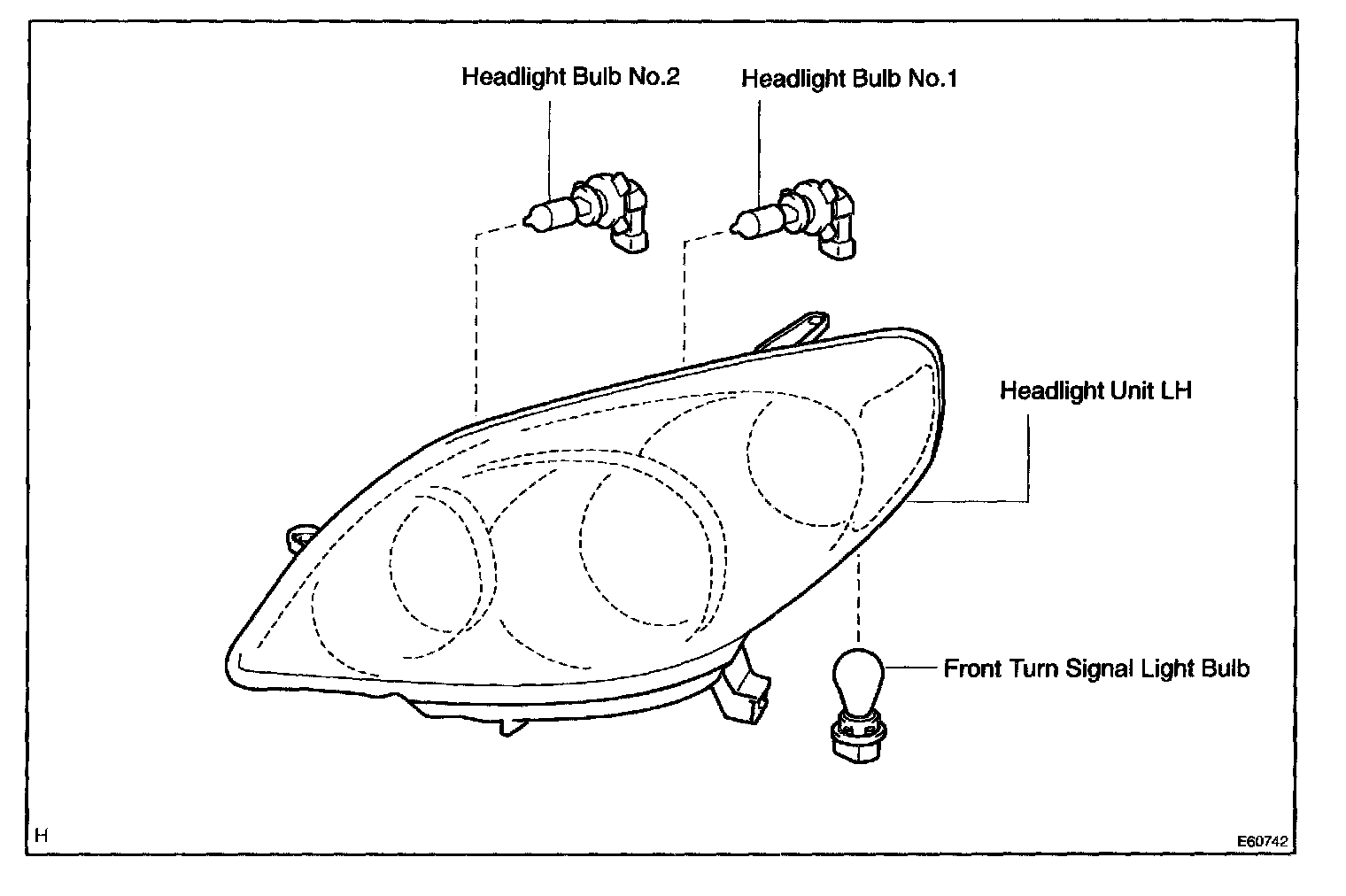

LH Headlamp Assy Components:
REPLACEMENT 1.
REMOVE FRONT BUMPER COVER
2.
REMOVE LH
HEADLAMP ASSY
a.
Remove the 3 bolts.
b.
Pull out the headlight assy LH forward, then disconnect the bracket of body side.
c.
Release the 2 claws and disconnect the connectors as shown in the illustration, and remove the headlight assy LH.
3.
PUT VEHICLE THESE CONDITIONS
4.
ADJUST FOG LIGHT AIM
5.
HEADLIGHT AIM ONLY
