Engine - Revised Oil Capacity/Dipstick

T-SB-0134-08

July 15, 2008

IZZ-FE Engine Oil Level Specification Update

Service Category
Engine/Hybrid System

Section
Lubrication

Market USA





Applicability

Introduction

The 1ZZ-FE engine oil capacity and oil level gauge assembly (dipstick) has been updated for specific model year Celica Corolla and Matrix vehicles. Refer to the information below for the updated capacity and part number information.





Parts Information





Warranty Information

Part Identification

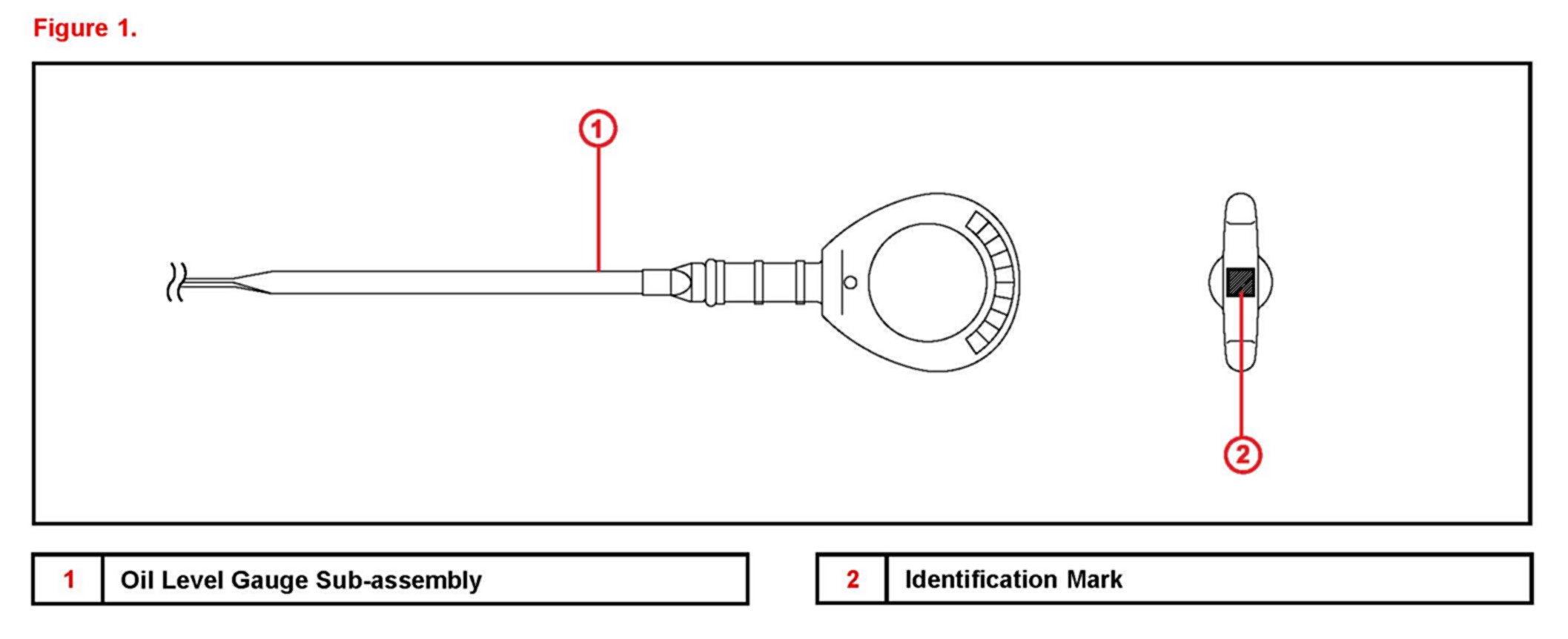

The updated oil level dipstick has an identification mark as indicated in Figure 1.





Specification Chart
