Canada - Engine Controls - MIL ON/DTC P0125/P0130/P0133 Set

Bulletin
1117

Issue Date
2002-09-27

Reference
EE-02-007

Model
Corolla, Matrix

Year Range
2003

Market
Canada

Component
EE

Subject:
M.I.L. "ON" P0125, P0130, OR P0133

Certain 2003 model year Corolla and Matrix vehicles equipped with a 1ZZ engine may exhibit a M.I.L. "ON" condition with Diagnostic Trouble Codes P0125, P0130 or P0133 in the Engine Control Module (ECM). Use the following procedure to inspect and replace the Oxygen Sensor 1.

NOTE:
After certain driving conditions, Diagnostic Trouble Codes P0171, P0172, P0300,P0301, P0302, P0303 or P0304 may also be found in conjunction with one or more aforementioned Oxygen Sensor DTC's. Follow the repair manual diagnostic procedure for P0125, P0130 or P0133, as applicable.

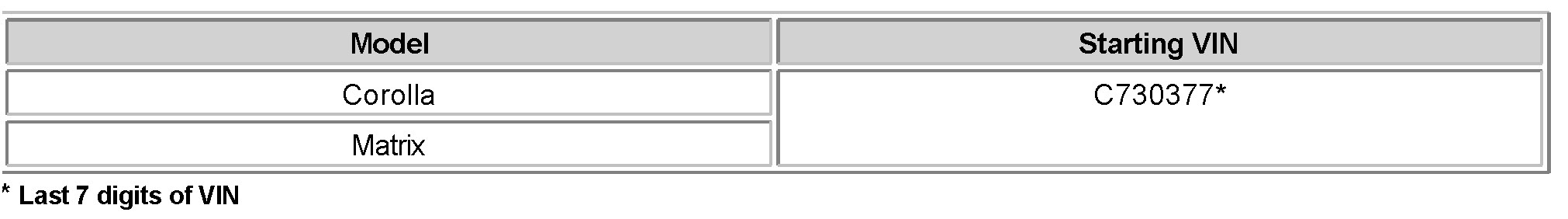

APPLICABLE VEHICLES: 2003 model year Corolla and Matrix produced BEFORE the VIN shown below.







PRODUCTION CHANGE INFORMATION:

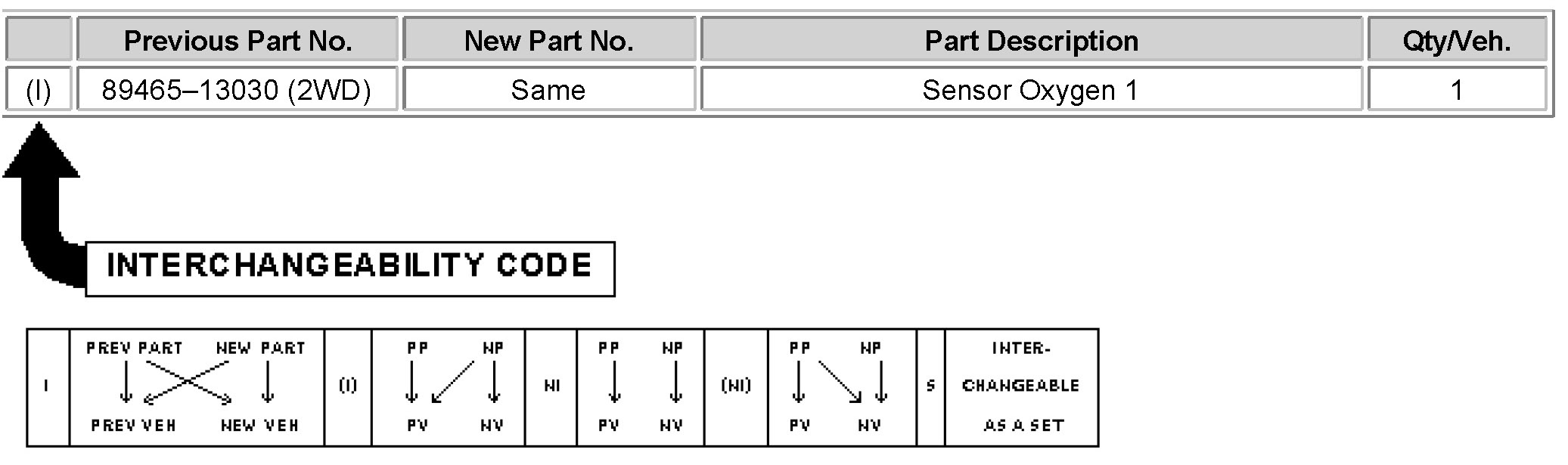

PARTS INFORMATION:

REPAIR PROCEDURE:
Perform the Oxygen Sensor inspection procedure steps 1-3 for the applicable Diagnostic Trouble Code. If NO GOOD, replace Oxygen Sensor 1.
Refer to Oxygen Sensor 1 location on:
2003 Corolla Repair Manual Volume 1.

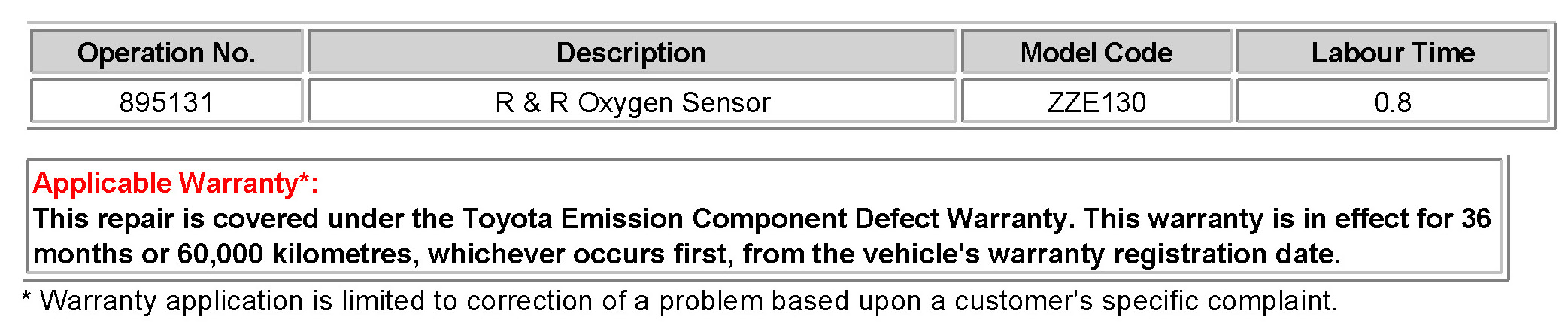

REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
