Removal and Installation
STARTER ASSY REPLACEMENT 1.
REMOVE ENGINE UNDER COVER RH
2.

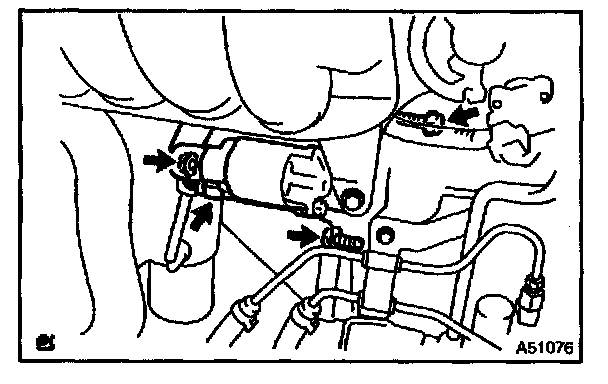

REMOVE STARTER ASSY
a.
Disconnect the starter connector.
b.
Remove the nut and disconnect the starter wire.
c.
Remove the 2 bolts and starter.
3.
INSTALL STARTER ASSY
Torque:
Bolt
37 N.m (378 kgf.cm, 27 ft.lbf) Nut
9.8 N.m (100 kgf.cm, 7 ft.lbf)
