Light Control Switch Circuit
CIRCUIT DESCRIPTION
This circuit defects the state of the light control switch.

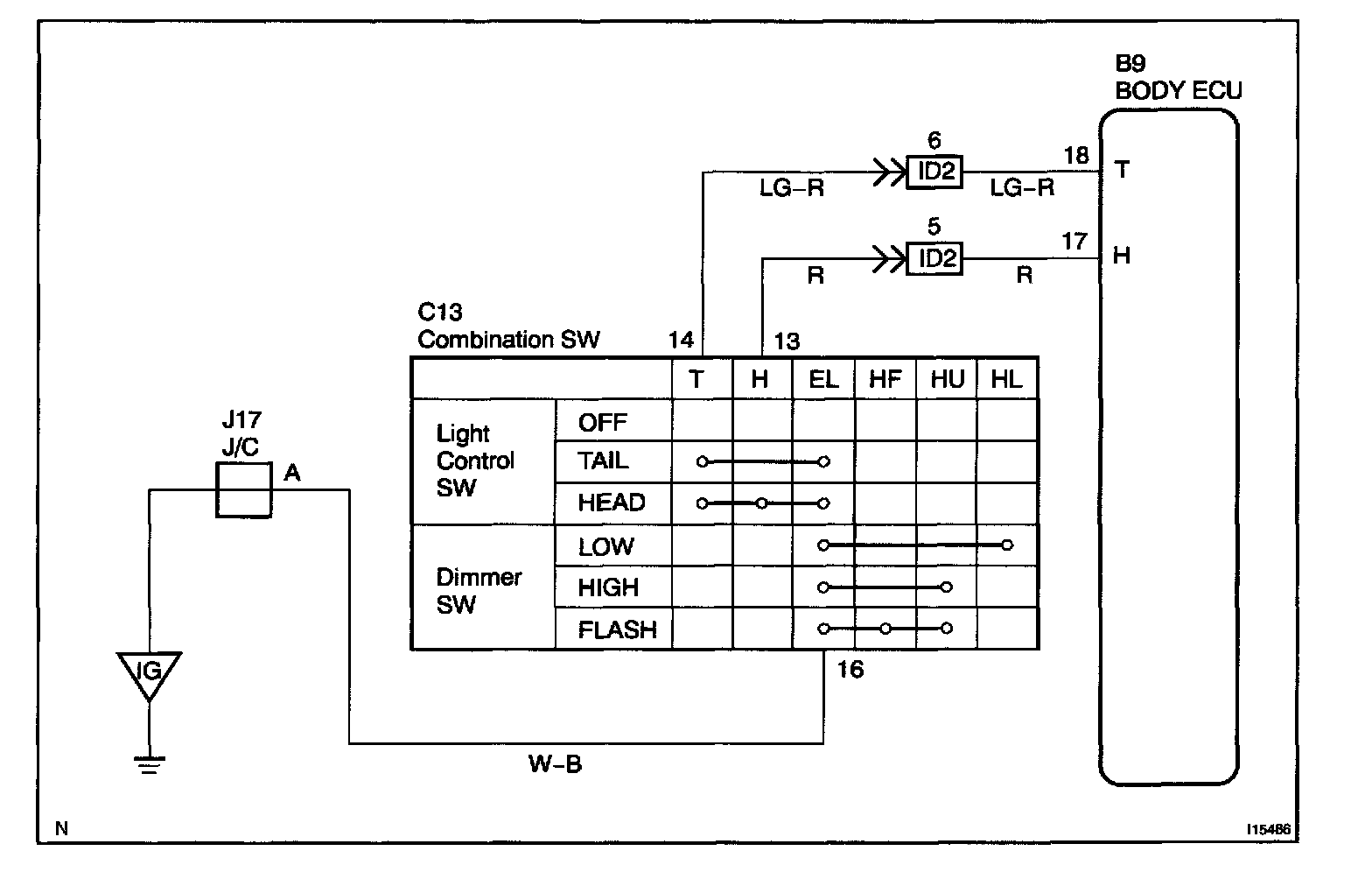

Wiring Diagram:

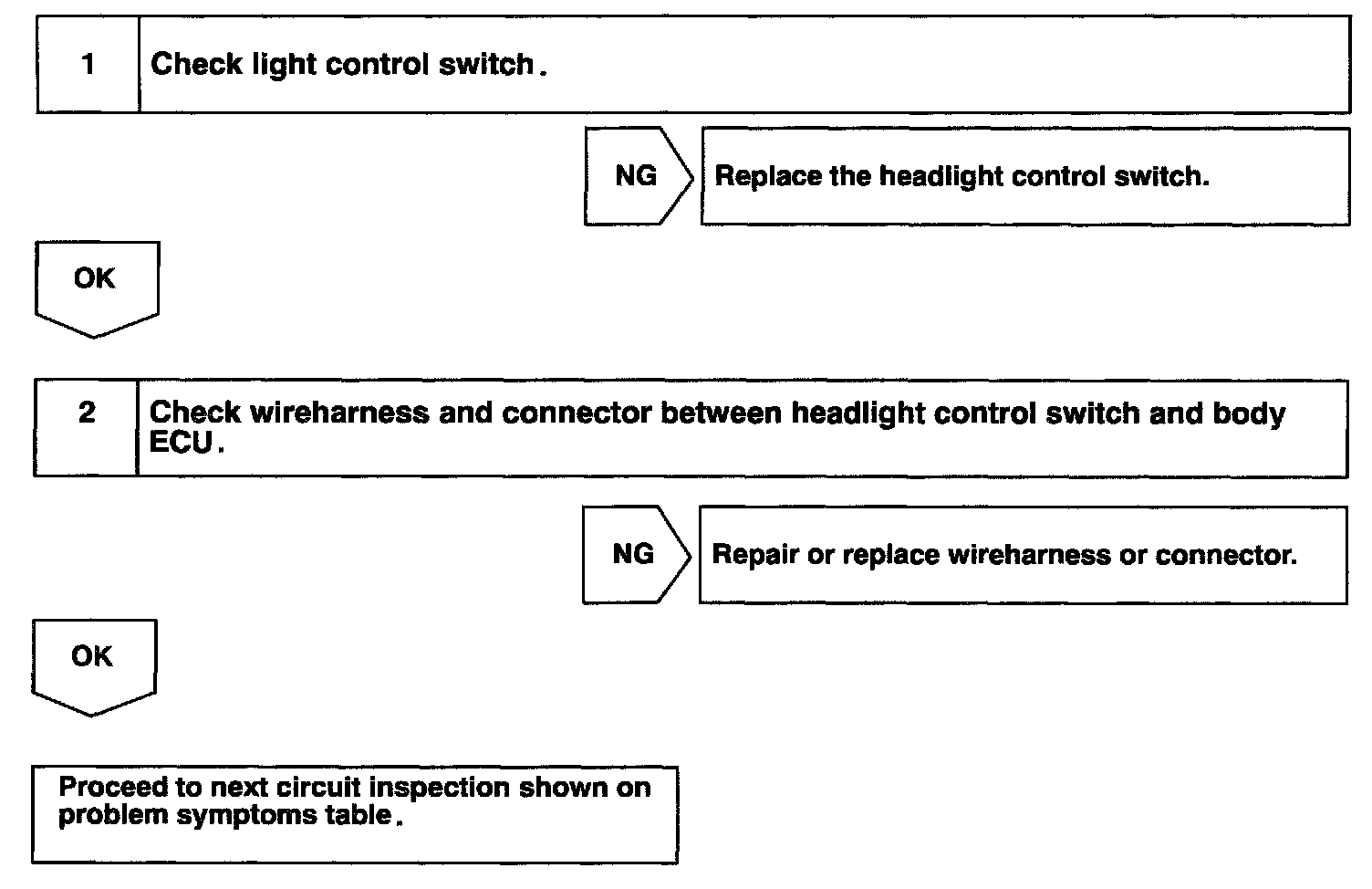

Step 1 - 2:
INSPECTION PROCEDURE
