Power Window Switch Circuit
CIRCUIT DESCRIPTIONPower window switch circuit can be checked using DTC check.
This DTC is output when communication stops between driver door ECU and body ECU.

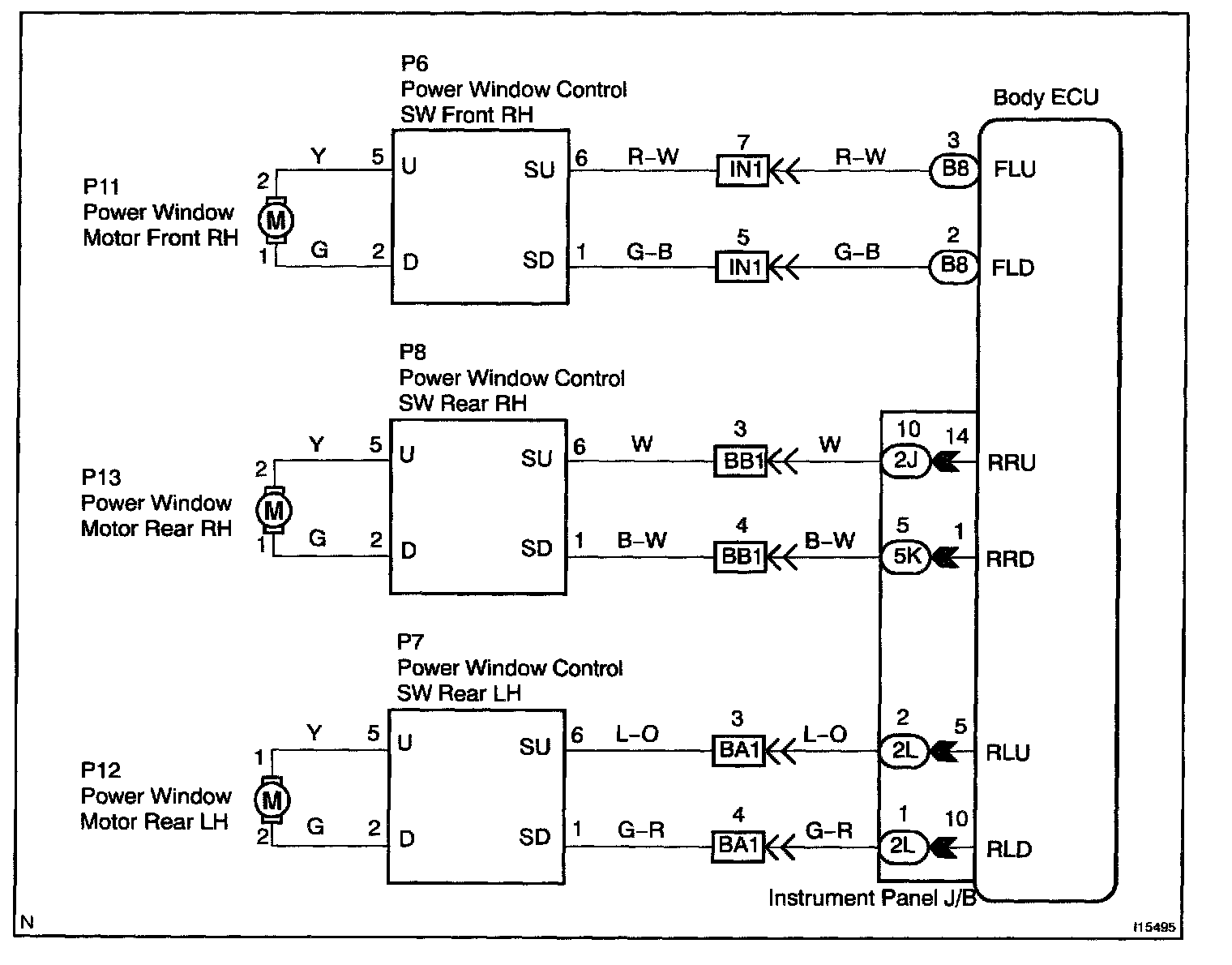

Wiring Diagram:

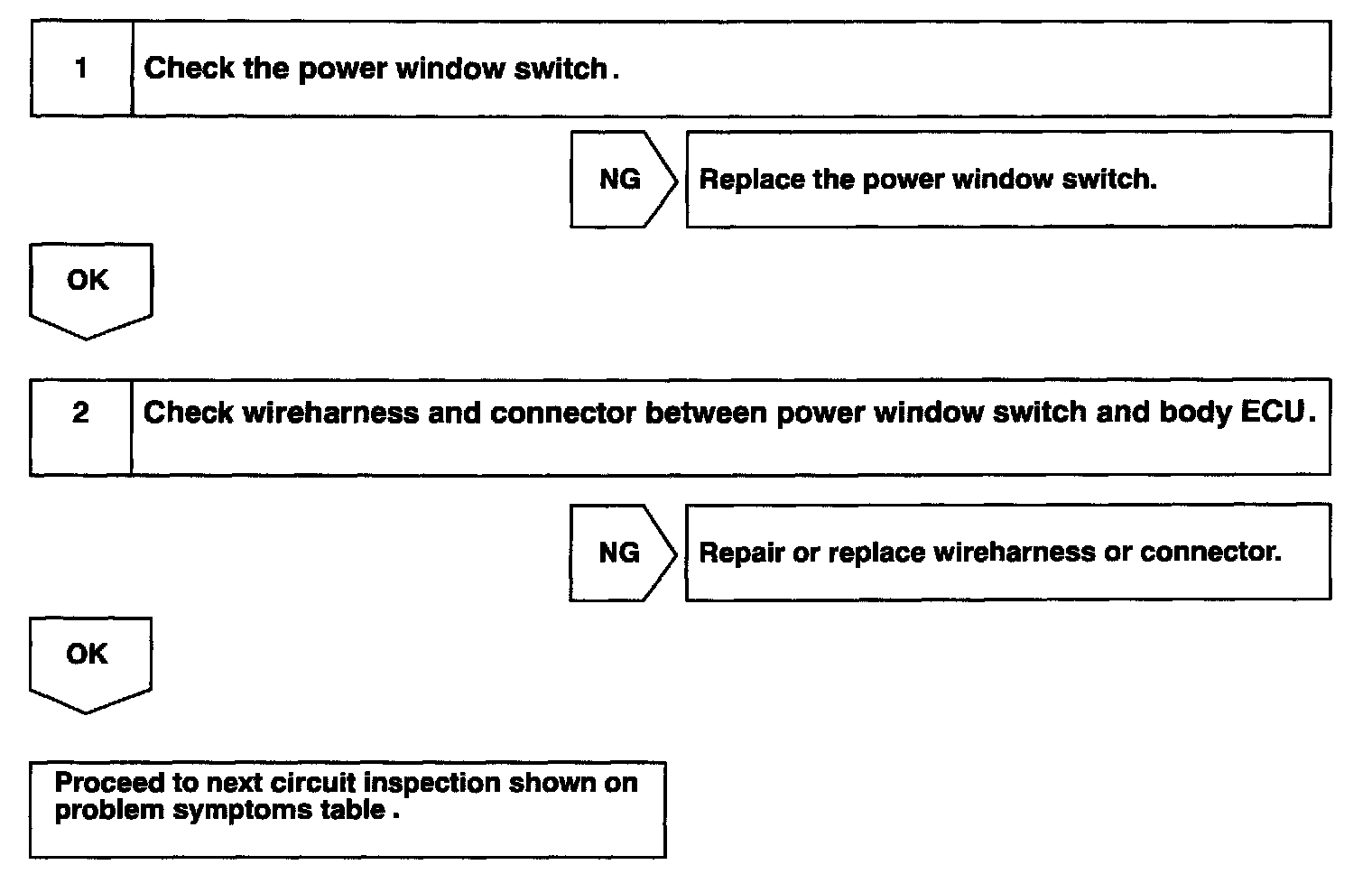

Step 1 - 2:
INSPECTION PROCEDURE
Power window switch circuit can be checked using DTC check.
This DTC is output when communication stops between driver door ECU and body ECU.
INSPECTION PROCEDURE
