Cruise Control
>>
Cruise Control Module
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

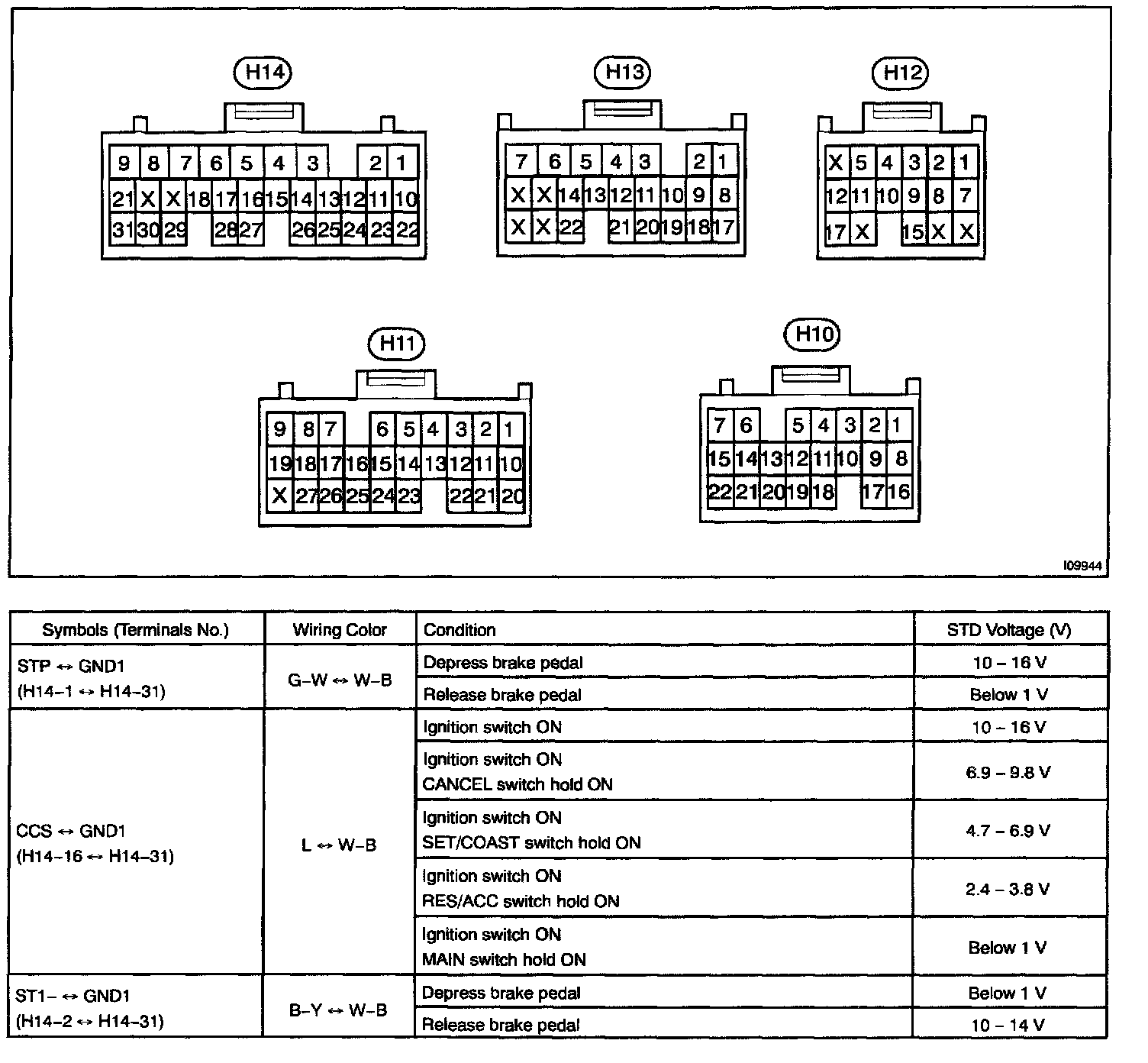

Terminals Of ECU/Pinouts:
