Fuse Block
Fuse Block

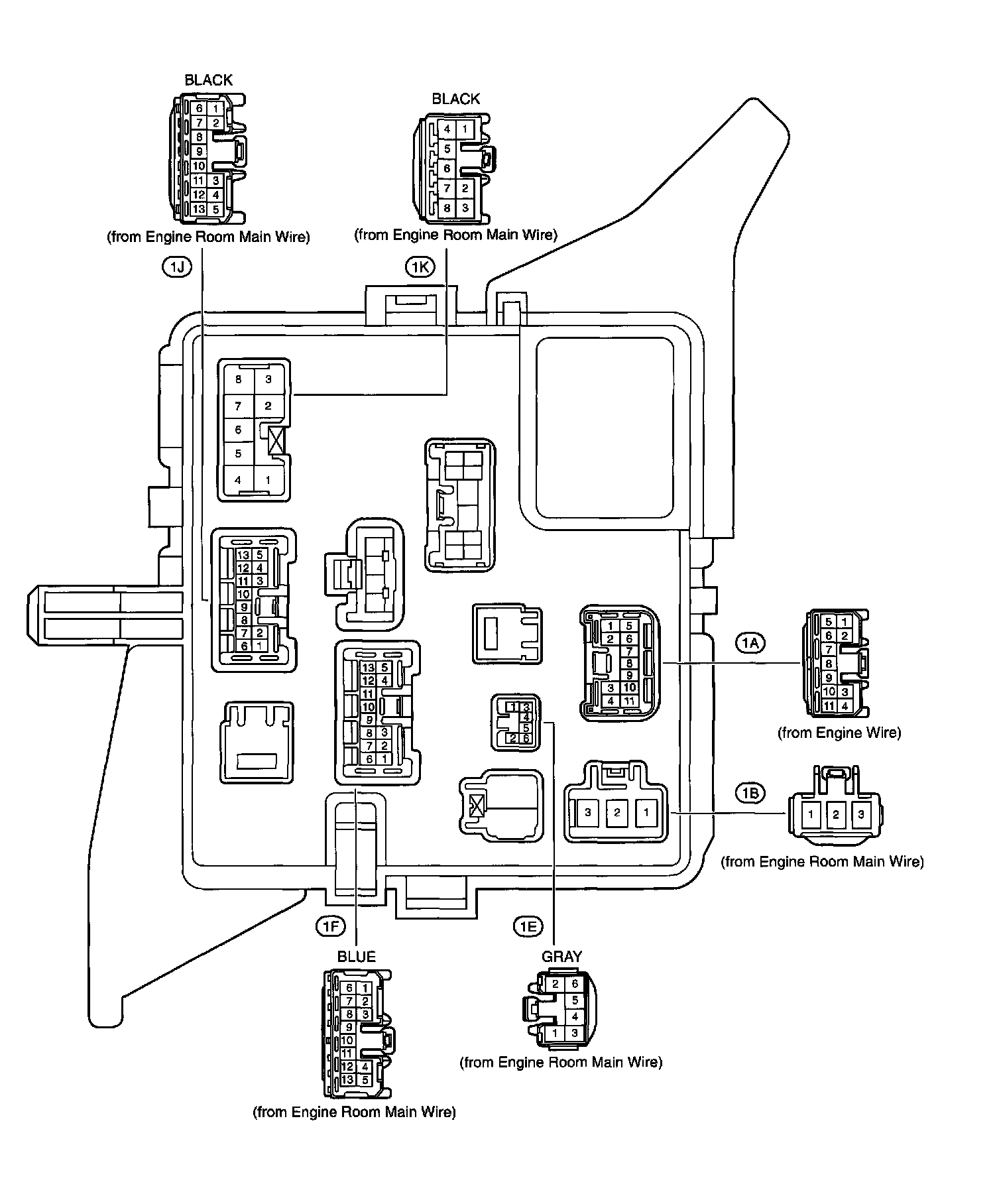

Engine Room J/B - Engine Compartment Left:

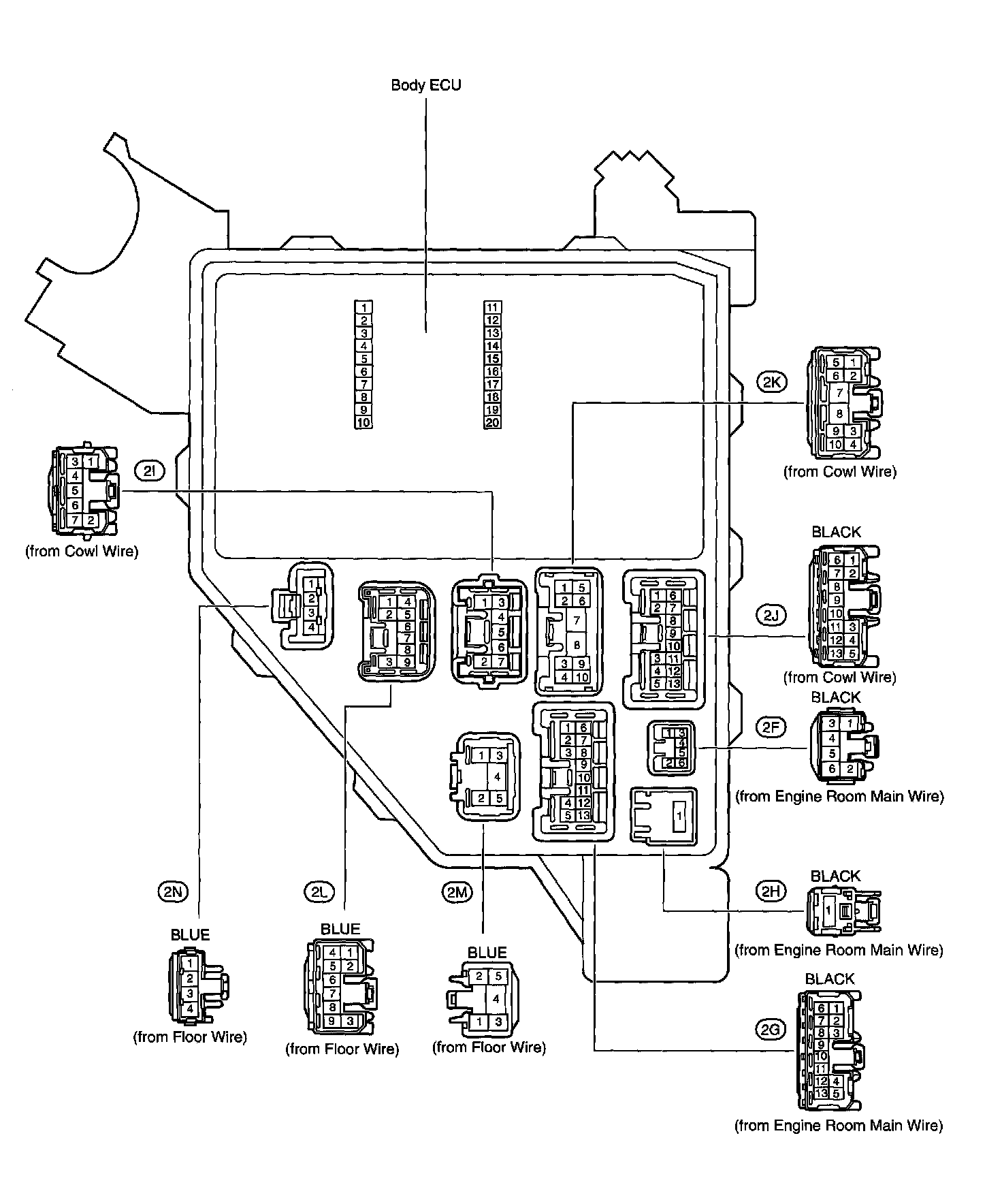

Instrument Panel J/B - Cowl Side Panel LH:
Instrument Panel J/B - Cowl Side Panel LH:
