Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Cylinder Head Assembly
Cylinder Head Assembly

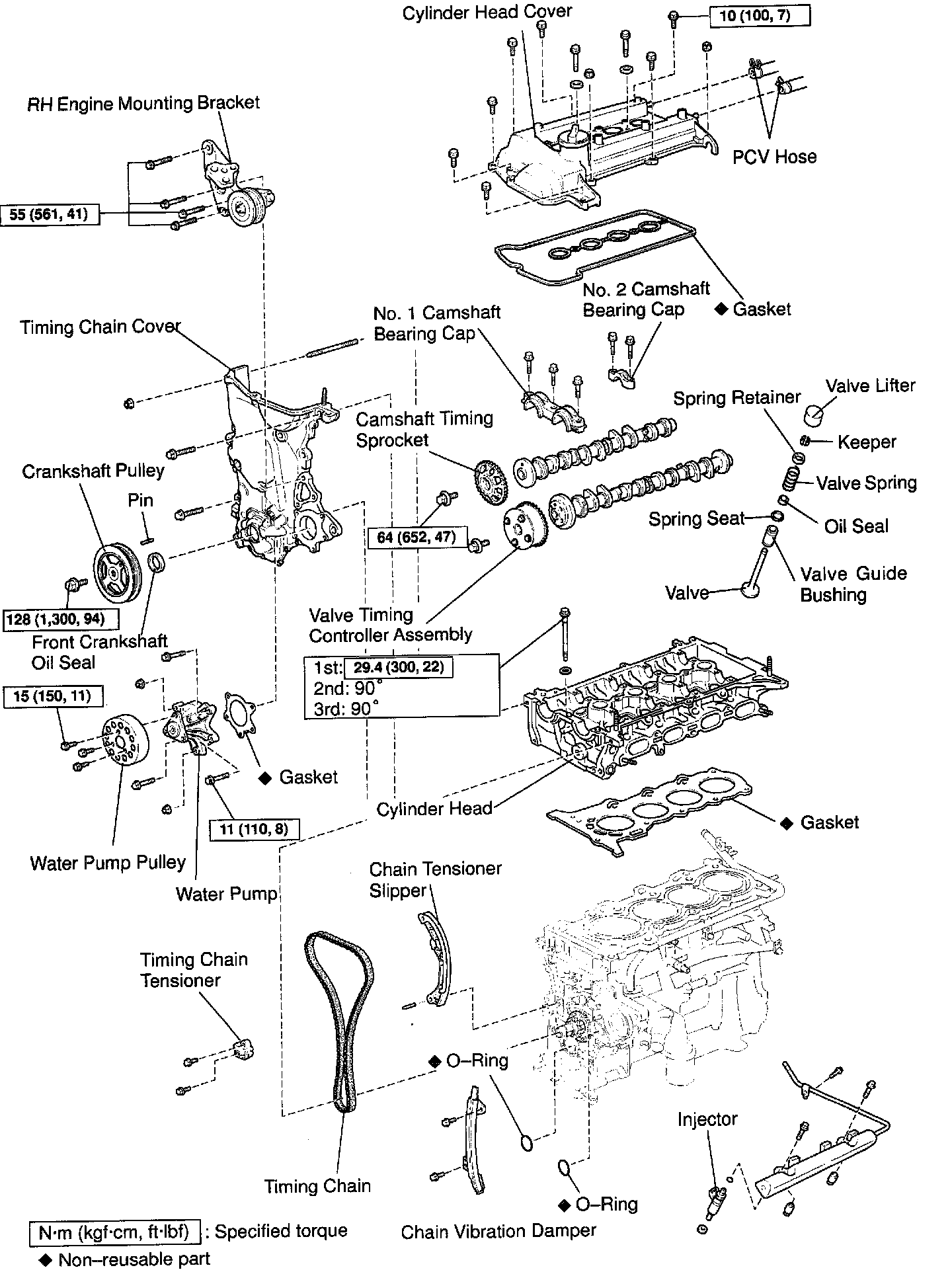

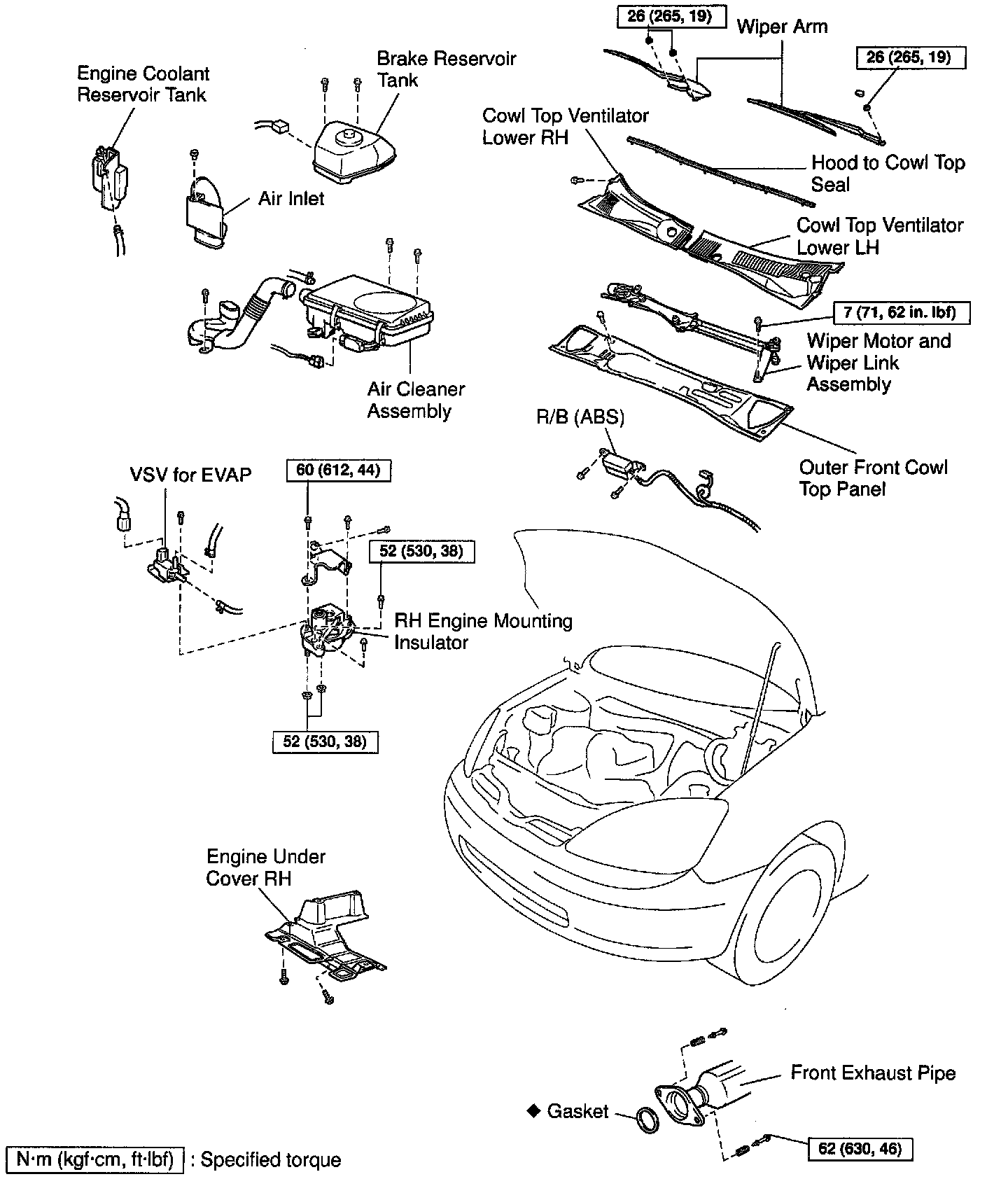

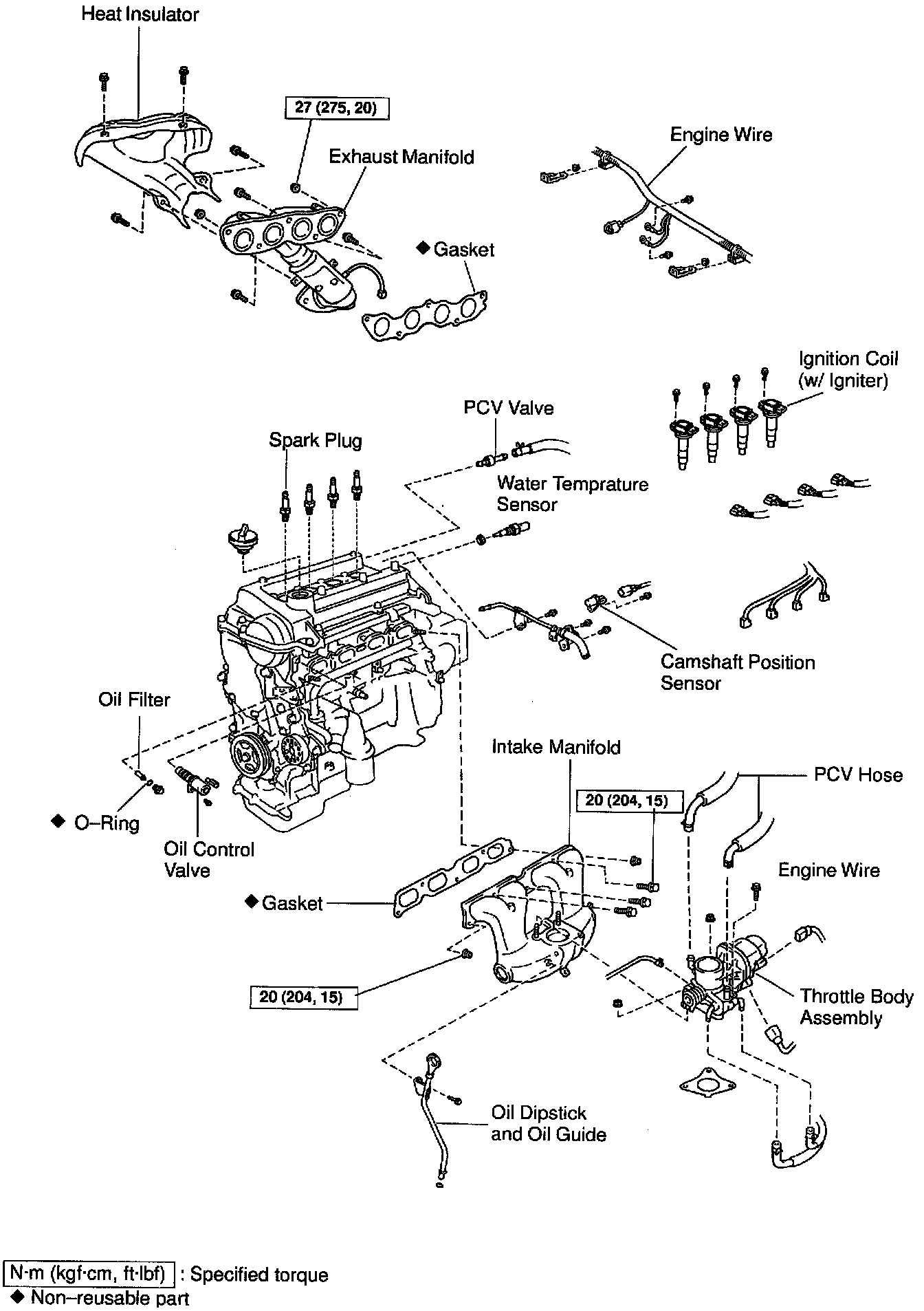

CYLINDER HEAD REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
