Disassembly and Reassembly

DISASSEMBLY




1. REMOVE CONTROL KNOBS
a. Pull out the 5 control knobs.
b. Remove the 3 nuts.

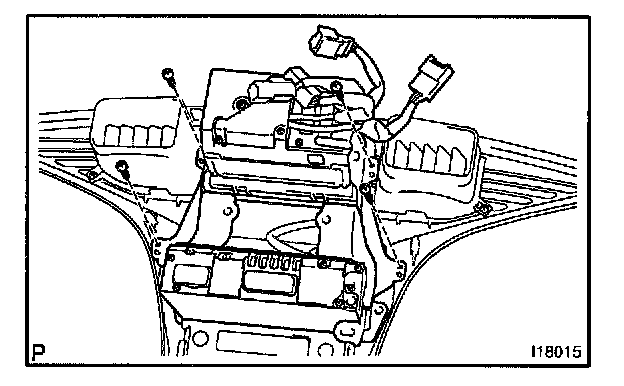

2. REMOVE MULTI DISPLAY & RADIO RECEIVER ASSEMBLY
Remove the 4 screws and multi display & radio receiver assembly.

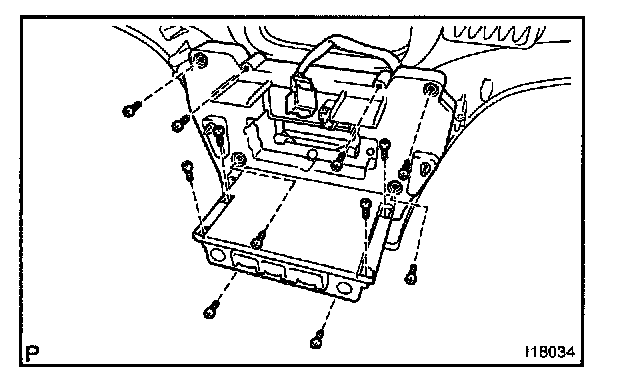

3. REMOVE A/C AMPLIFIER




a. Remove the 12 screws and cover.

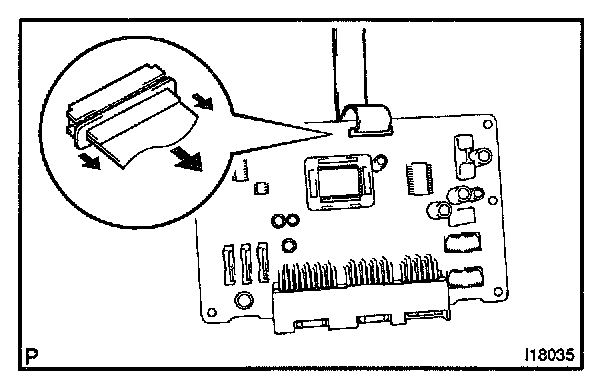

b. Unlock the connector lock and pull out the flat harness from center cluster module.

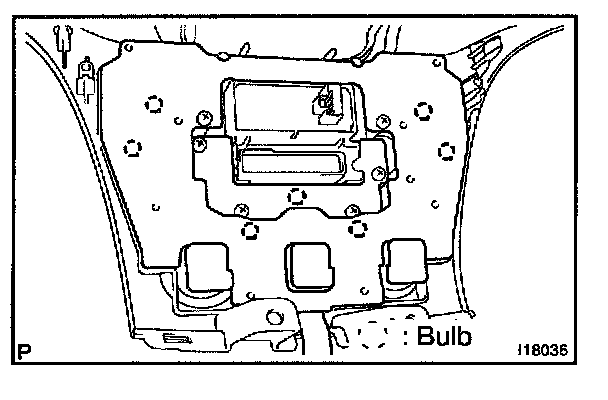

4. REMOVE BULBS
Using a screwdriver, turn the bulb to the left and pull out the bulb.

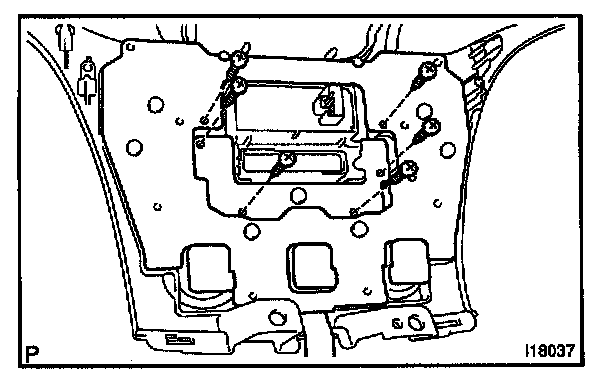

5. REMOVE CLUSTER MODULE CIRCUIT
Remove the 6 screws and center cluster module.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
