Drive Motor Control Module: Locations

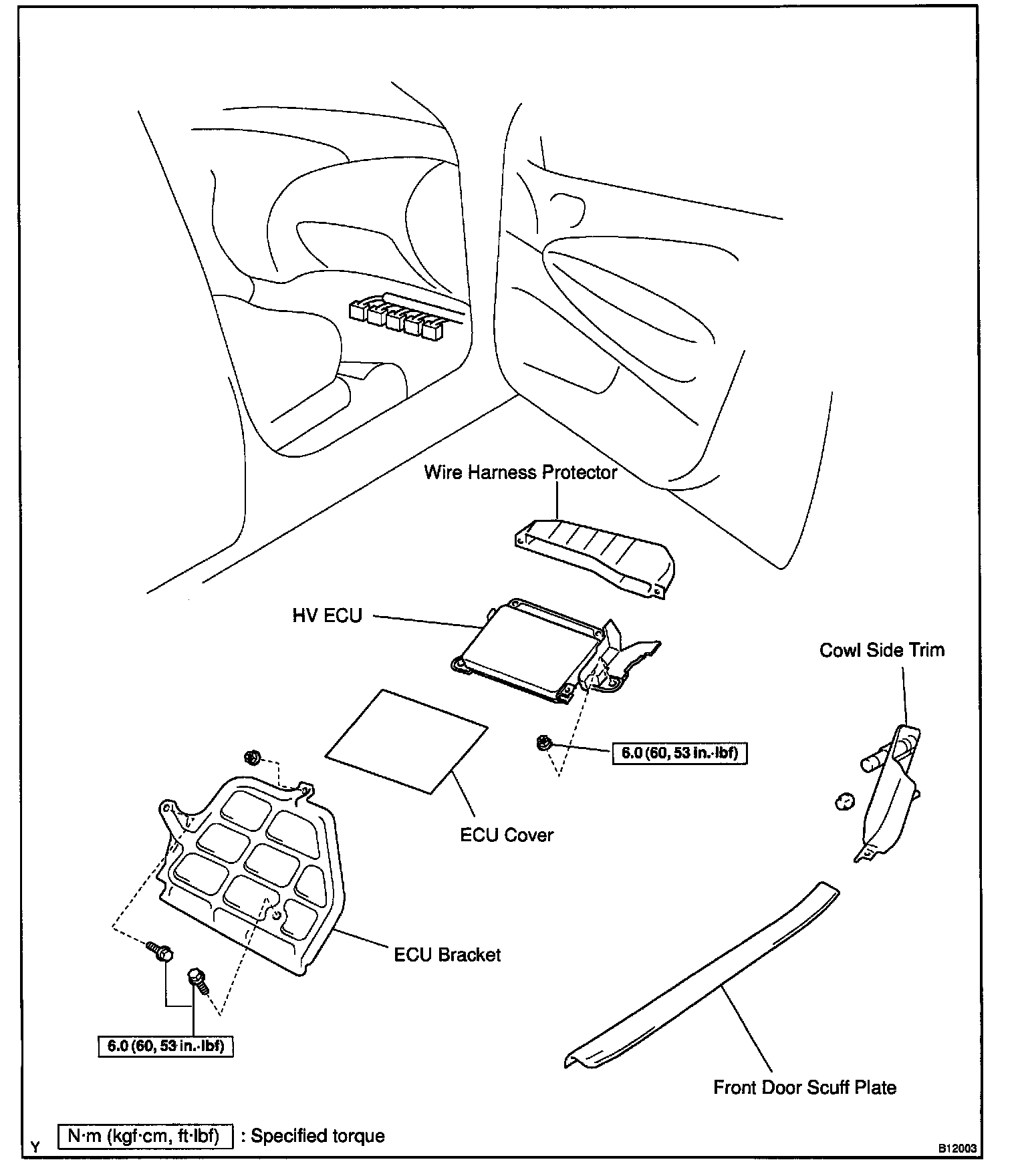

HV ECU:



Instrument Panel:



Body:



Ga - Wi:



AB - Lu:

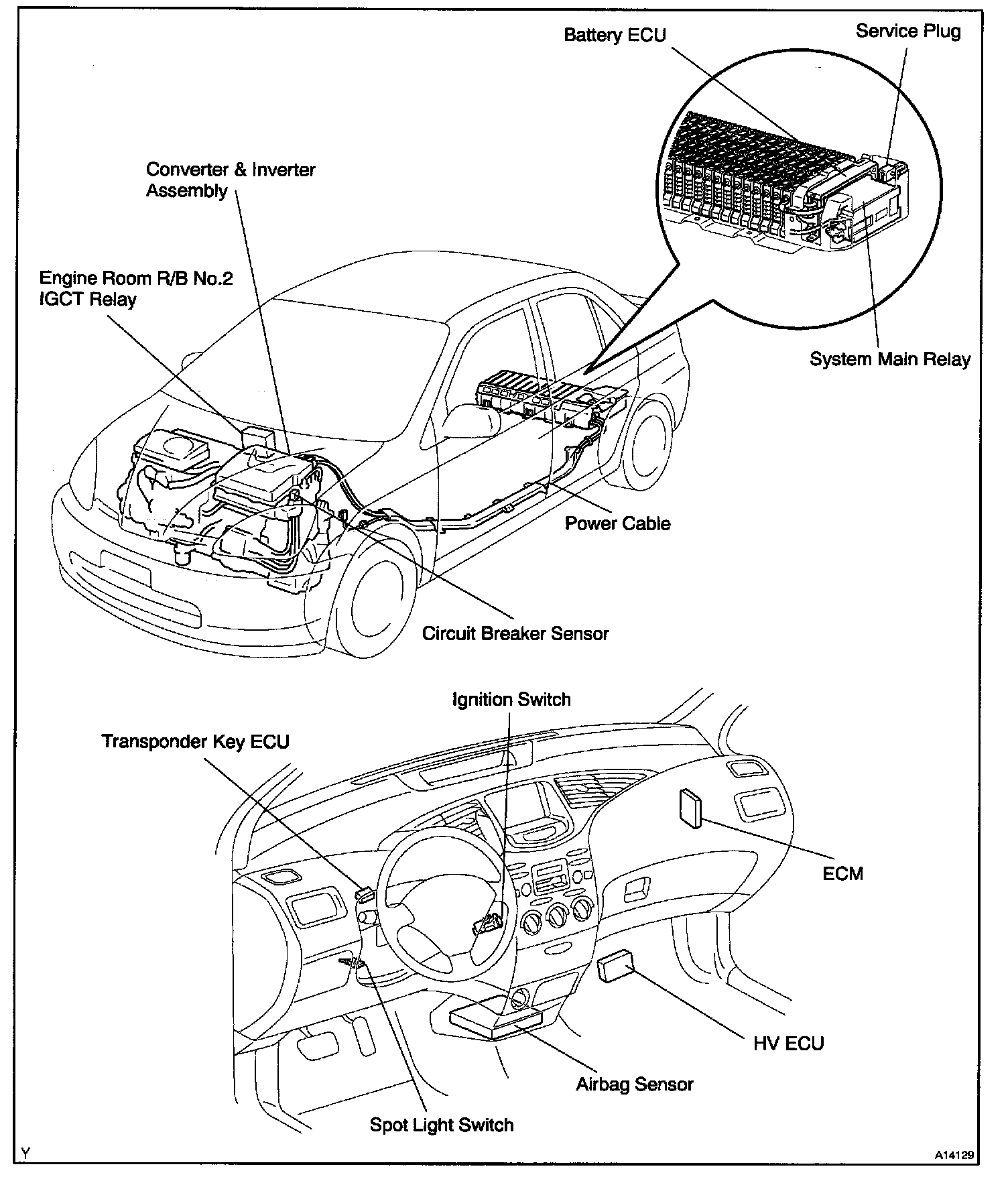

Hybrid Vehicle Control System:

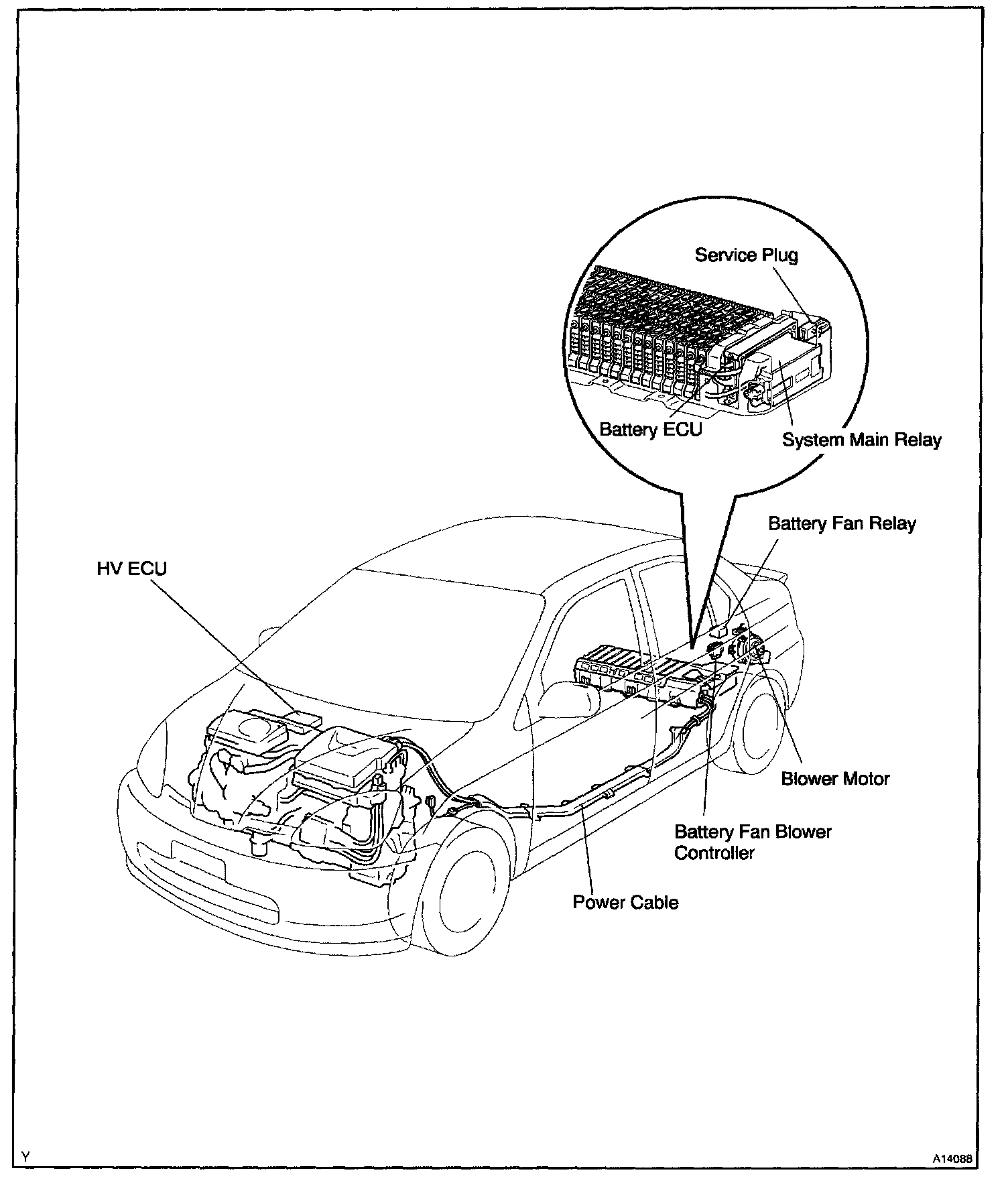

HV Battery Control System:

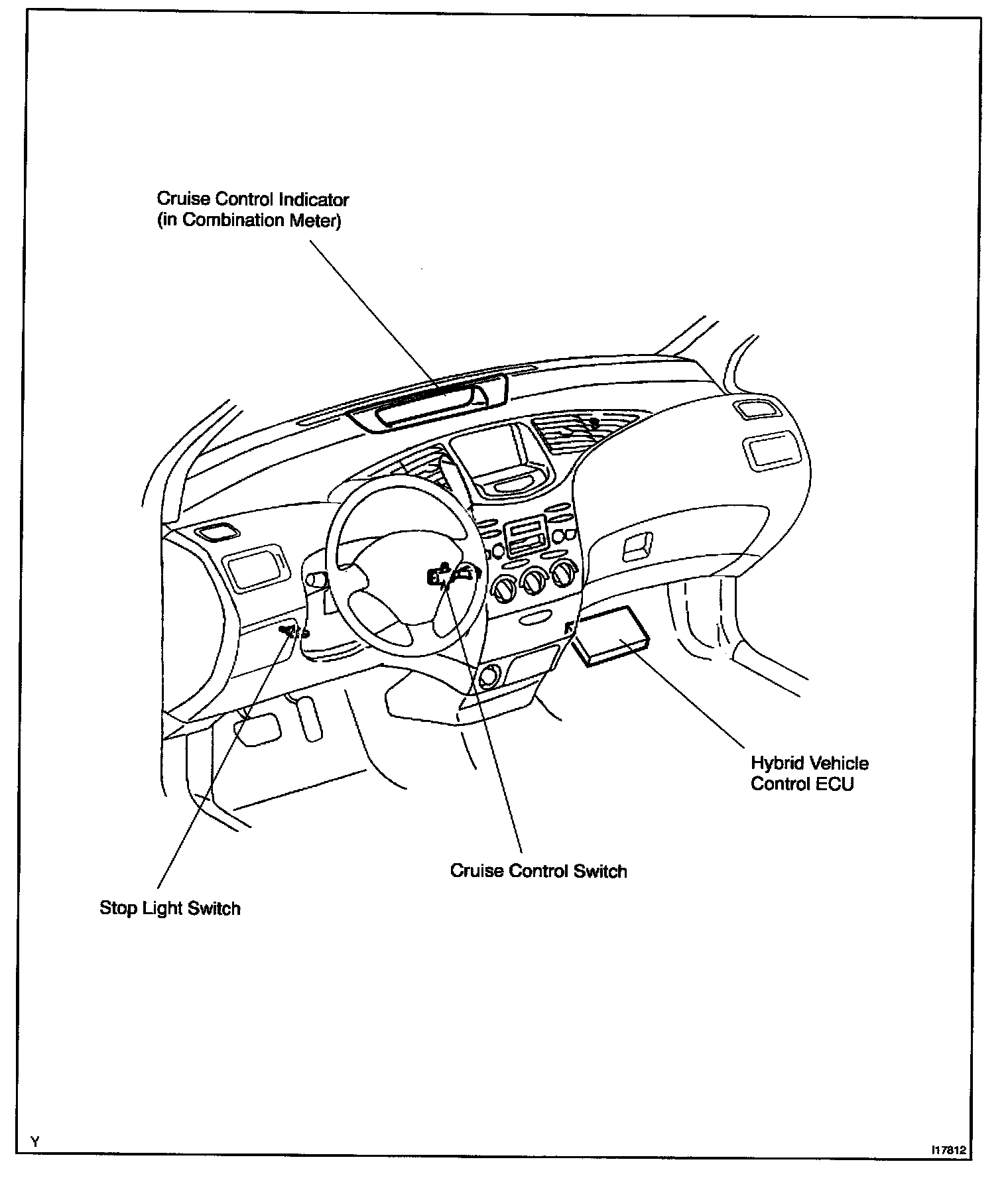

Cruise Control System:
