Drive Motor Control Module: Testing and Inspection

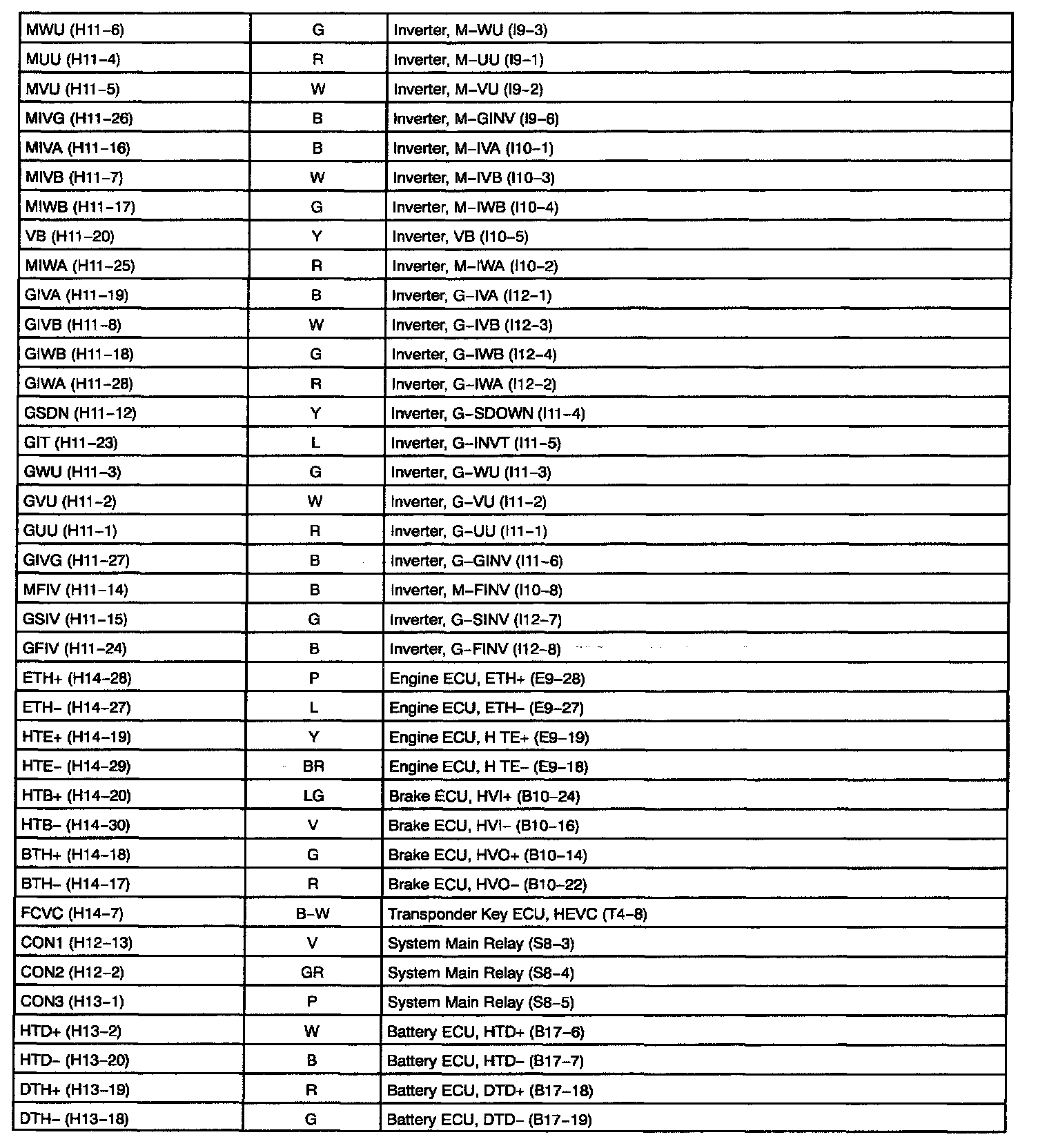

Terminals Of ECU/Pinouts Part 1:

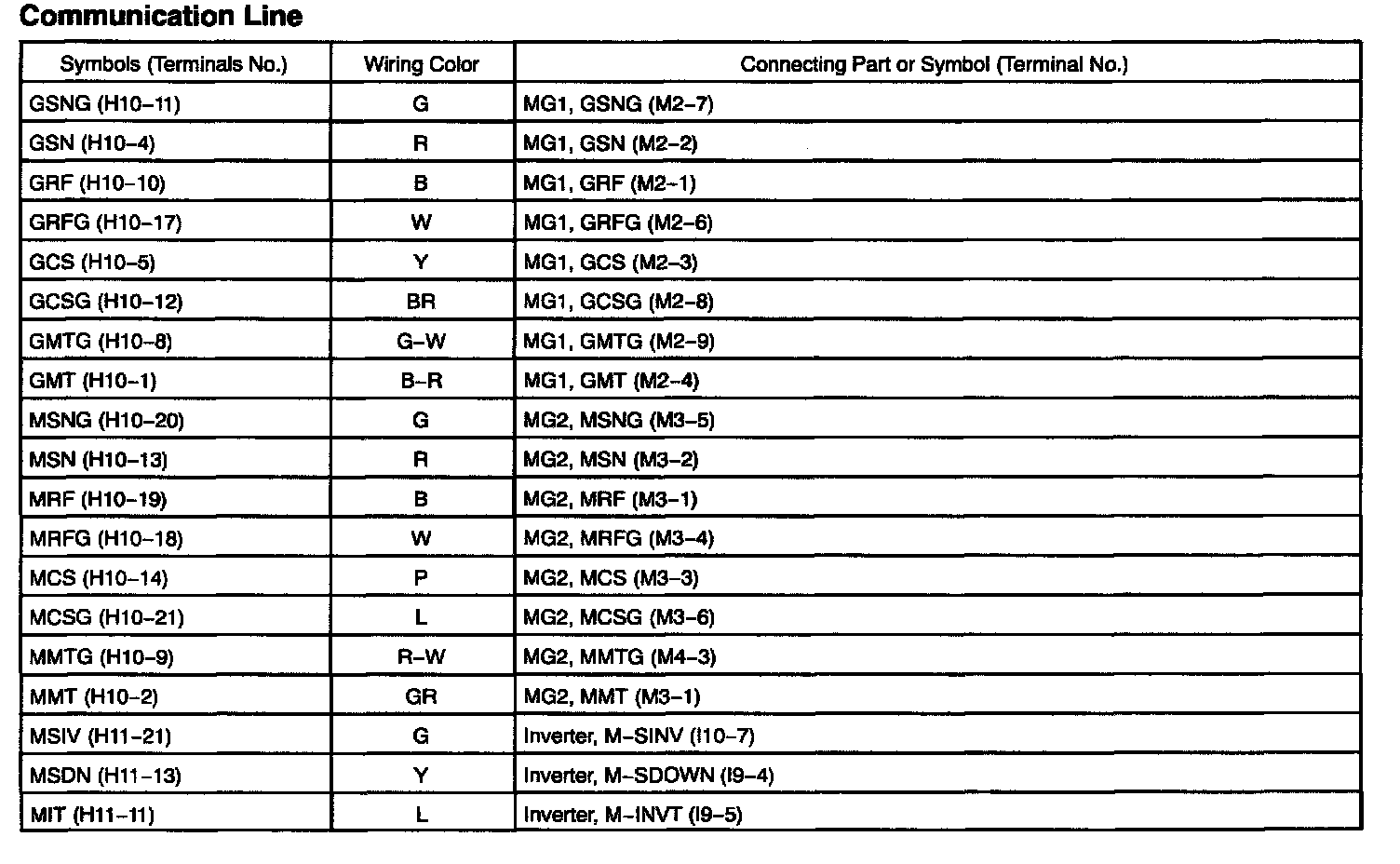

Terminals Of ECU/Pinouts Part 2:

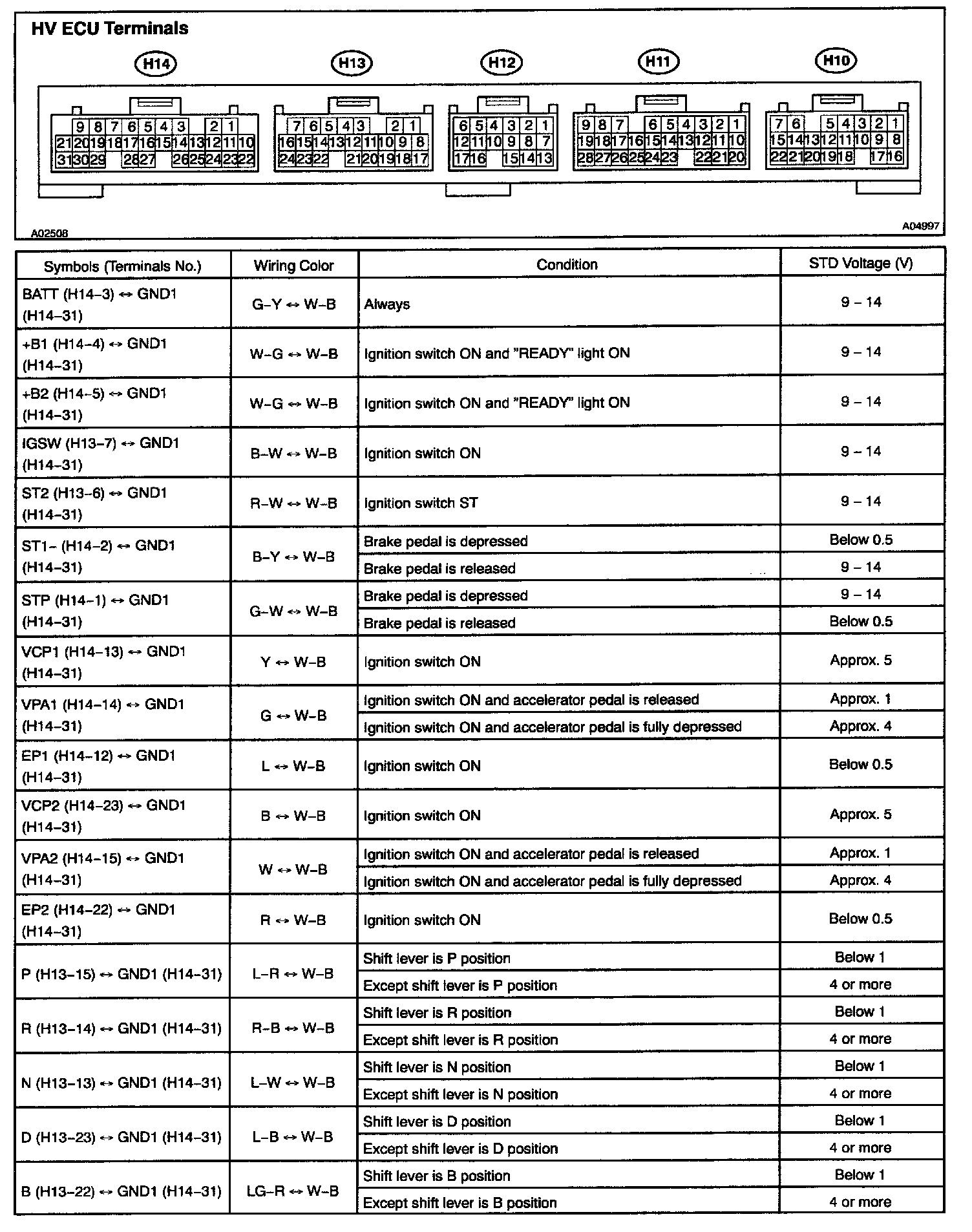

Part 1:

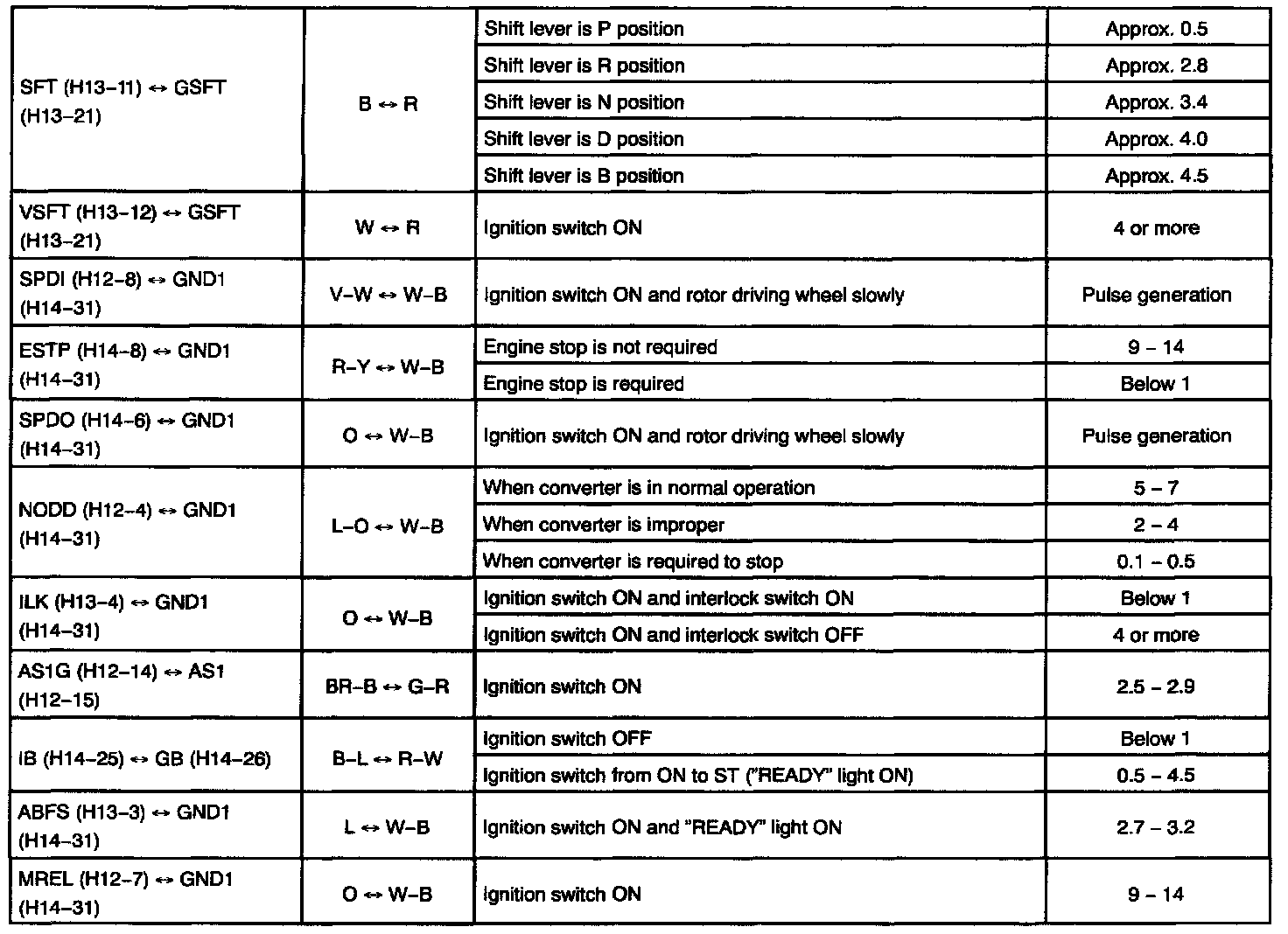

Part 2:
