Component Tests and General Diagnostics

FUEL GAUGE DIAGNOSIS CHECK









a. Fuel emergency display

HINT: If FR voltage input to the fuel sender gauge is abnormal (4.8 V or more, or 0.06 V or less) due to any error, an emergency will be displayed.

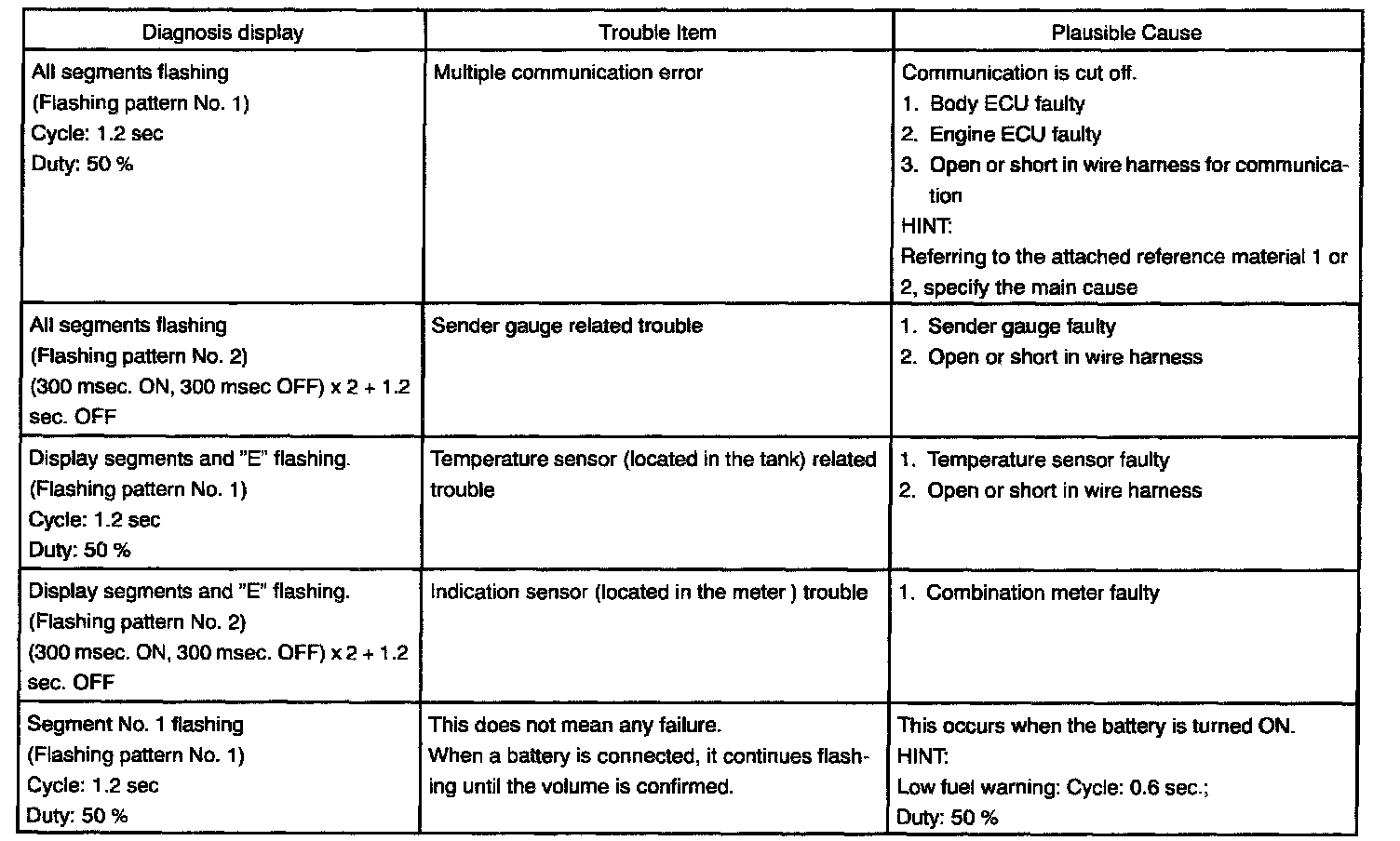

b. Display:

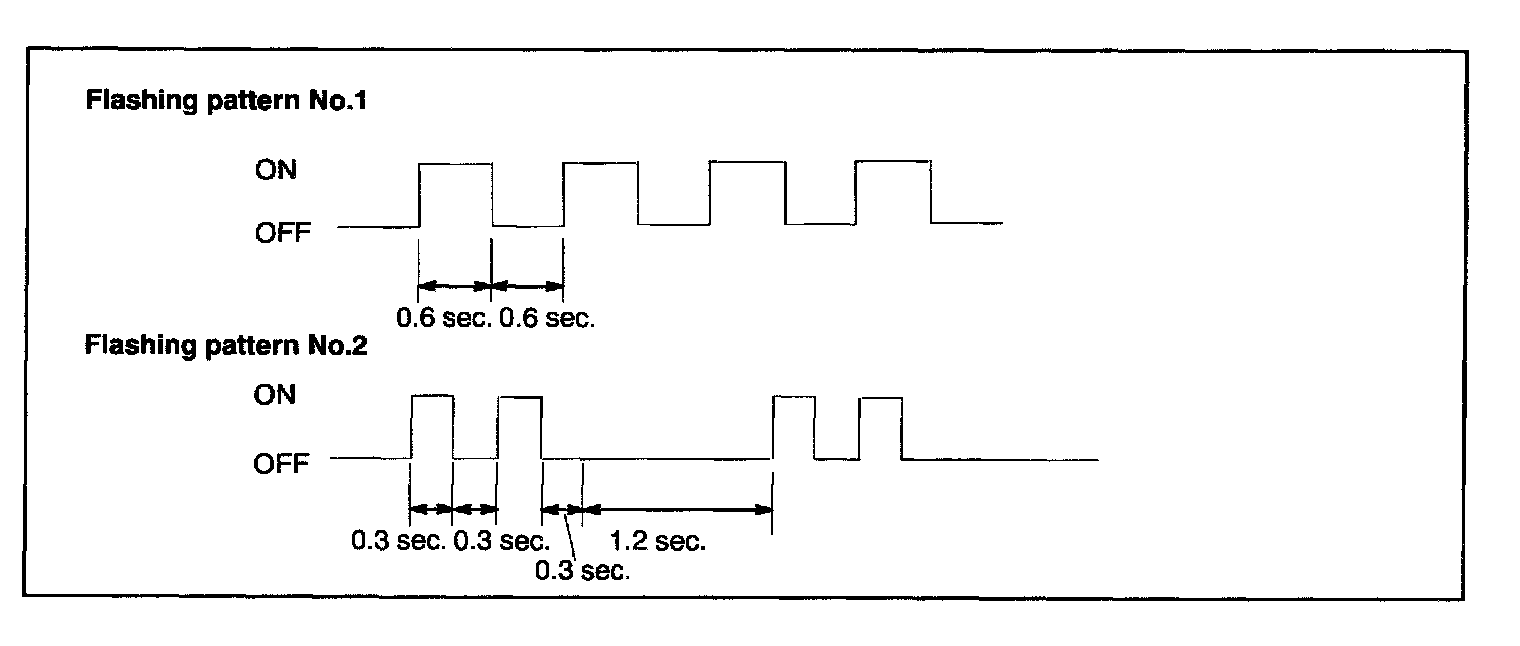

Immediately after the ignition switch is ON. all of the segments flash.
