Accelerator Pedal Position Sensor: Testing and Inspection

ON-VEHICLE INSPECTION







INSPECT ACCELERATOR PEDAL POSITION SENSOR

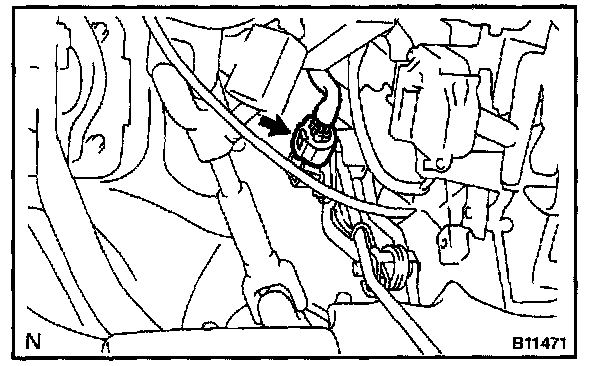

a. Disconnect the accelerator pedal position sensor connector.

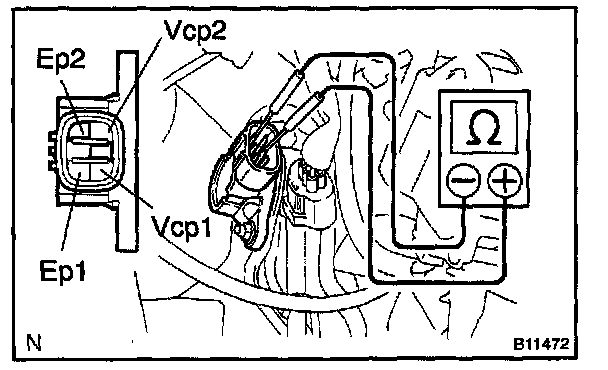

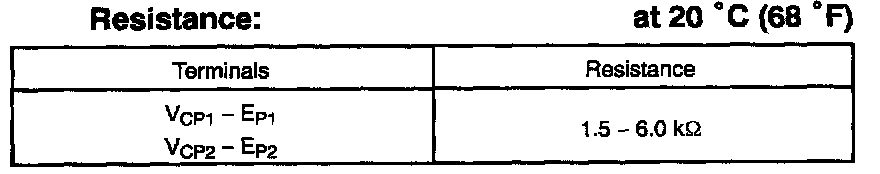

b. Using an ohmmeter, measure the resistance between each terminals.
