Multiple Junction Connector
Multiple Junction Connector

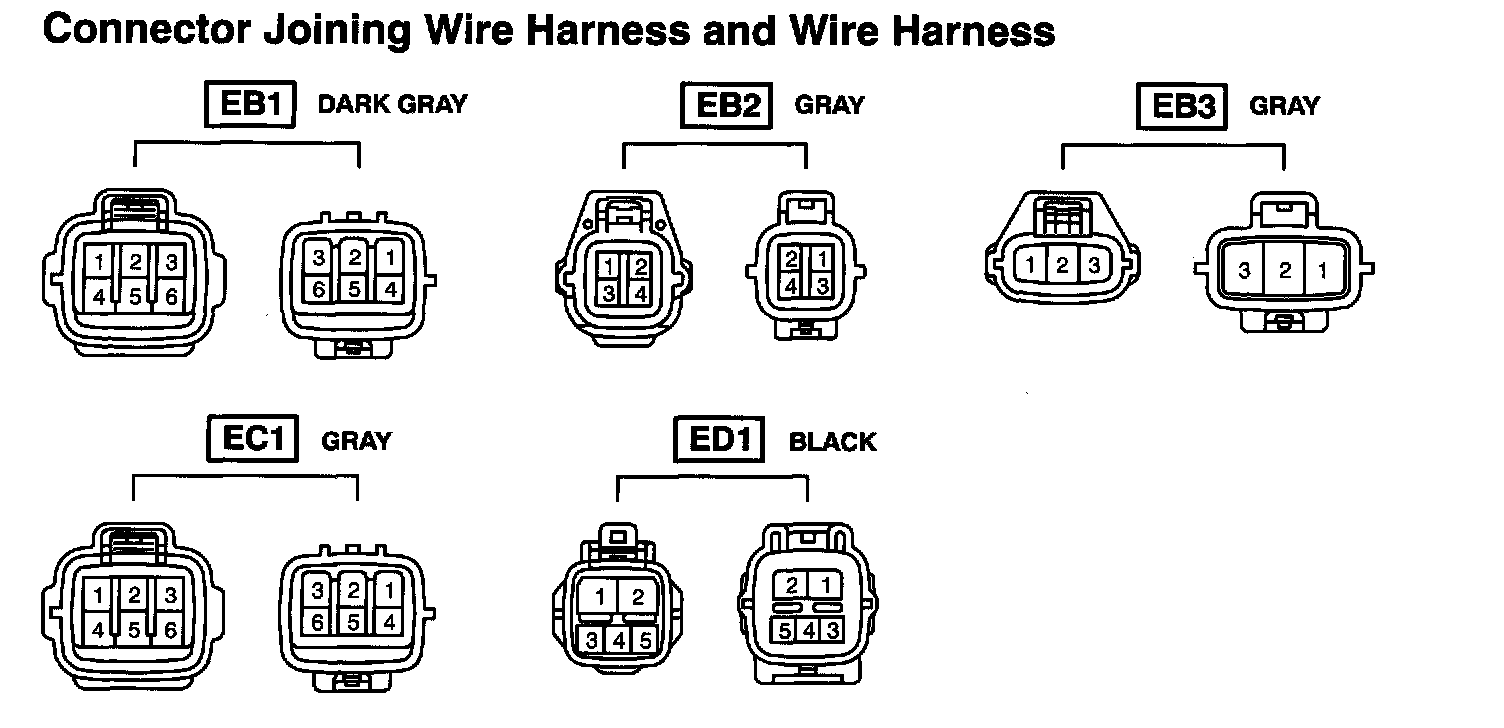

EB1 - ED1:
IA1 - IF4:
IG1 - IL3:

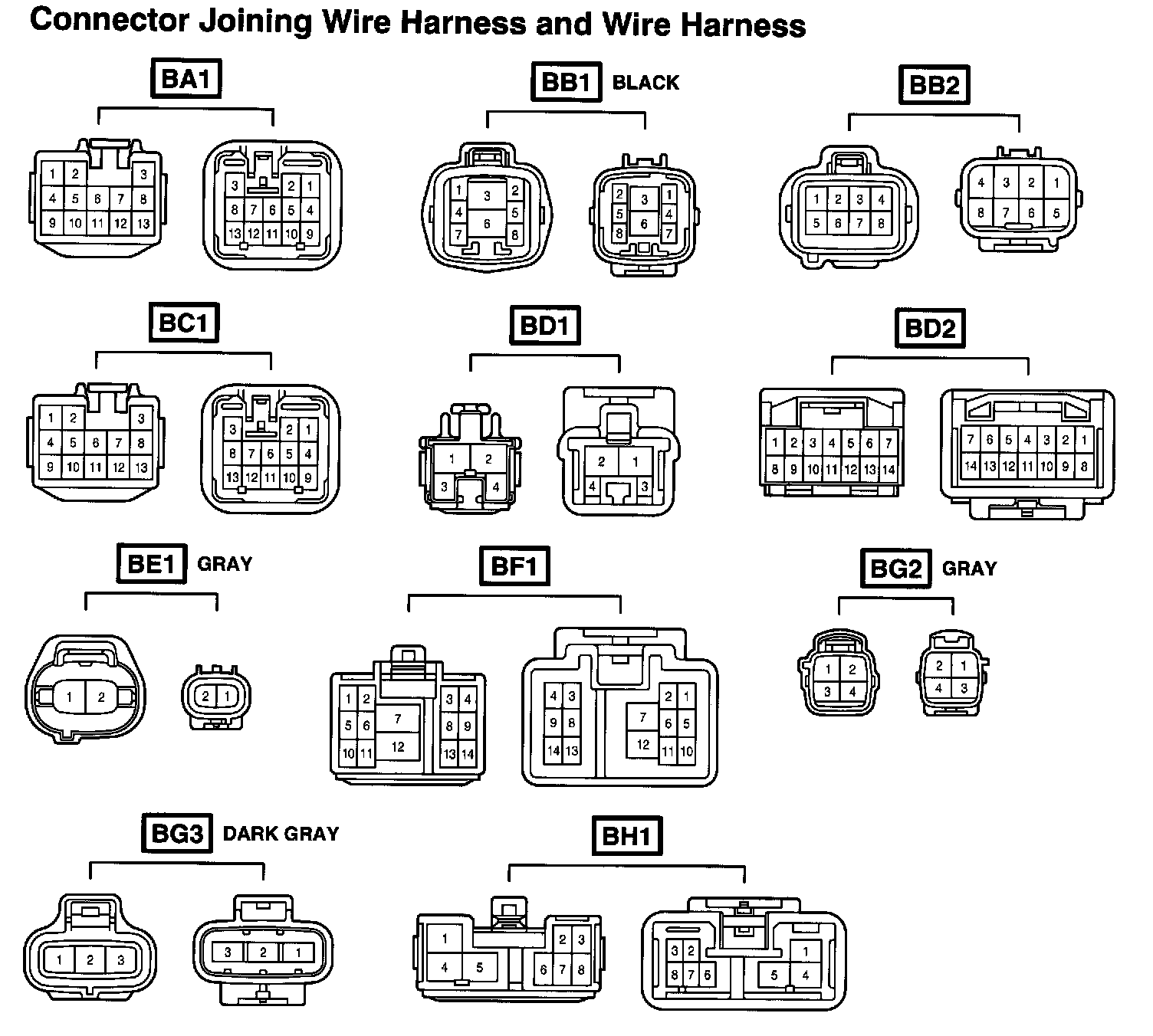

BA1 - BH1:

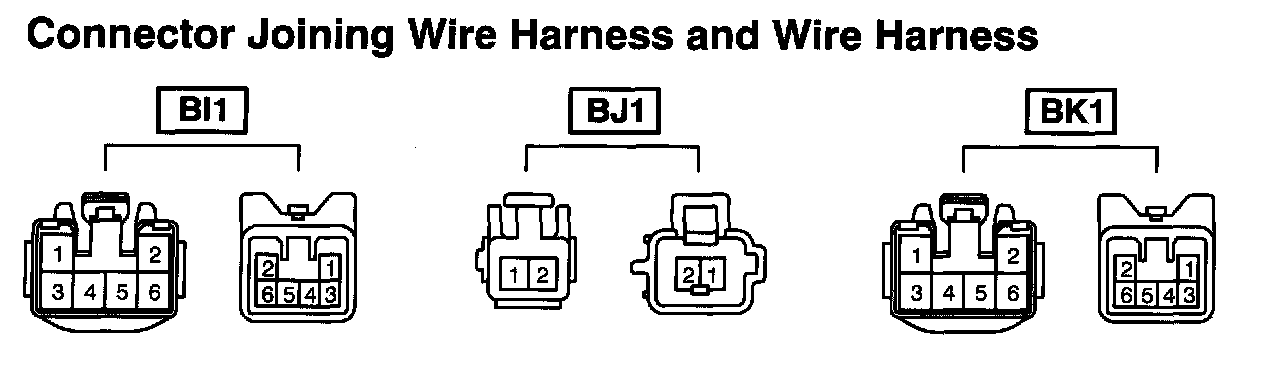

BI1 - BK1:
