Compressor Circuit

CIRCUIT DESCRIPTION

The integration control and panel outputs the magnetic clutch ON signal from terminal AC1 to the ECM. When the ECM receives this signal, it sends a signal from terminal ACMG and switches the A/C magnetic clutch relay ON, thus turning on the A/C magnetic clutch.

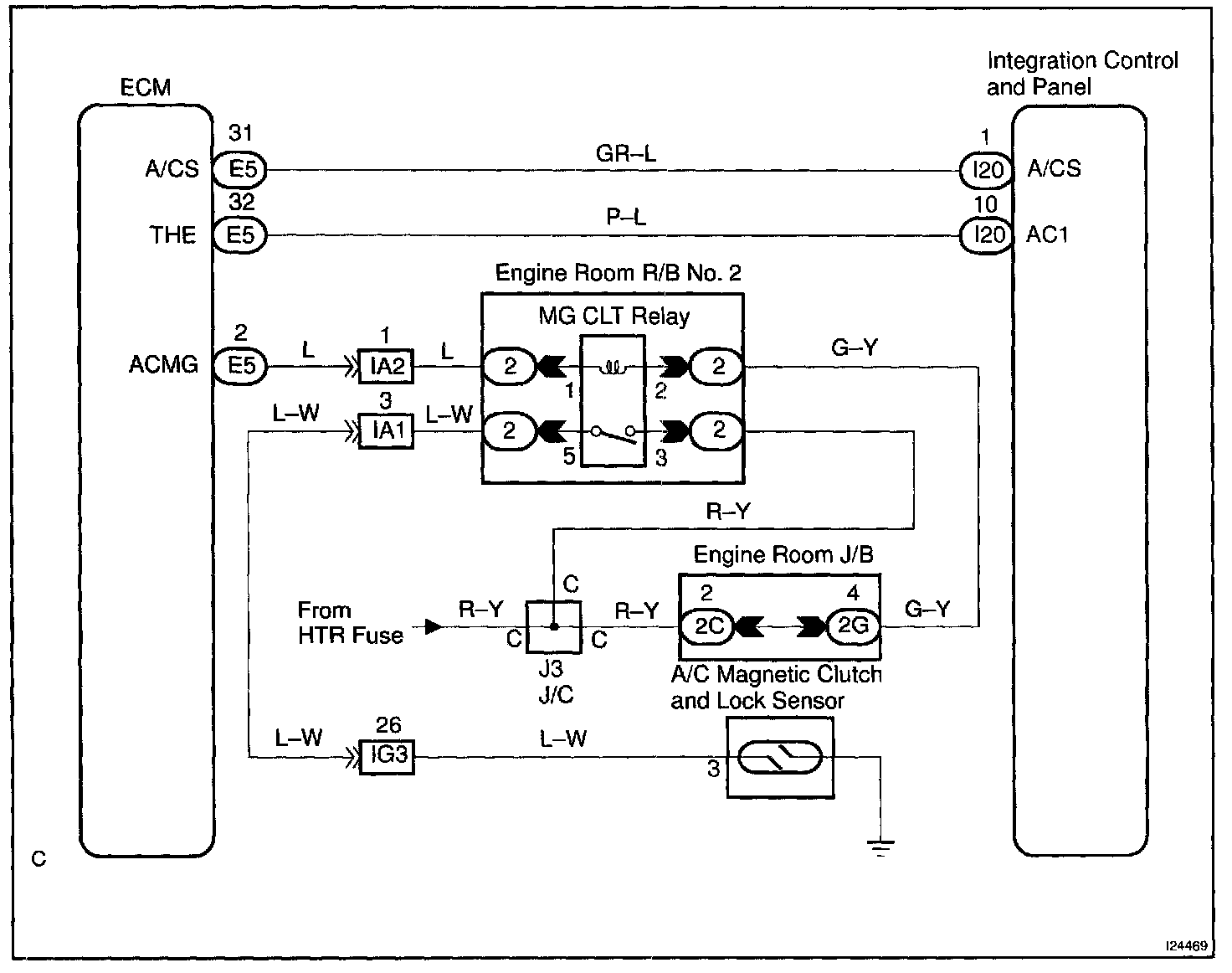

Wiring Diagram:

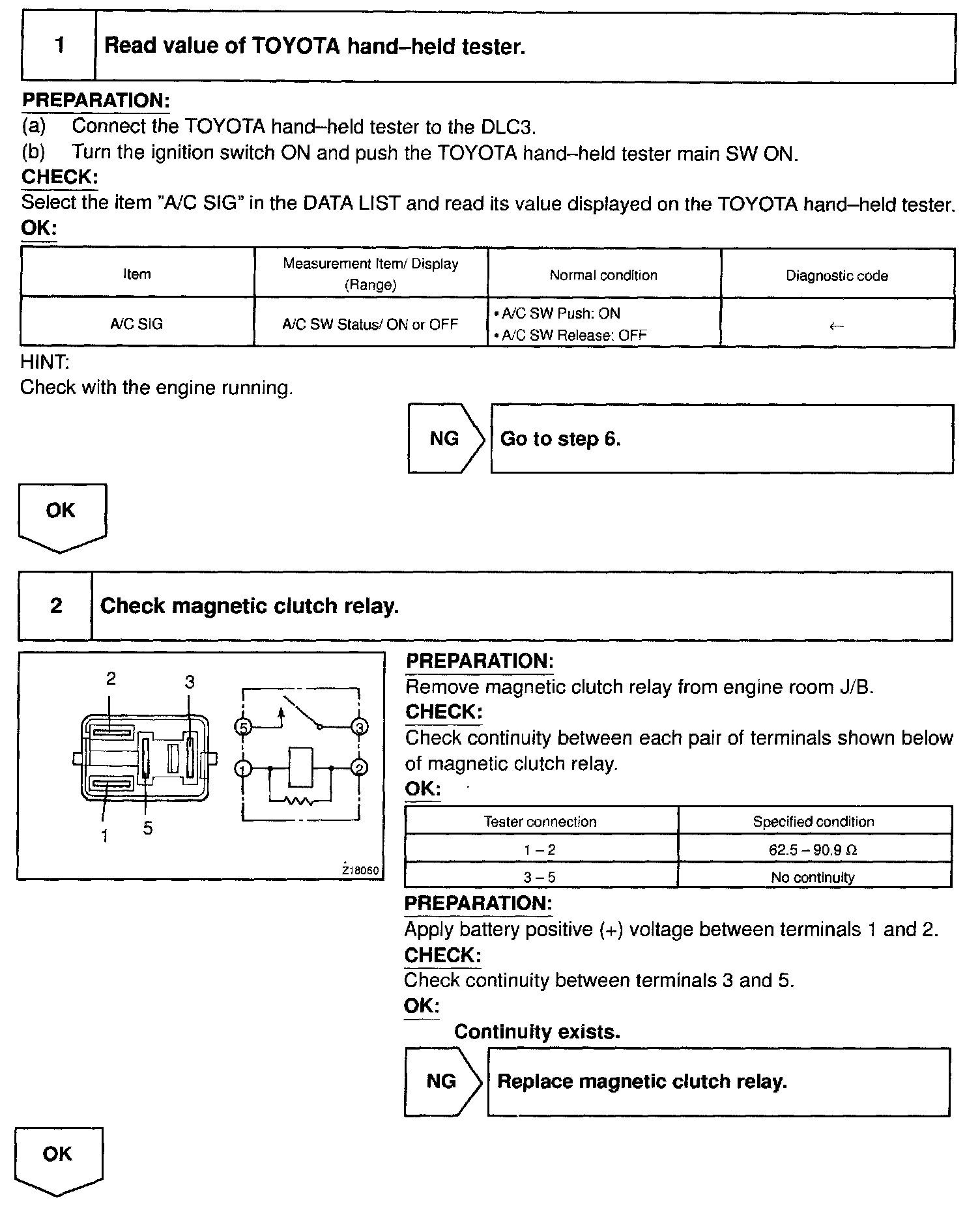

Step 1 - 2:

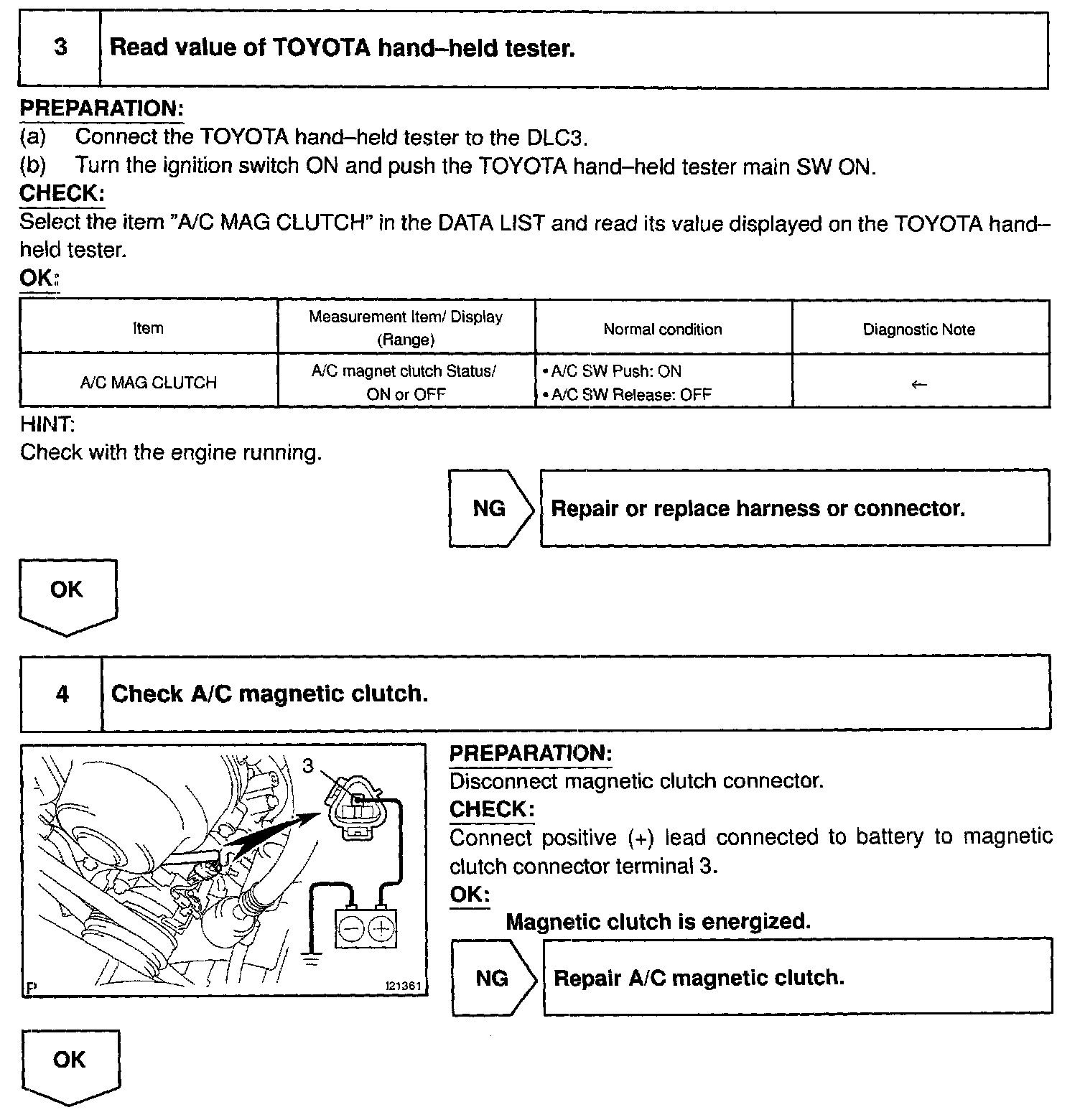

Step 3 - 4:

Step 5 - 6:

INSPECTION PROCEDURE
