Removal and Installation

Air-Conditioner Control Assembly (Center Cluster Integration):

REMOVAL




REMOVE CENTER CLUSTER INTEGRATION PANEL

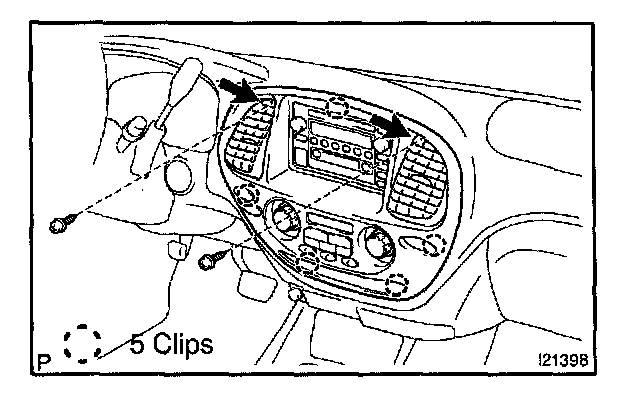

a. Remove the 2 screws.
b. Remove integration control panel by pulling the portions indicated by arrows in the illustration.
c. Disconnect the connector.

INSTALLATION
Installation is in the reverse order of removal.
