Removal and Installation

Rear A/C Control Assembly (for Rear A/C):

REMOVAL




REMOVE HEATER CONTROL ASSEMBLY

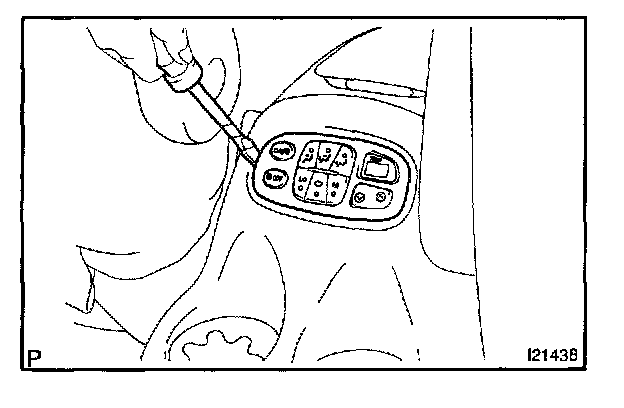

Using a screwdriver, release the 2 claws and pull out the control switch assembly, then disconnect the connector.

HINT: Tape the screwdriver tip before use.

INSTALLATION
Installation is in the reverse order of removal.
