Air Conditioning Control Assembly
Air Conditioning Control Assembly
INSPECTION
INSPECT BULB

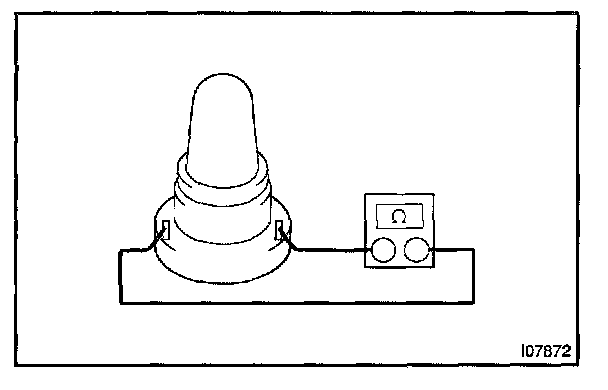

Apply the tester as shown in the illustration to the test for continuity.
If continuity exists, replace the heater control.
If no continuity exists, replace the bulb.
