Pinout Values and Diagnostic Parameters

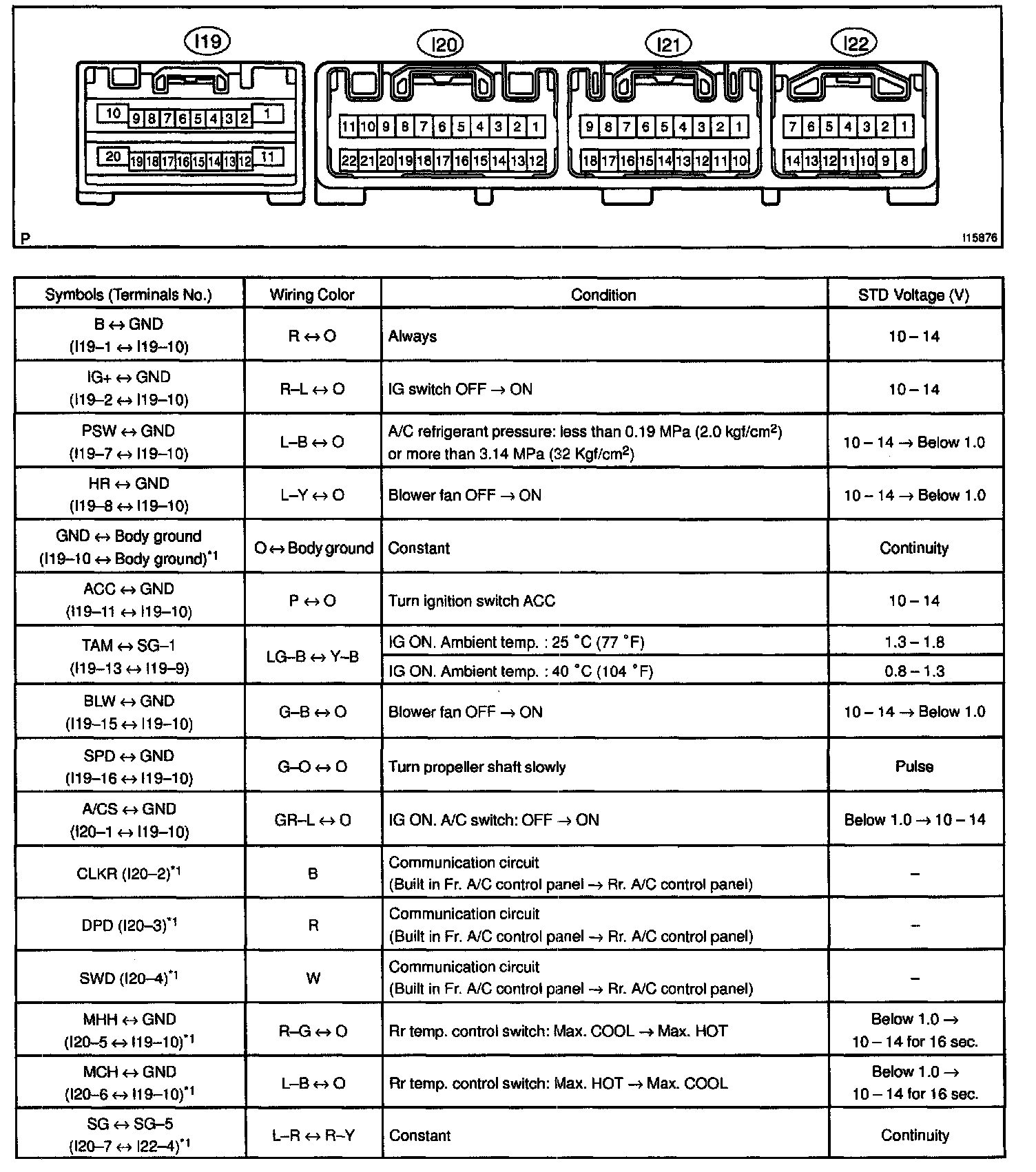

Terminals Of ECM/Pinouts - Integration Control And Panel Part 1:

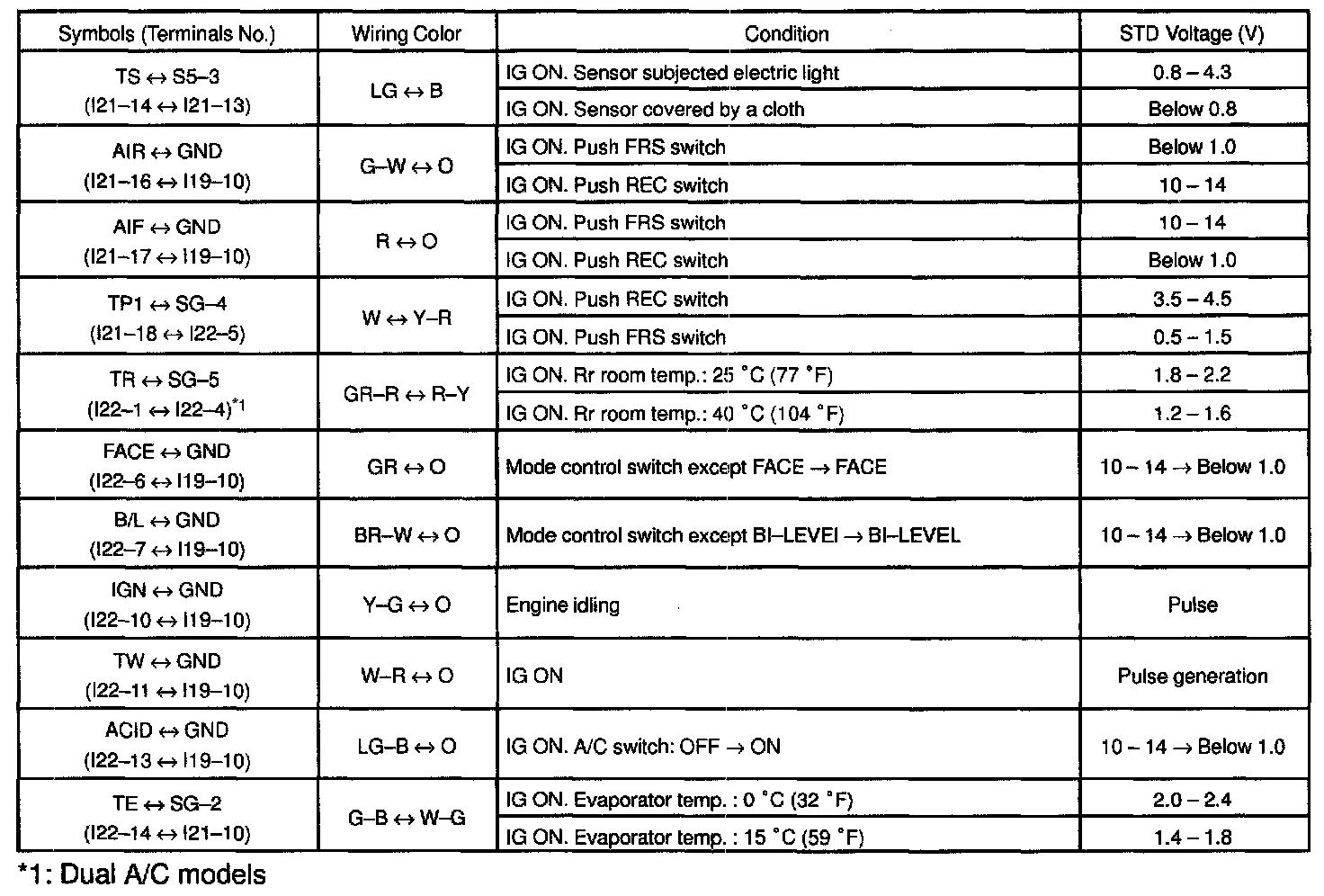

Terminals Of ECM/Pinouts - Integration Control And Panel Part 2:



Terminals Of ECM/Pinouts - Integration Control And Panel Part 3:

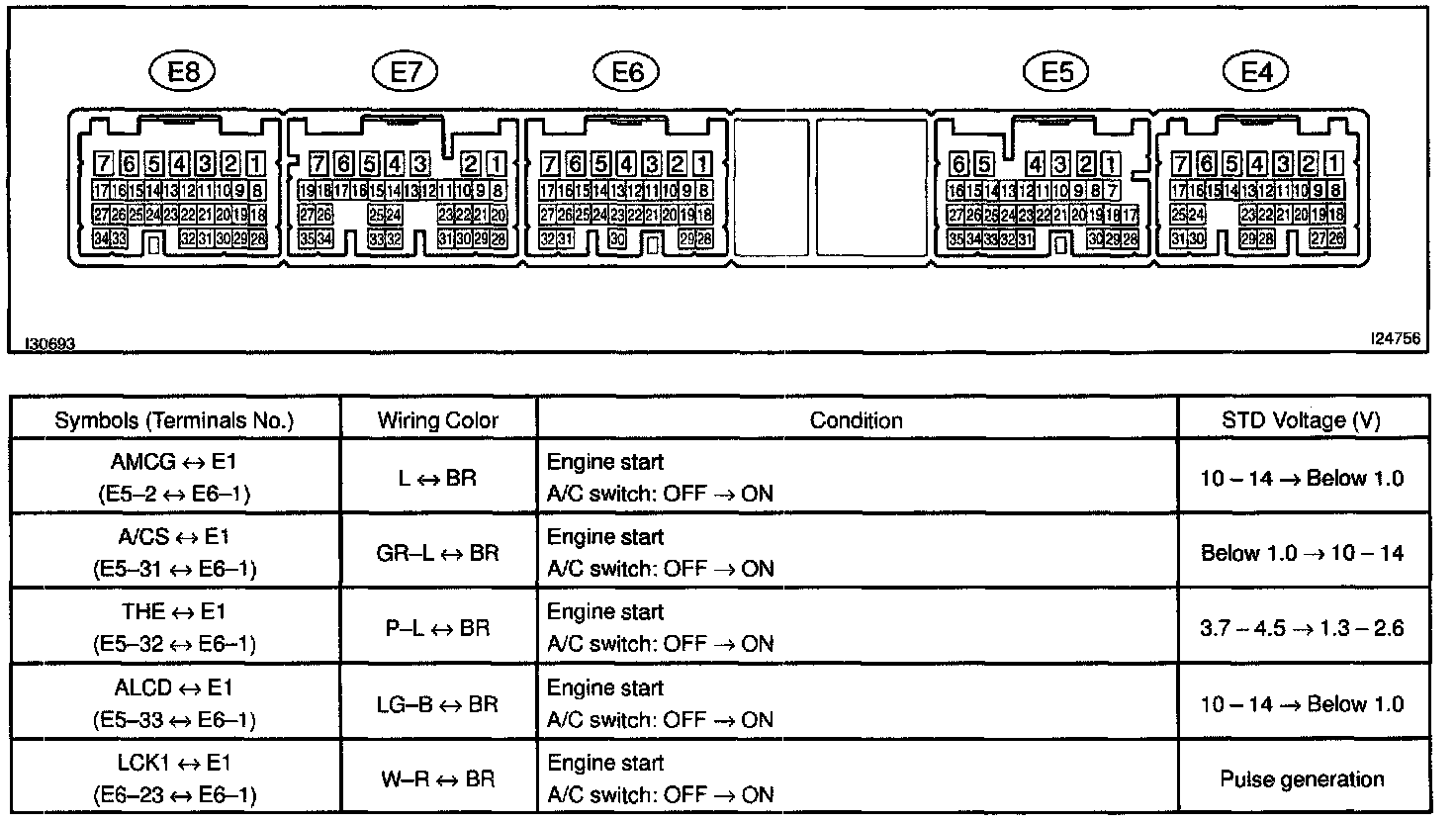

Terminals Of ECM/Pinouts - ECM:
