Locations
>>
Connector Locations
Connector Locations
EB1 - ED1, EA - ED:

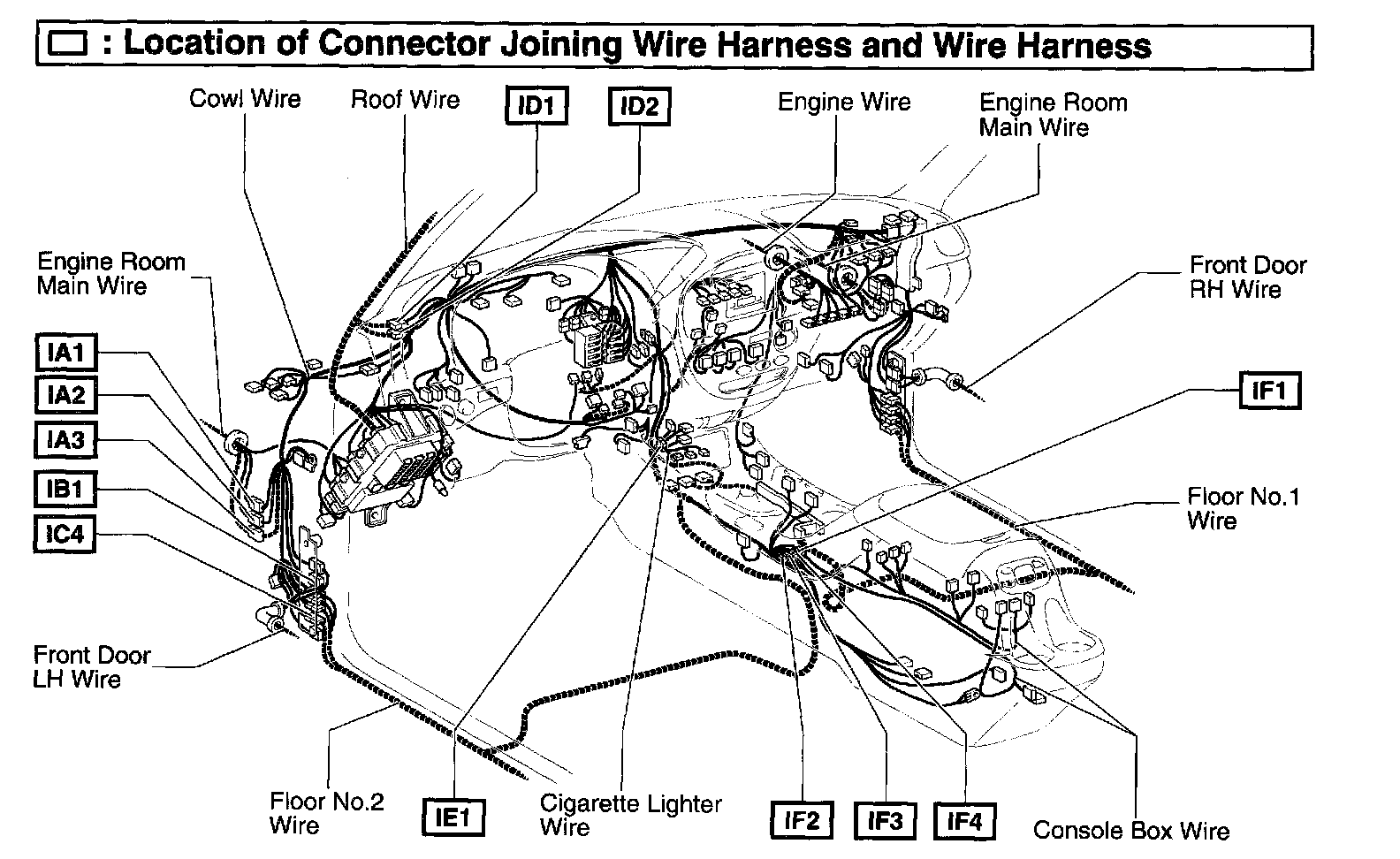

IA1 - IF4:

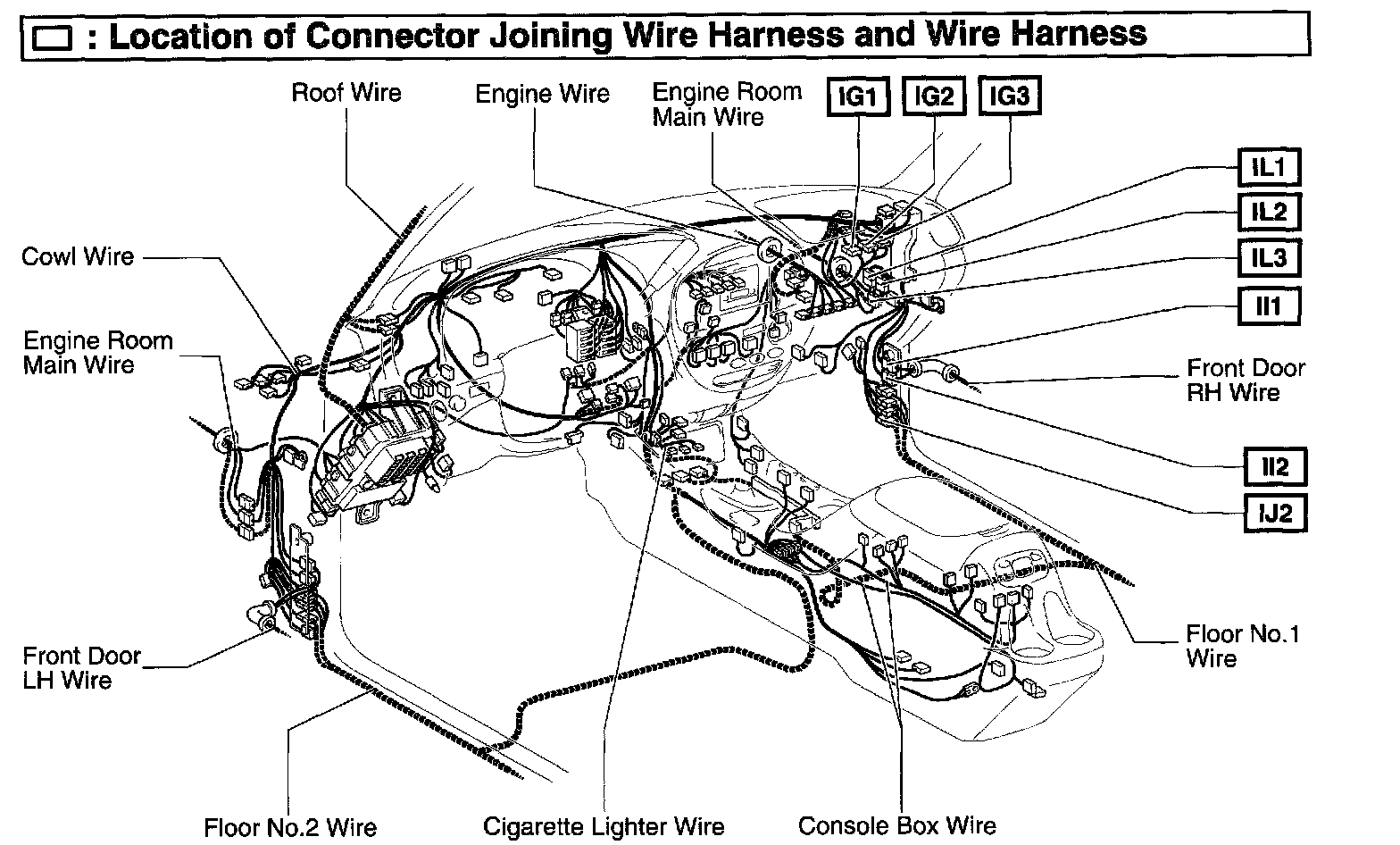

IG1- IL3:

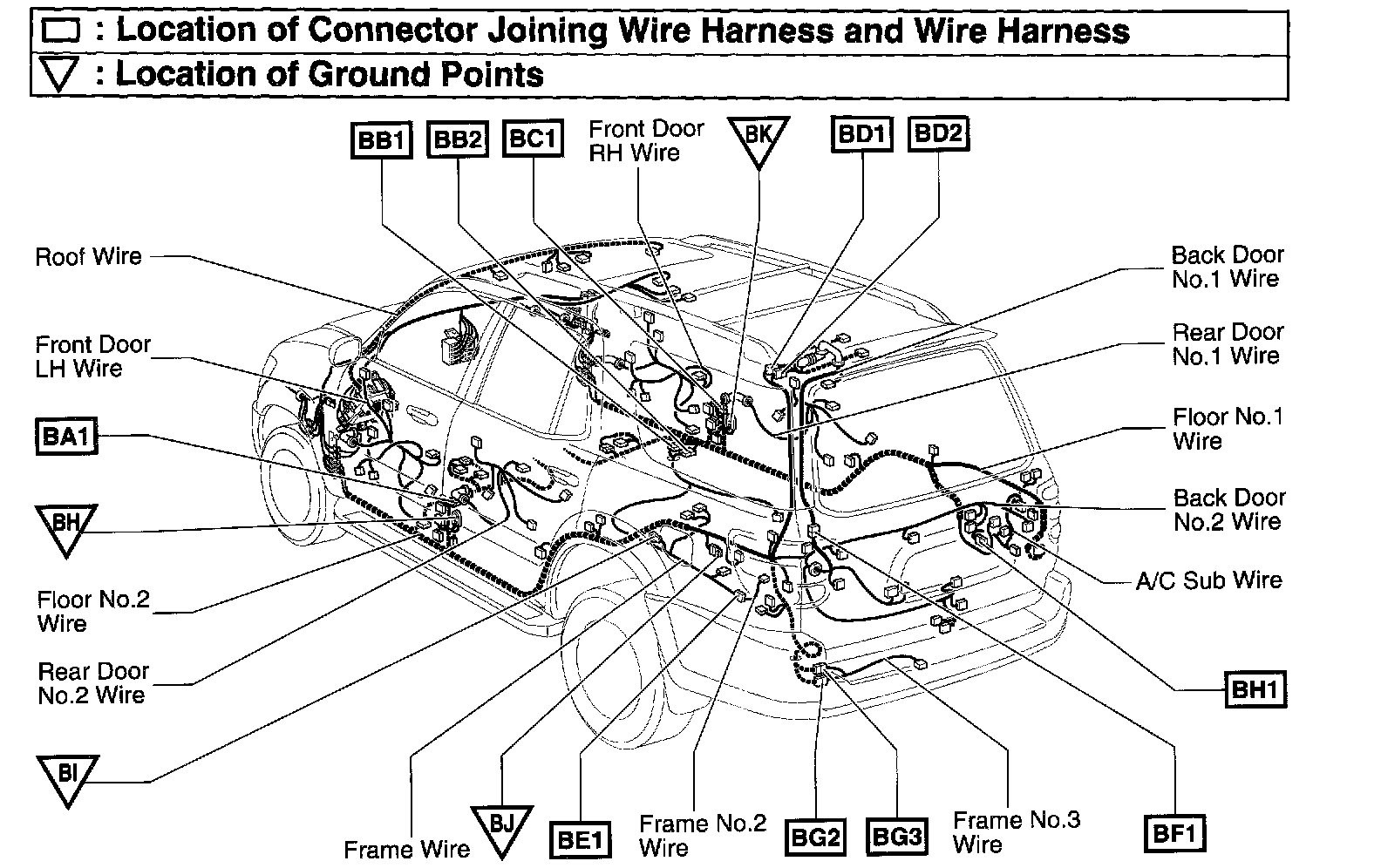

BA1 - BH1, BH - BK:

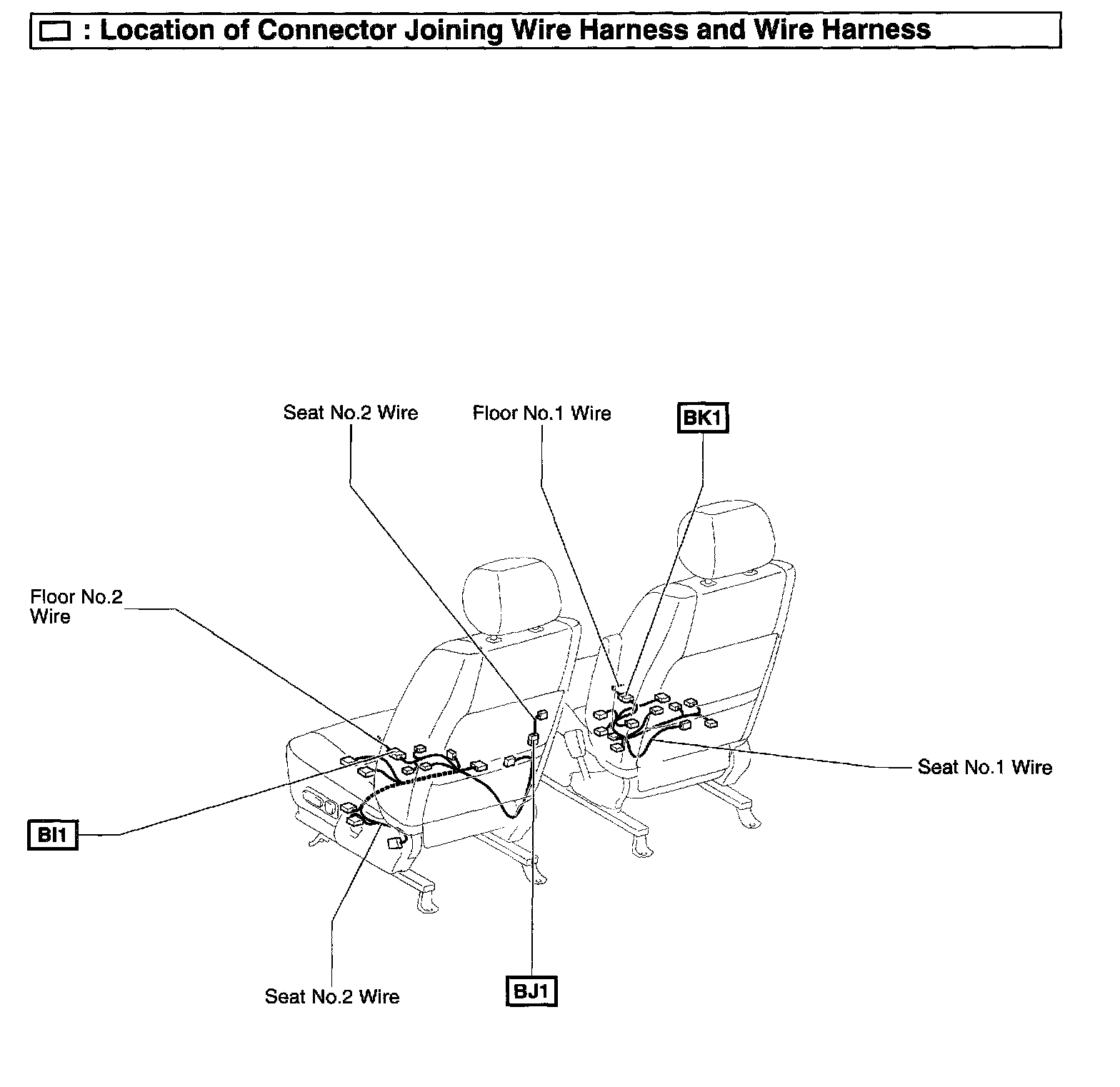

BI1 - BK1:
