Fuse Block: Locations

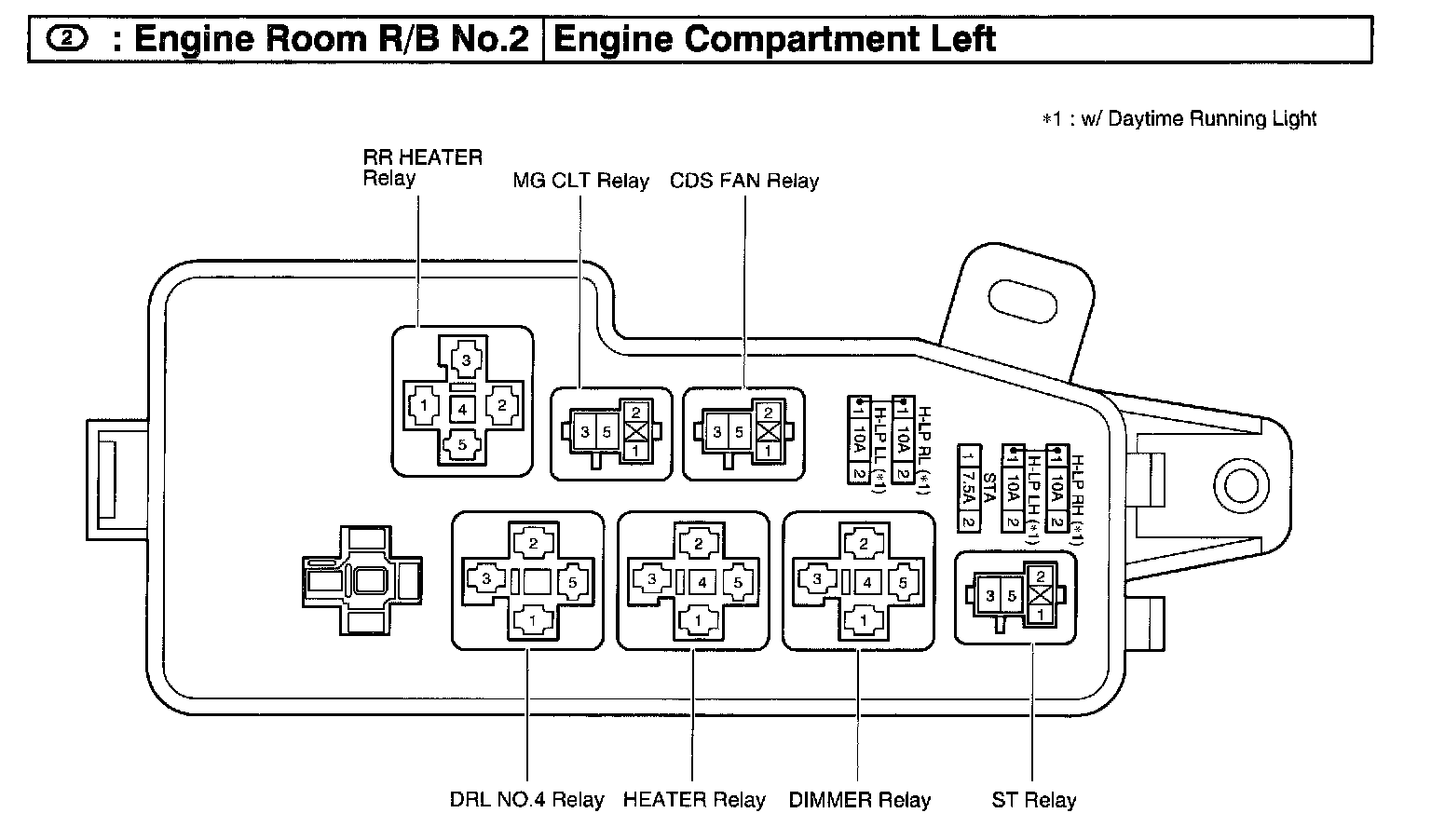

Engine Room R/B No.2 - Engine Compartment Left:

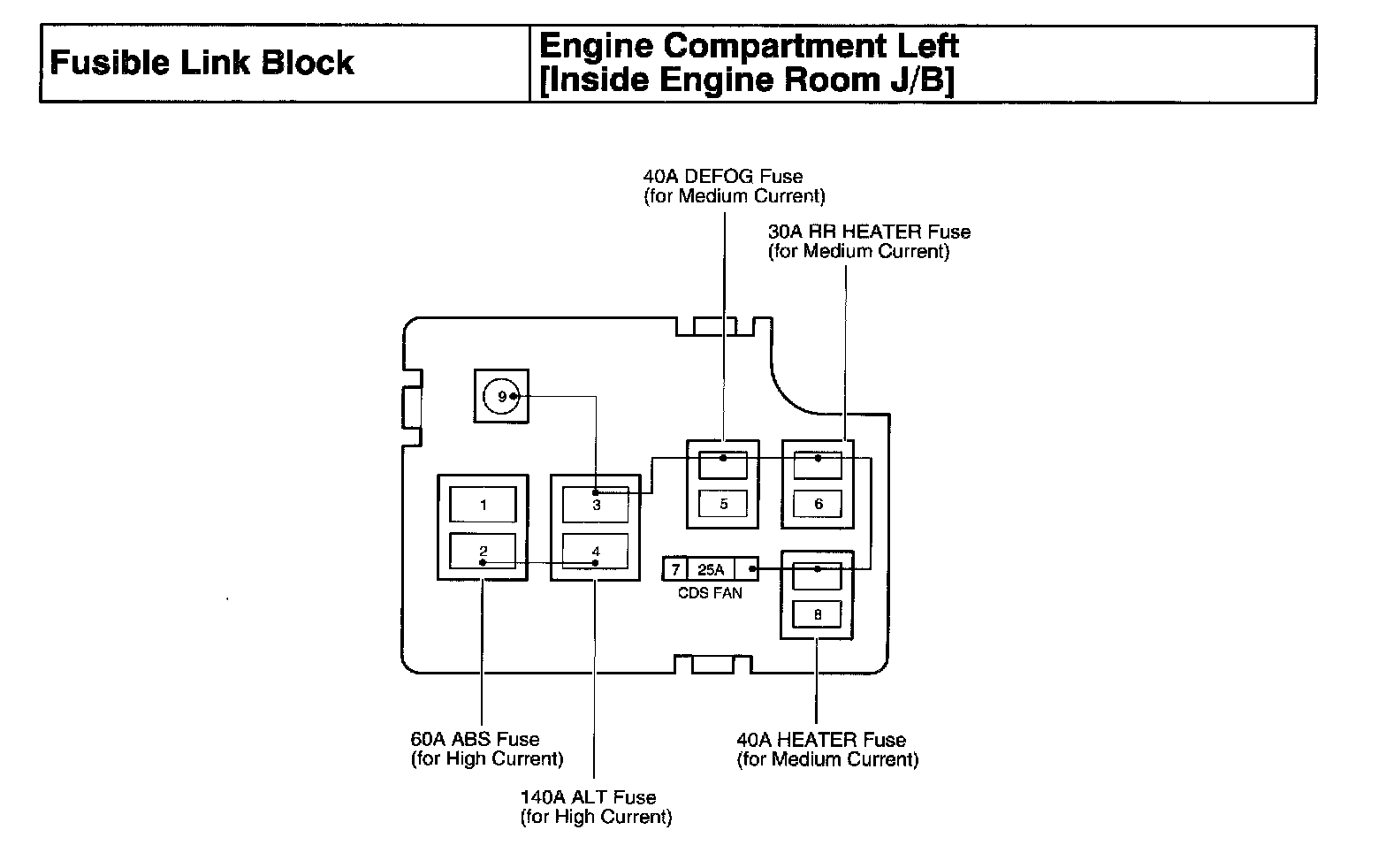

Fusible Link Block - Engine Compartment Left [Inside Engine Room J/B]:

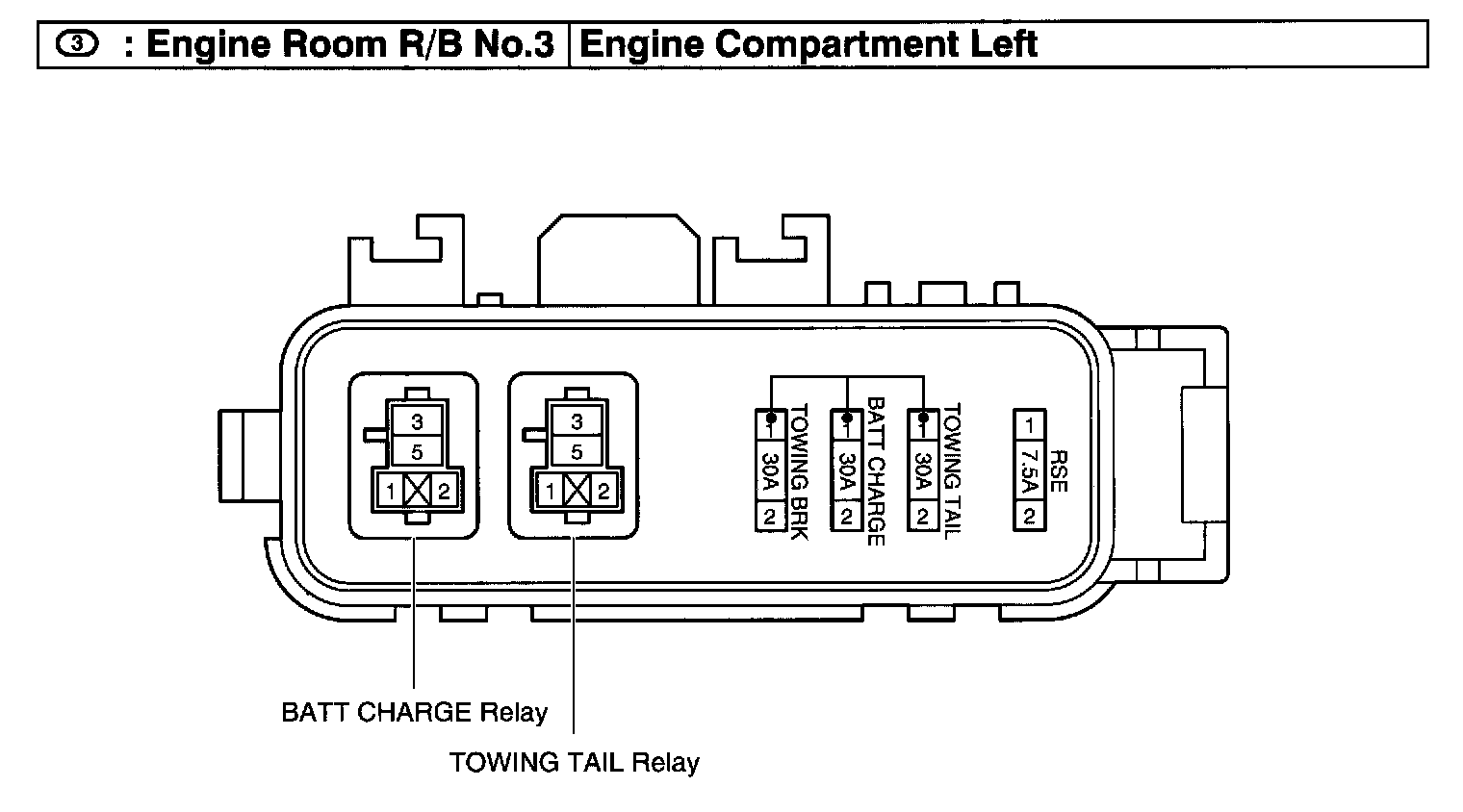

Engine Room R/B No.3 - Engine Compartment Left:

Driver Side R/B - Under The Instrument Panel J/B:

Engine Room J/B - Engine Compartment Left:

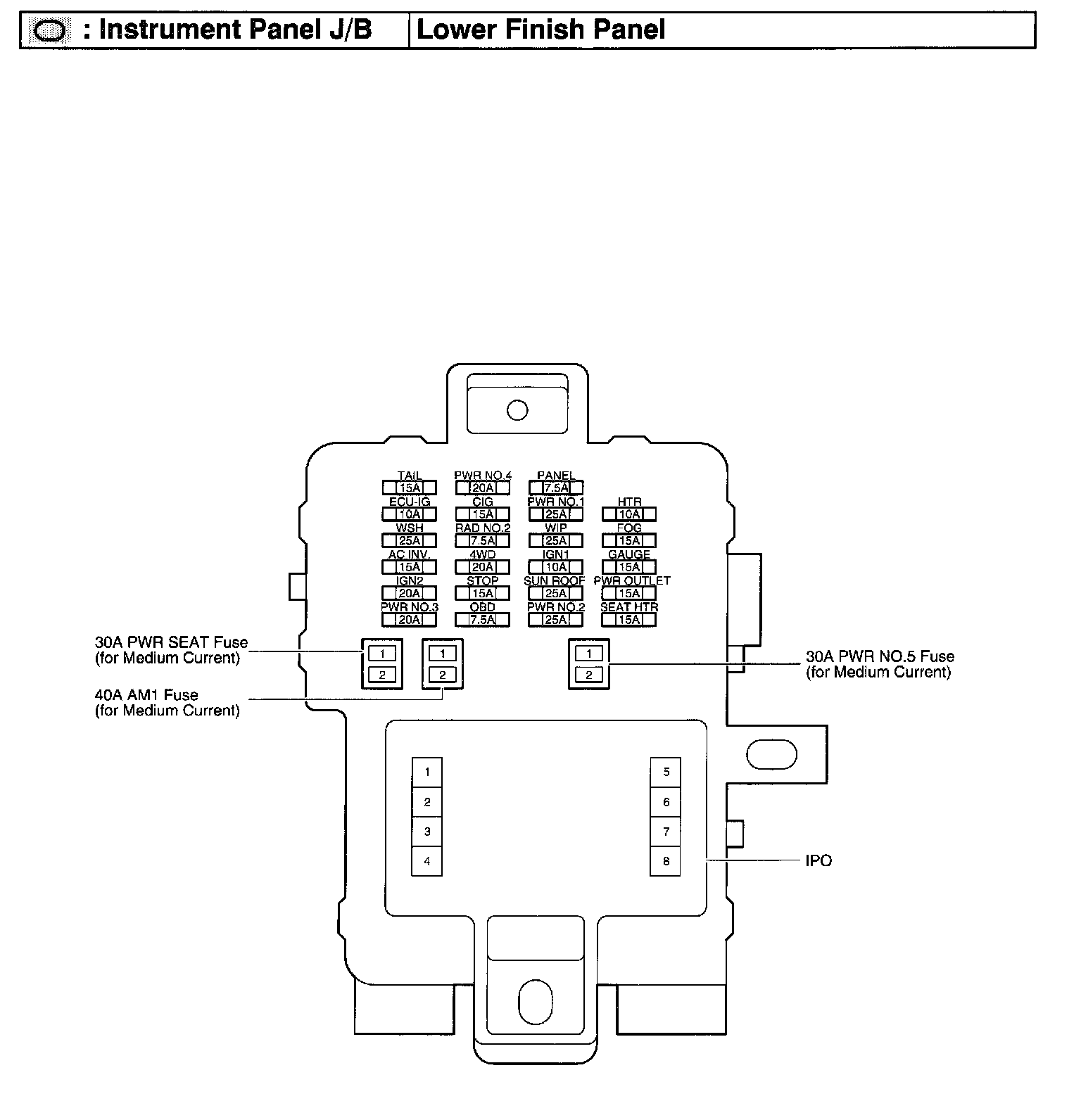

Instrument Panel J/B - Lower Finish Panel:

Instrument Panel J/B - Lower Finish Panel:

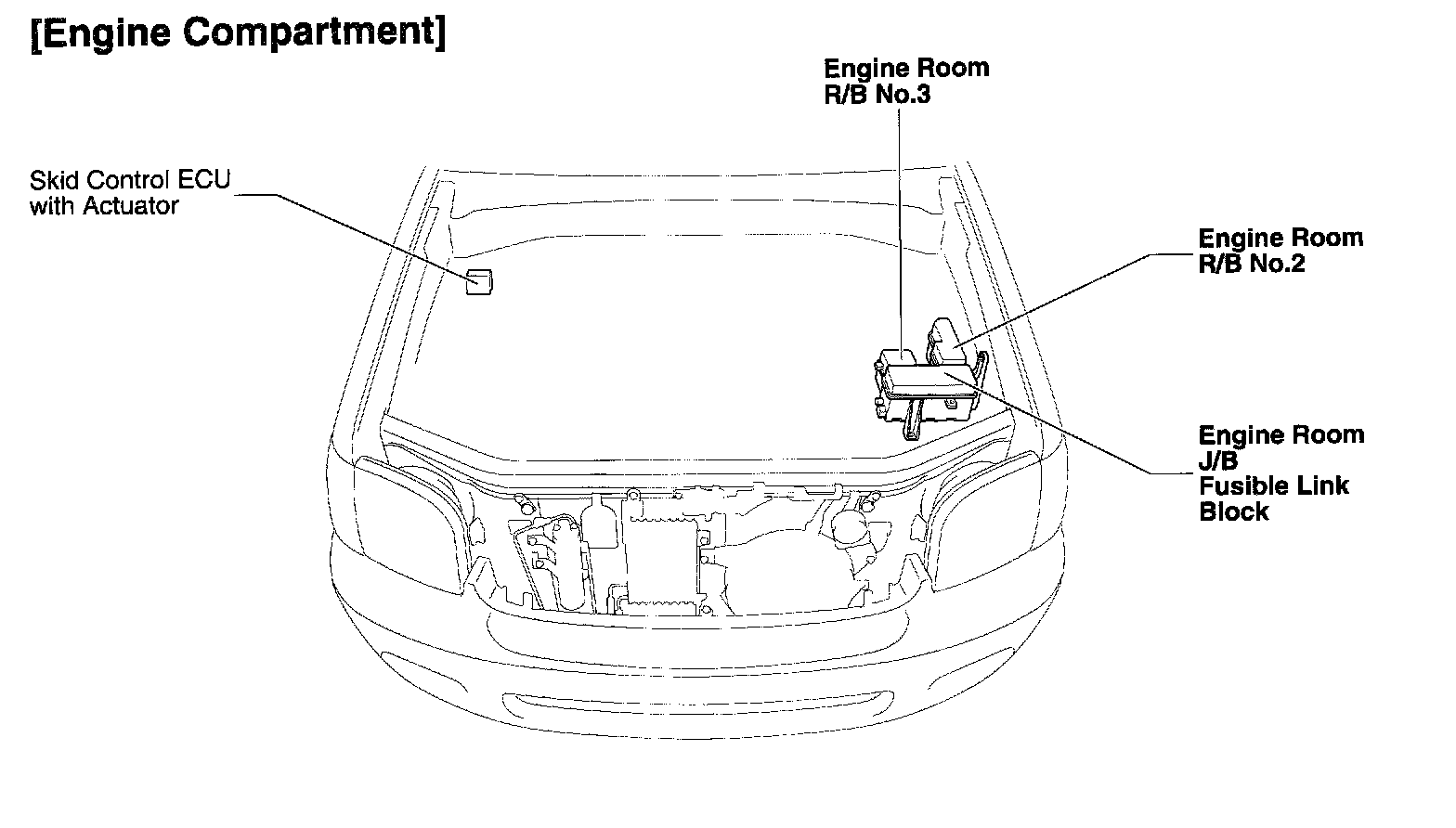

Engine Compartment:

Instrument Panel:

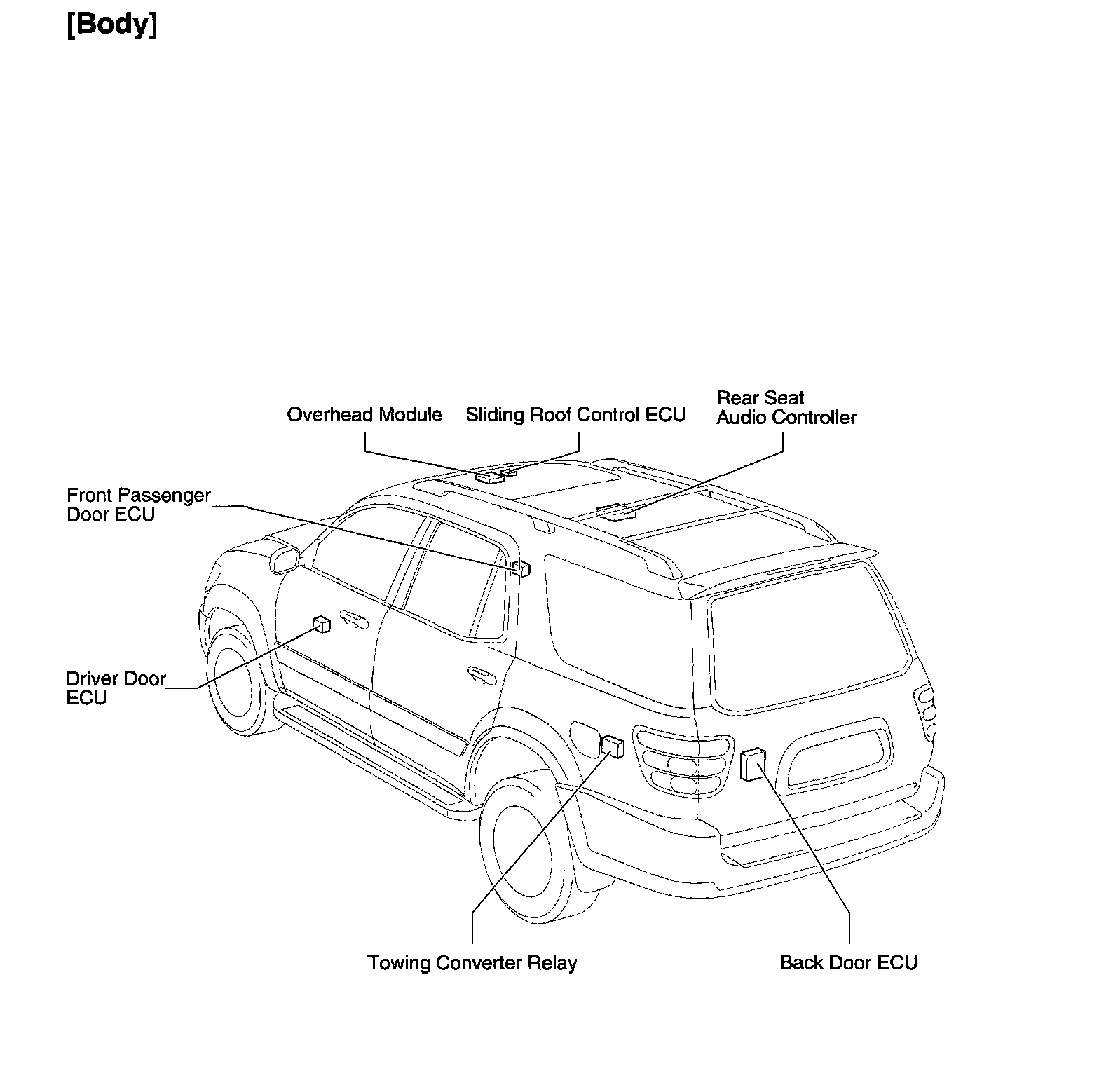

Body:
