Ignition Coil: Service and Repair

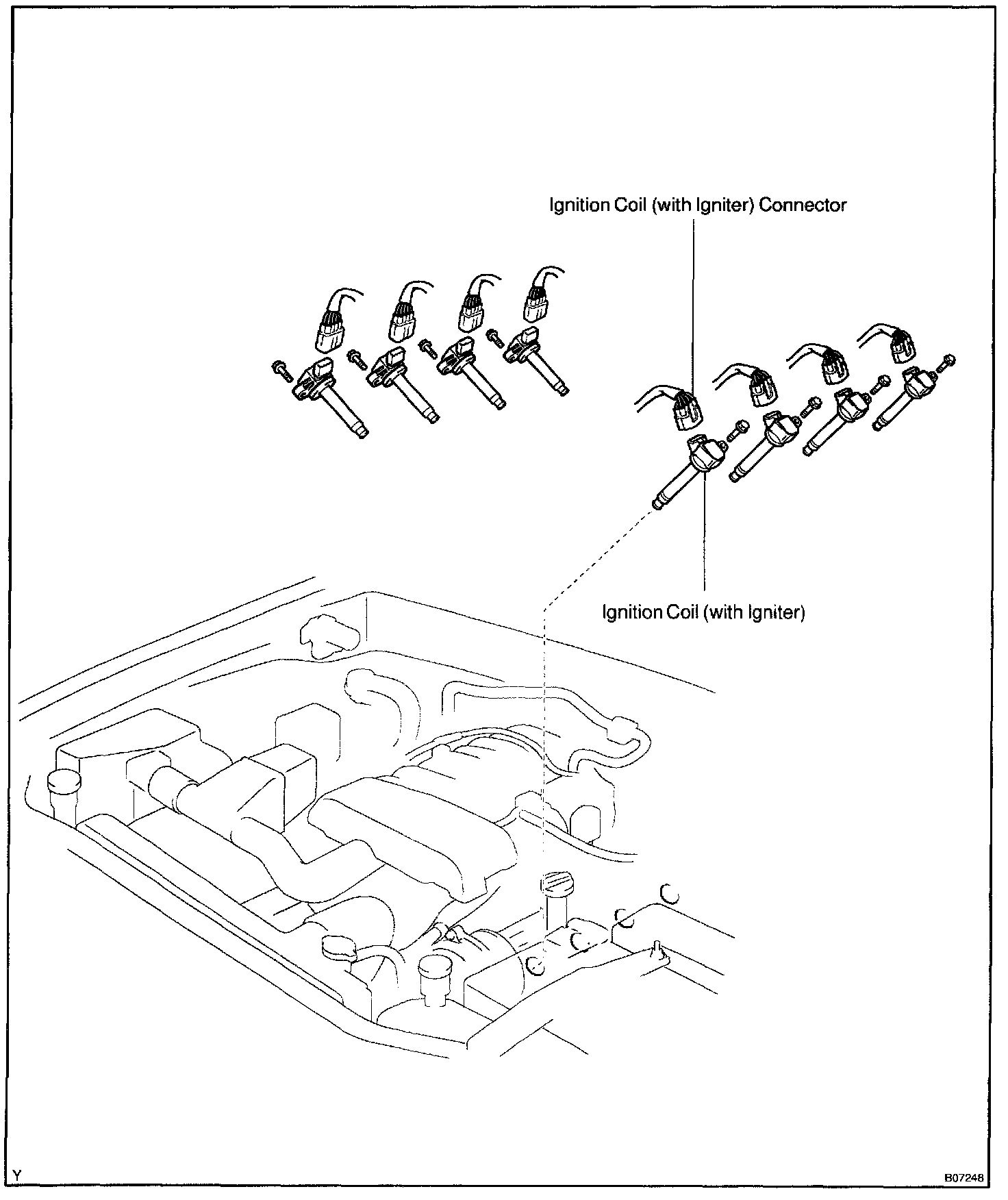

Ignition Coil:

REMOVAL




1. DISCONNECT IGNITION COIL (WITH IGNITER) CONNECTORS

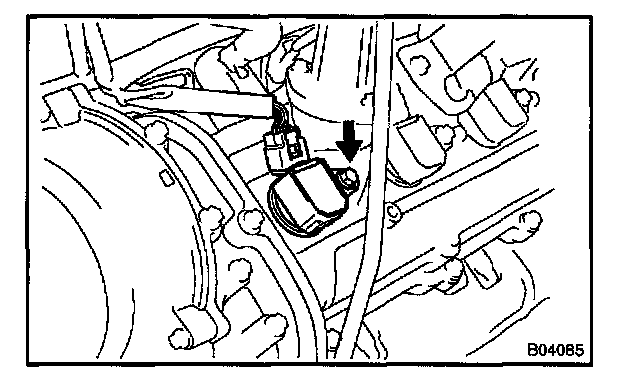

2. REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS

Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).

INSTALLATION




1. INSTALL IGNITION COILS (WITH IGNITER) TO SPARK PLUGS

Install the ignition coil (with igniter) with the bolt. Install the 8 ignition coils (with igniter).

Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

2. CONNECT IGNITION COIL (WITH IGNITER) CONNECTORS
