Torque Specification

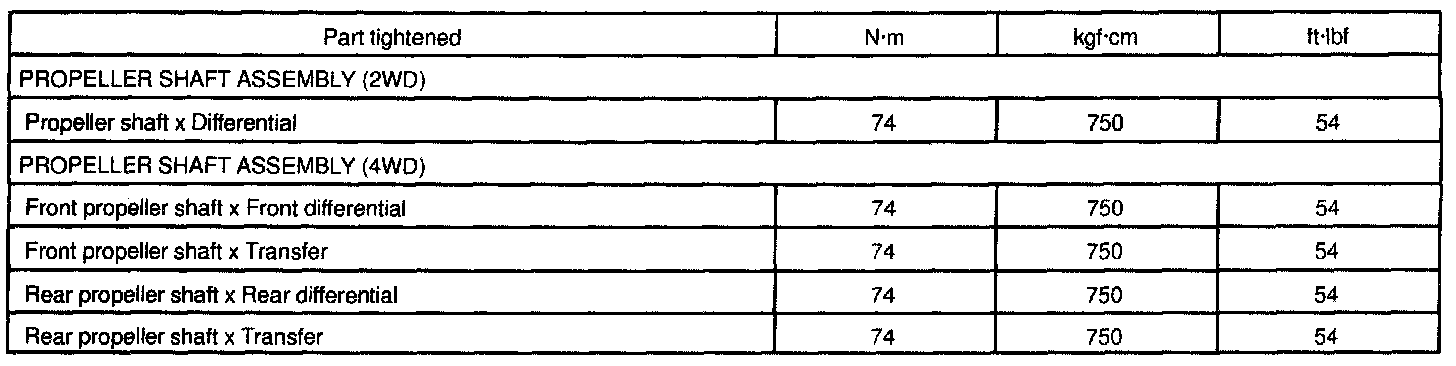

TORQUE SPECIFICATION

Front propeller shaft x Front differential(4wd) 74 Nm (750 kgf-cm, 54 ft. lbs.)
Front propeller shaft x Transfer(4wd) 74 Nm (750 kgf-cm, 54 ft. lbs.)
Rear propeller shaft x Transfer(4wd) 74 Nm (750 kgf-cm, 54 ft. lbs.)
Rear propeller shaft x Rear differential(4wd) 74 Nm (750 kgf-cm, 54 ft. lbs.)
Propeller shaft x Differential (2wd) 174 Nm (750 kgf-cm, 54 ft. lbs.)
