Problem Symptoms Table

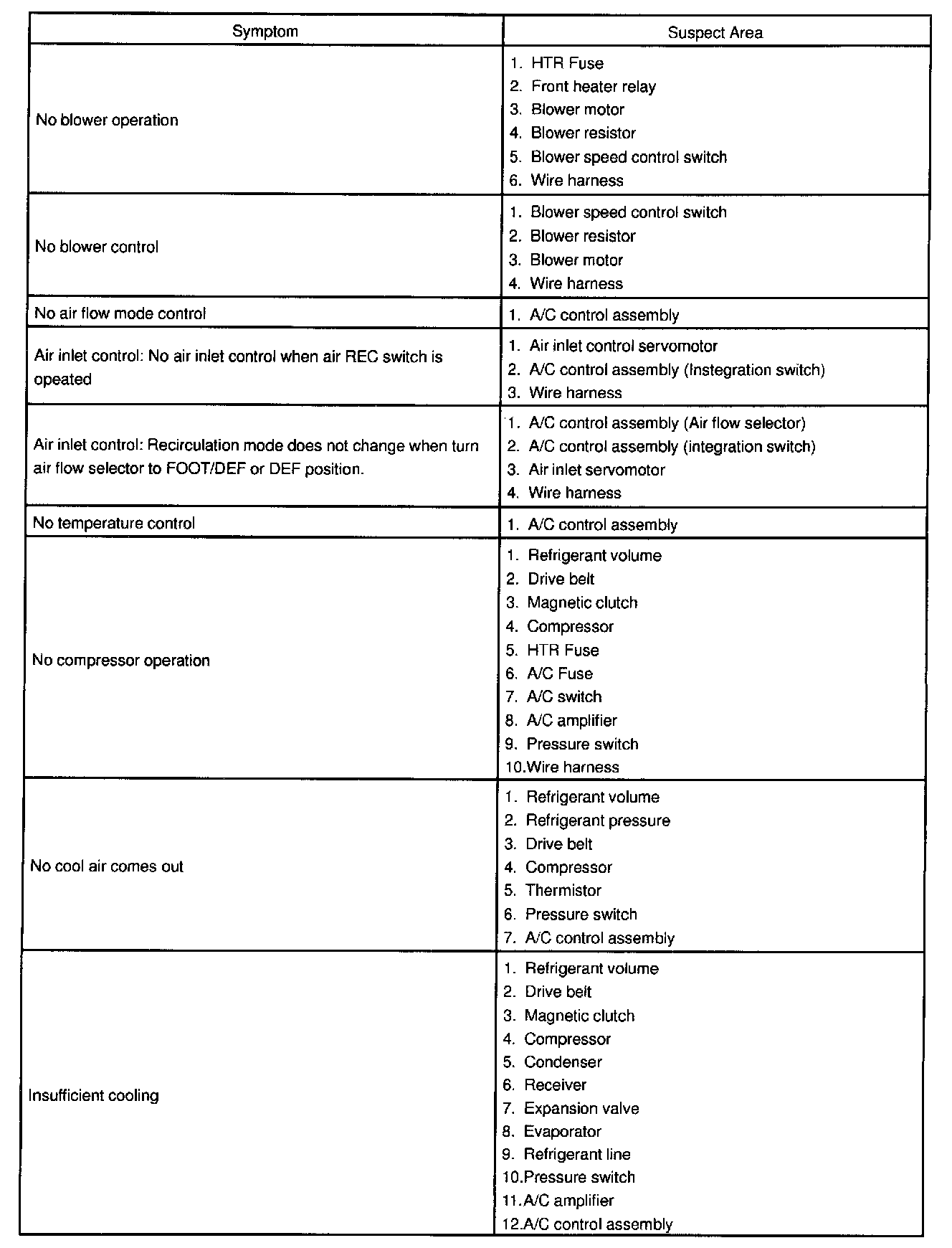

Problem Symptoms Table - Front A/C (Part 1):

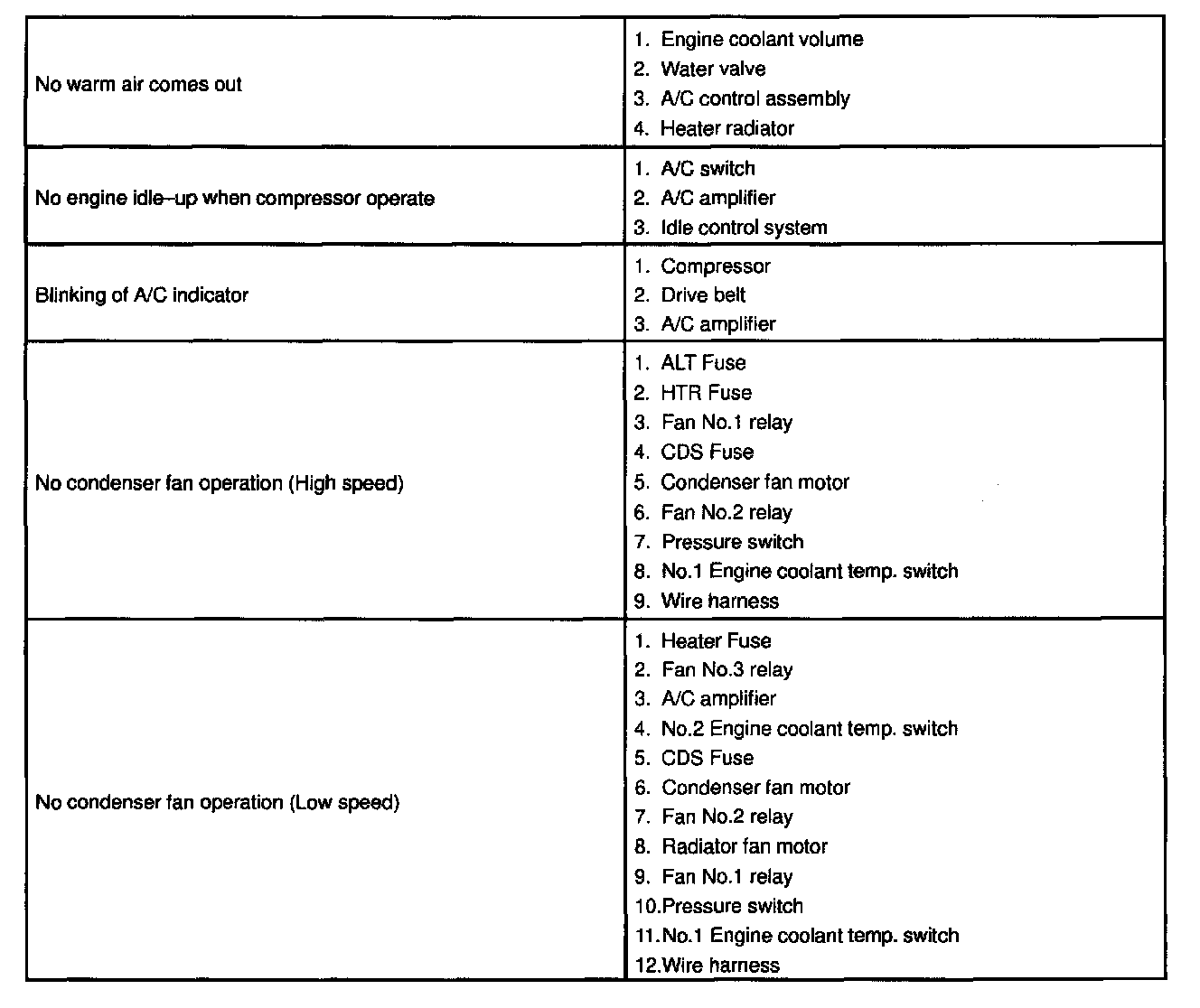

Problem Symptoms Table - Front A/C (Part 2):

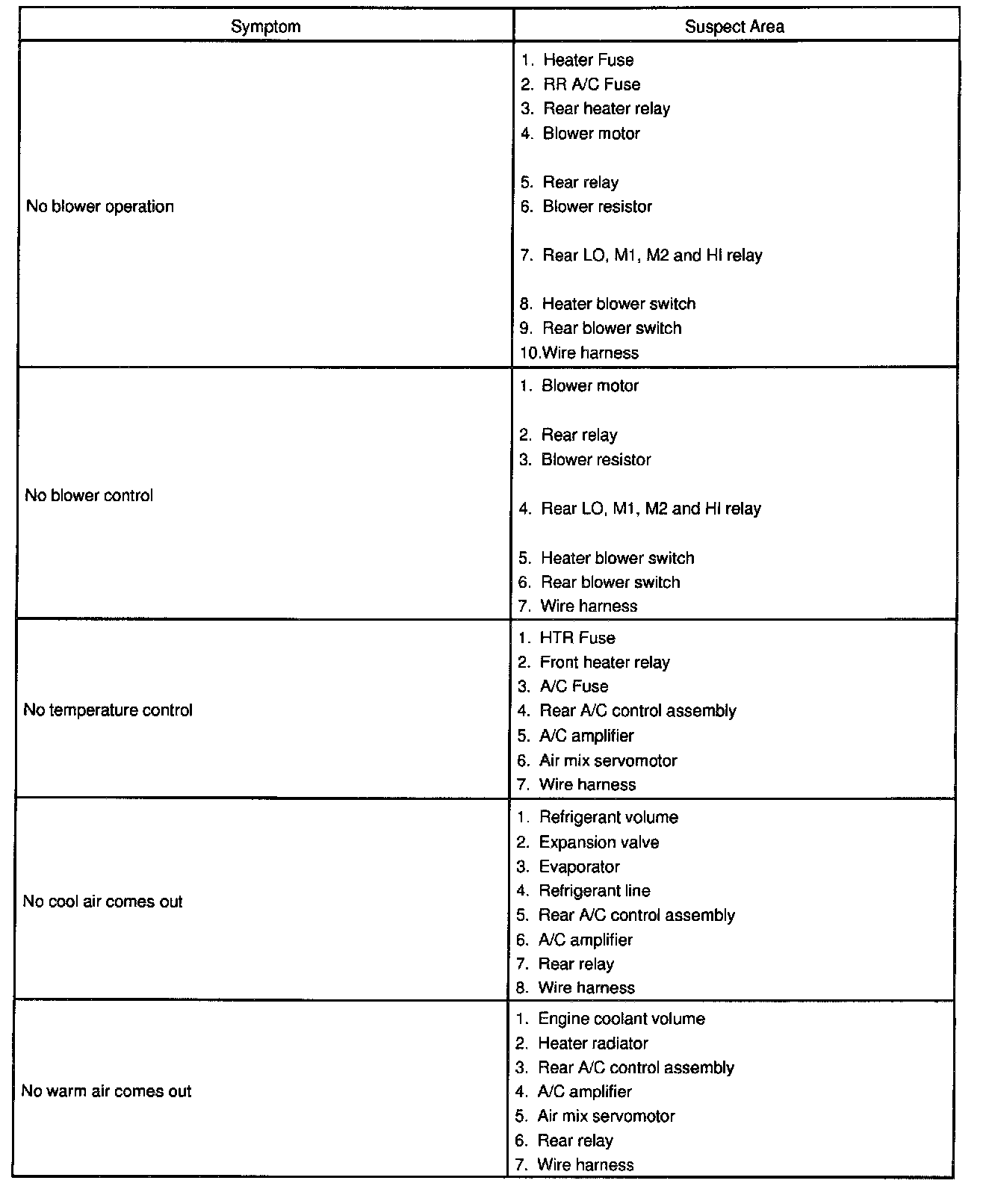

Problem Symptoms Table - Rear A/C:
