Locations
>>
Connector Locations
Connector Locations

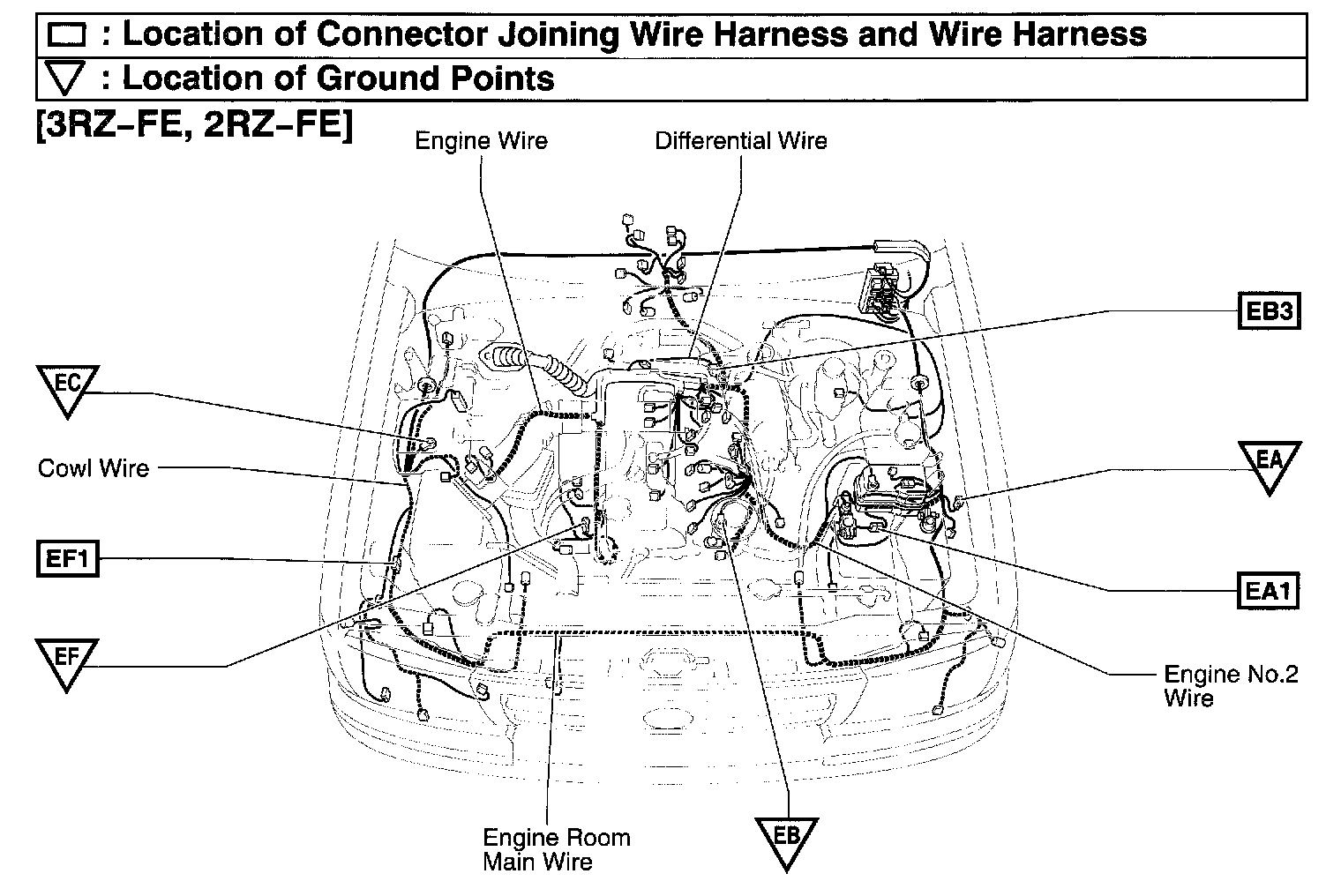

EA1 - EF1, EA - EC:
IF1 - IL2, IE - IH:
BN7 - BR2 (Double Cab):

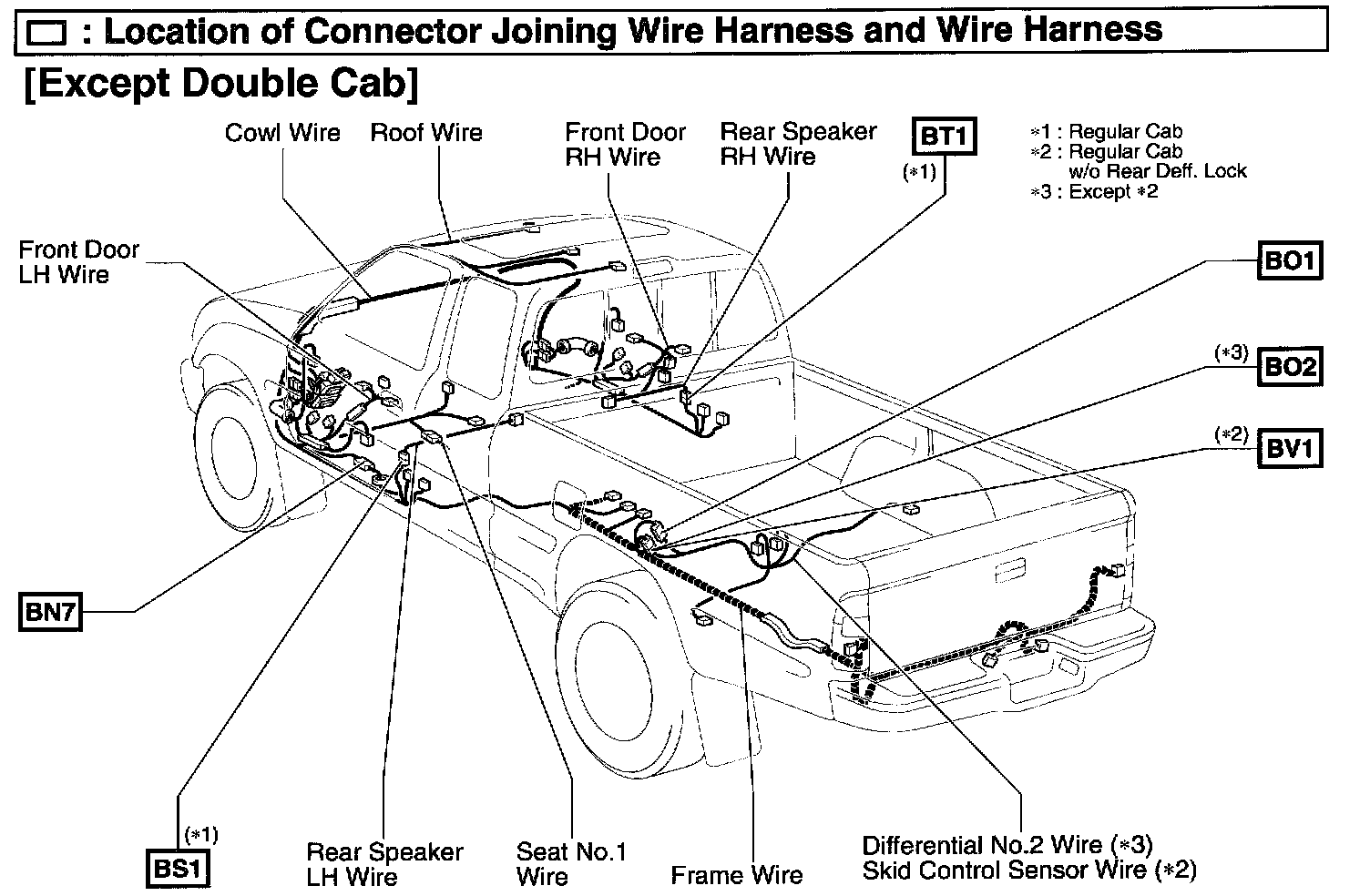

BN7 - BV1 (Except Double Cab):

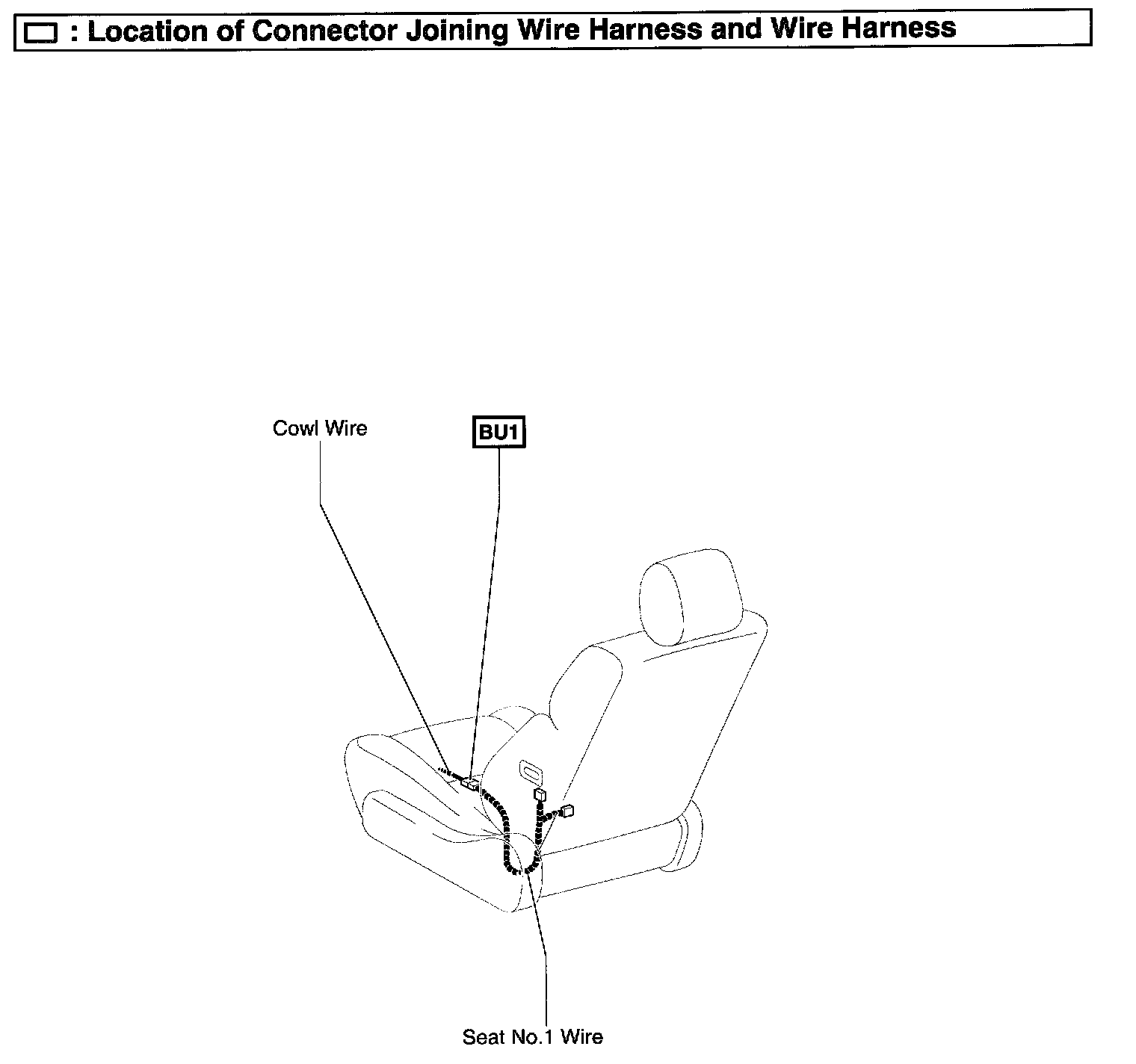

BU1:
