Door Lock Control Switch Circuit

CIRCUIT DESCRIPTION

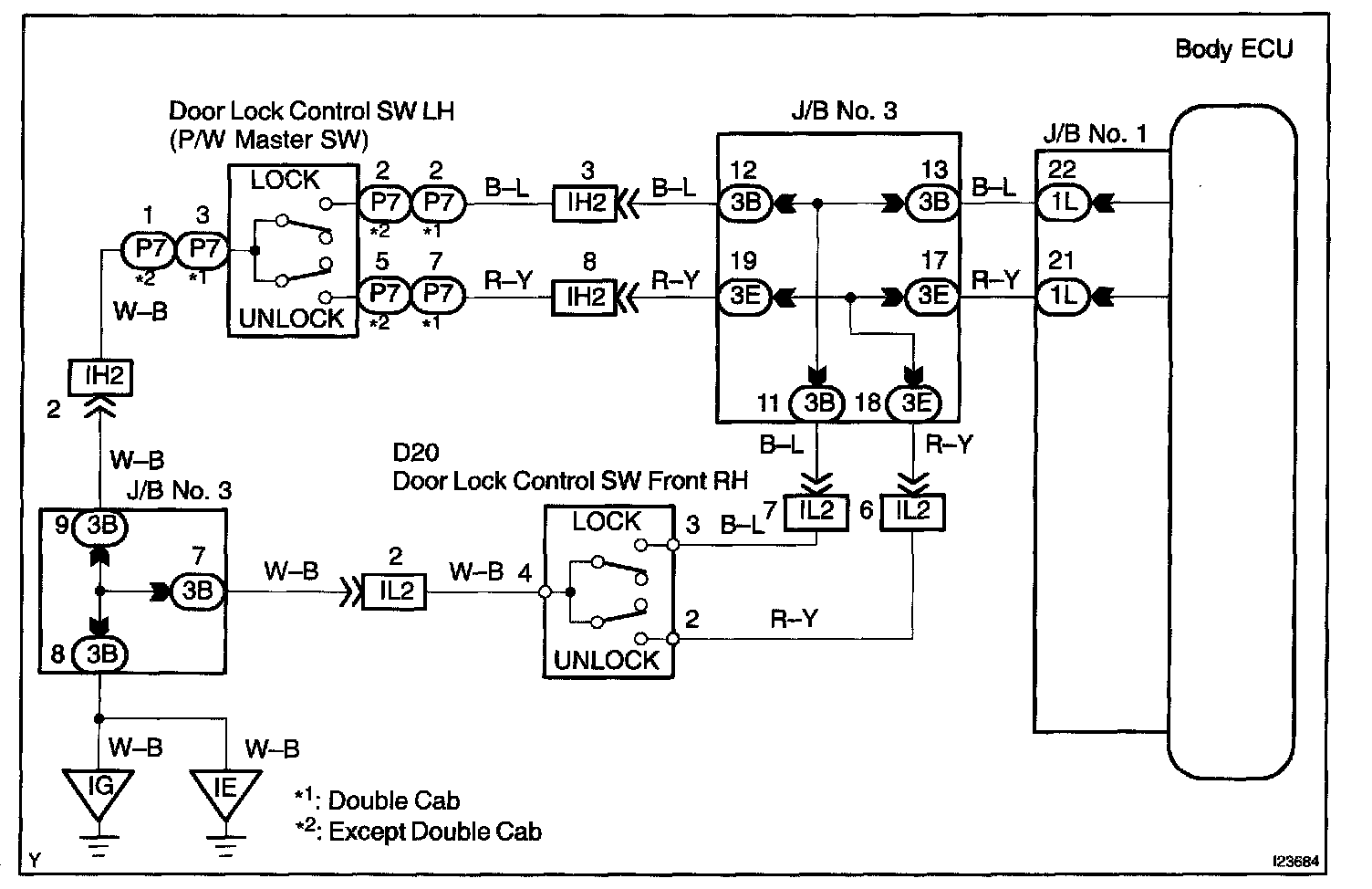

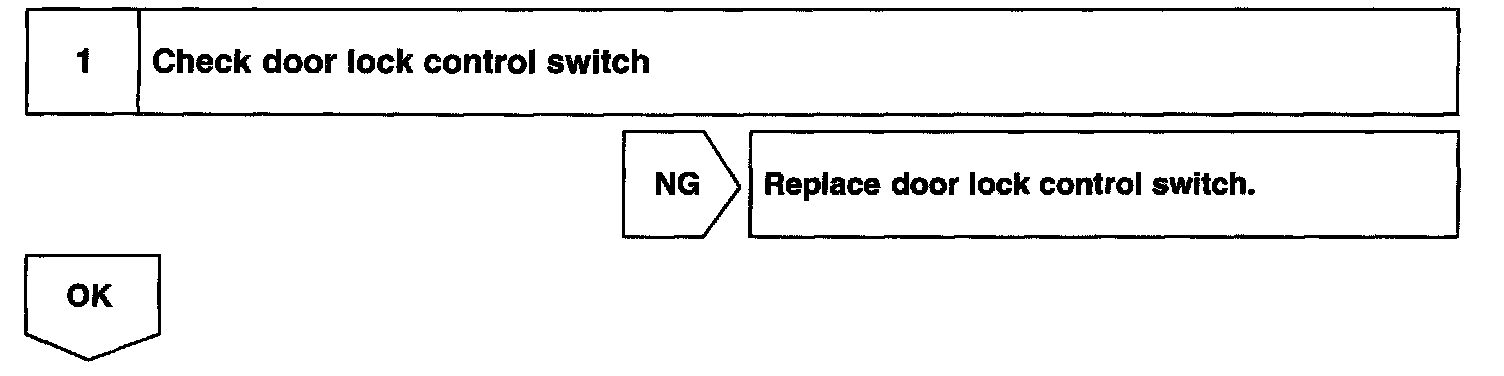

When the door lock control switch is turned to the the lock side, LOCK terminal of the switch is grounded, and when the switch is turned to the unlock side, the UNLOCK terminal is grounded (See the wiring diagram).
