Manual Shifting Test

MANUAL SHIFTING TEST






HINT: By this test, it can be determined whether the trouble is within the electrical circuit or is a mechanical problem in the transmission.

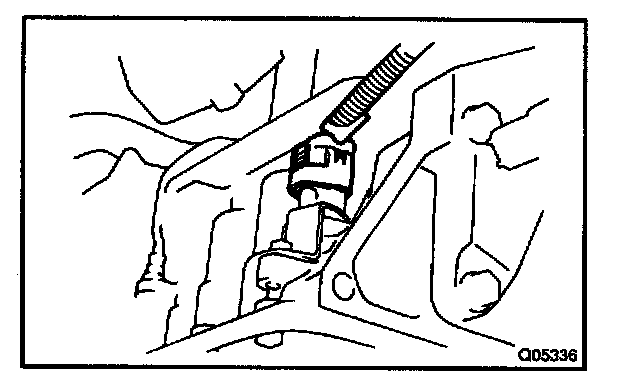

a. Disconnect the solenoid wire.
b. Inspect the manual driving operation.

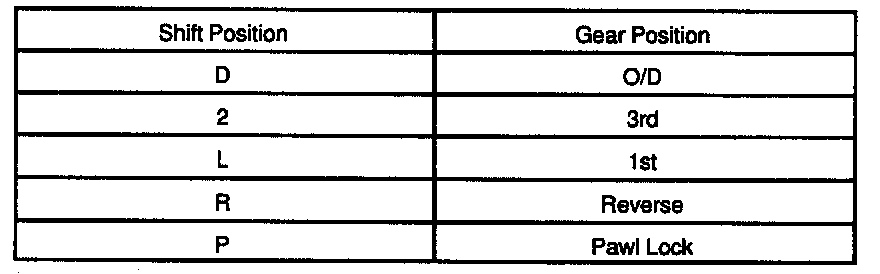

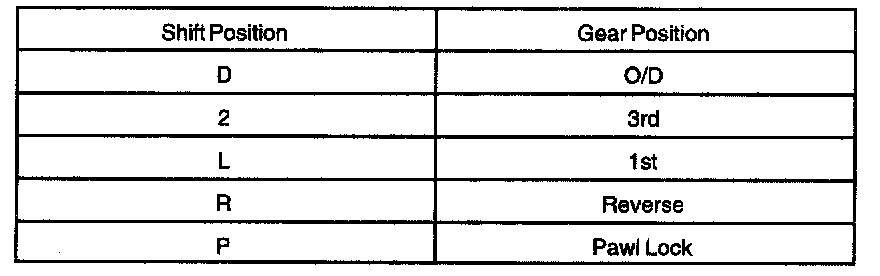

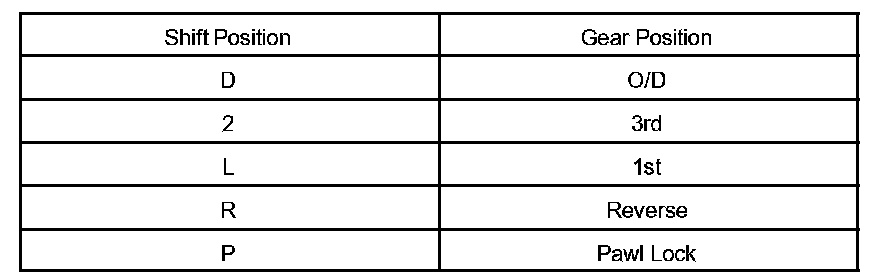

Check that the shift and gear positions correspond with the table.






HINT:
If the L, 2 and D position gear positions are difficult to distinguish, do the following road test.
- While driving, shift through the L, 2 and D positions. Check that the gear change corresponds to the shift position.
- If any abnormality is found in the above test, the problem is in the transmission itself.

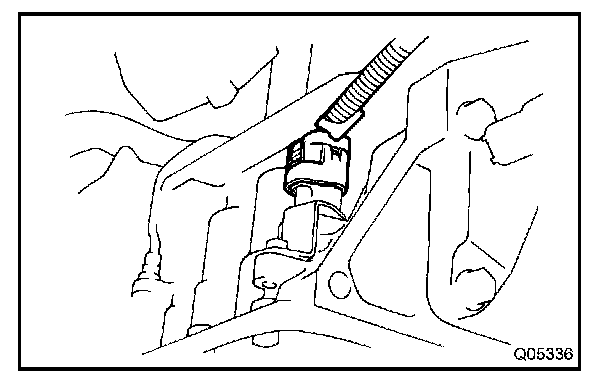

c. Connect the solenoid wire.
d. Delete the DTC.
