Control Switch Circuit (Cruise Control Switch)
Control Switch Circuit (Cruise Control Switch)CIRCUIT DESCRIPTION
This circuit Sends the SET/COAST, RES/ACC and CANCEL signals (each voltage) to the ECM.

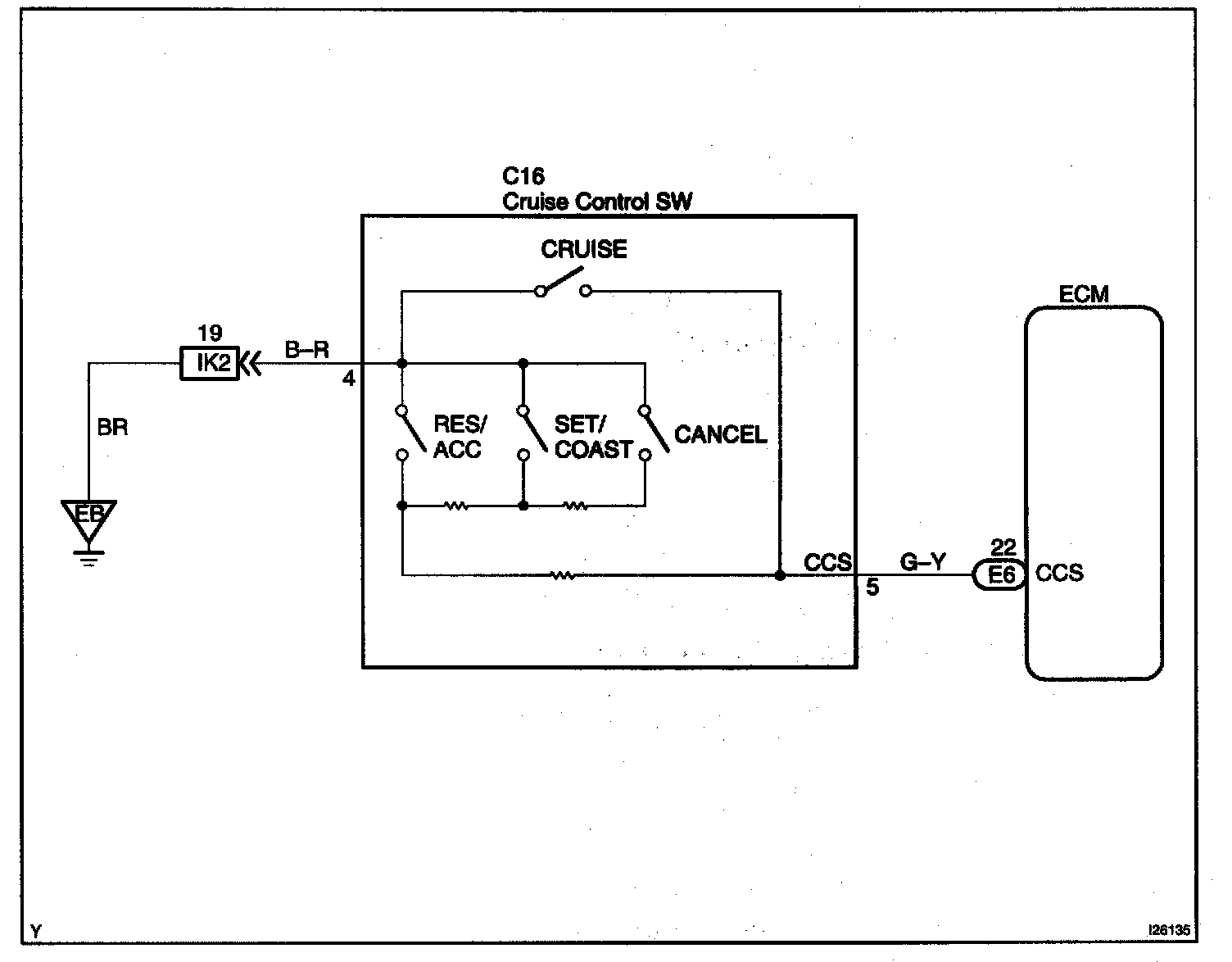

Wiring Diagram:

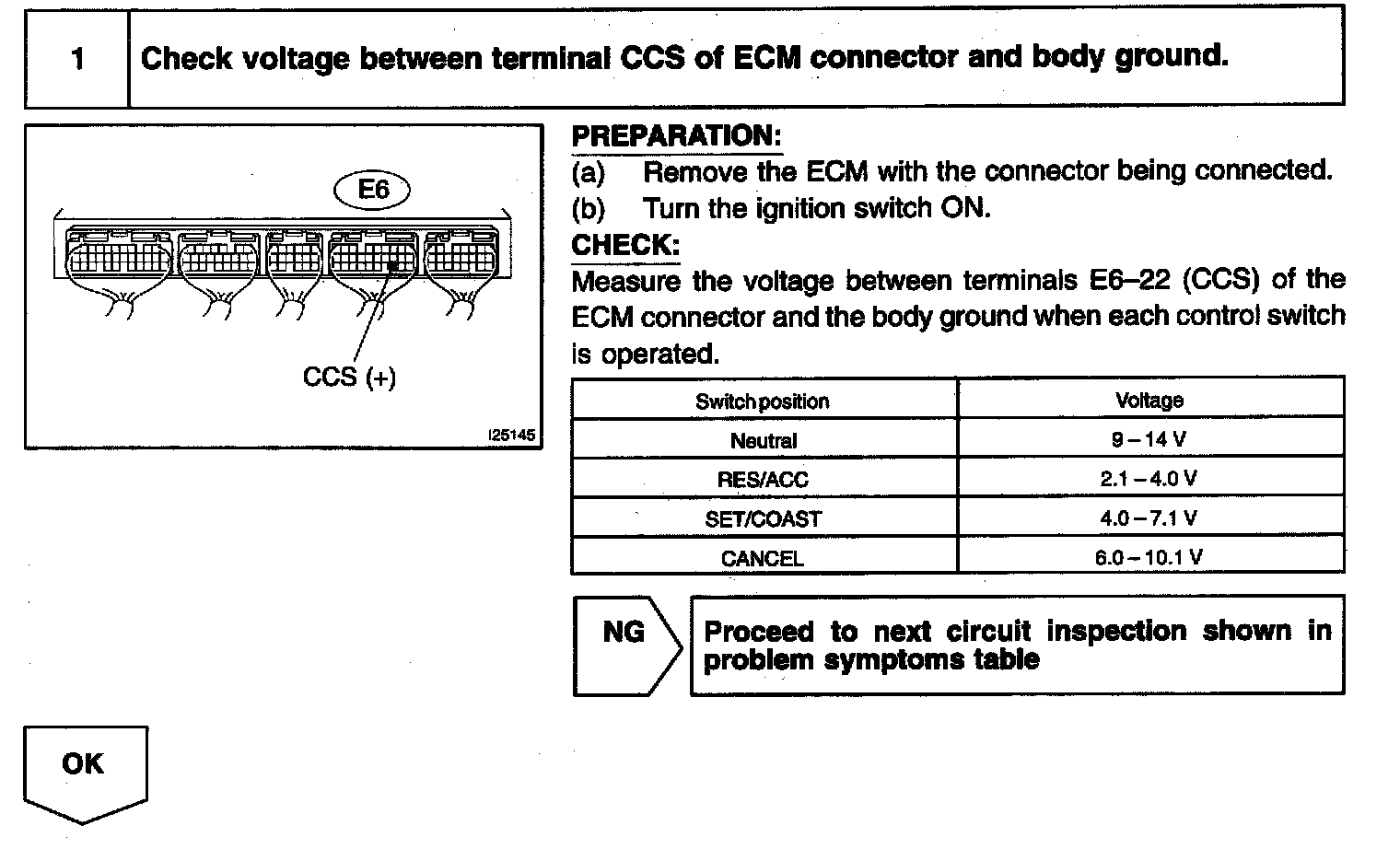

Step 1:
Step 2 - 3:

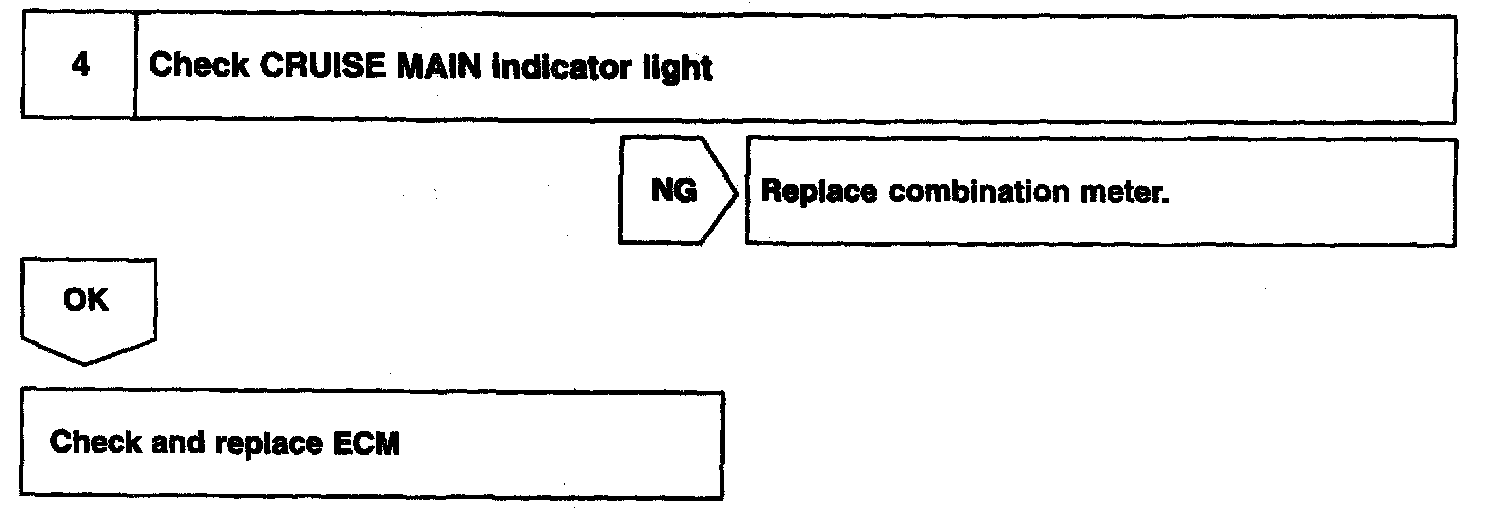

Step 4:
INSPECTION PROCEDURE
