Multiple Junction Connector
Multiple Junction Connector

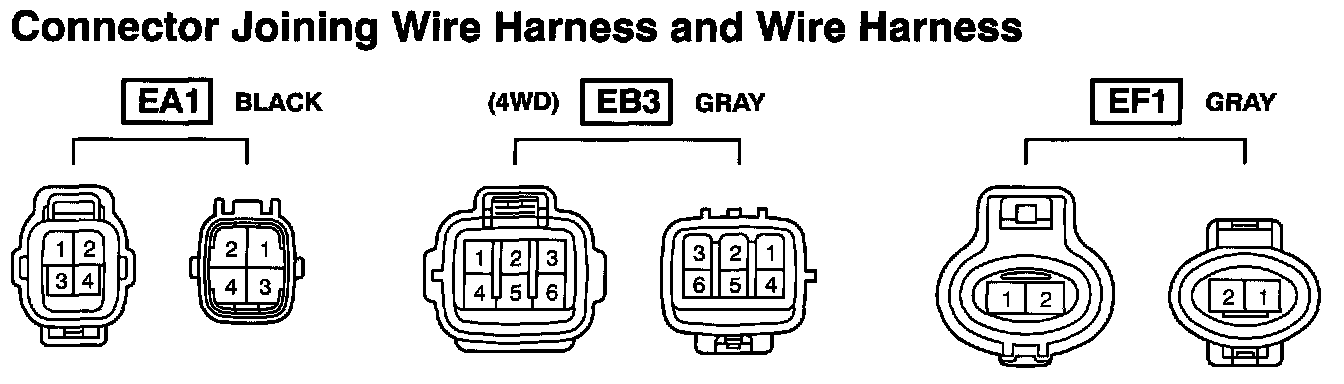

EA1 - EF1:

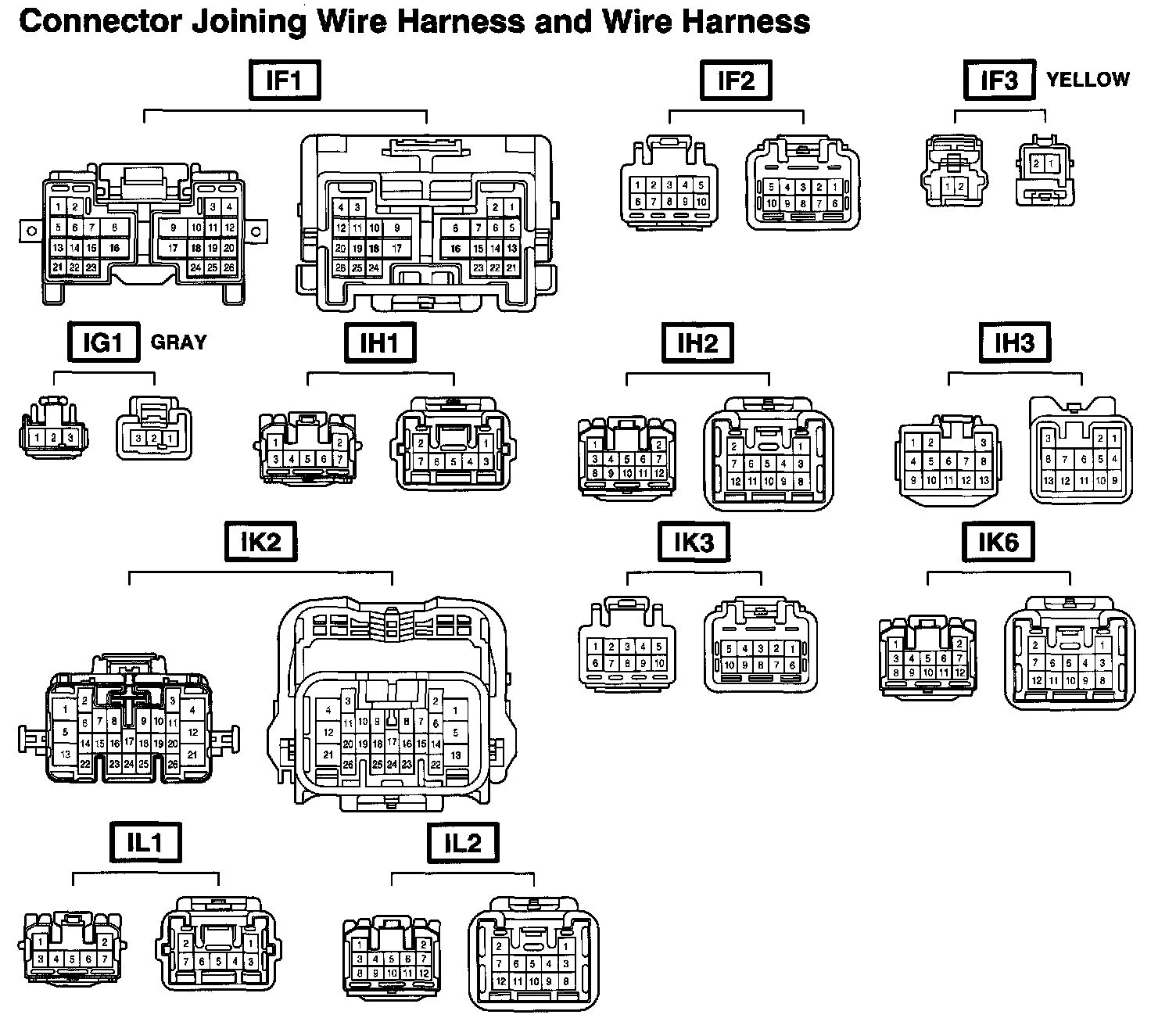

IF1 - IL2:

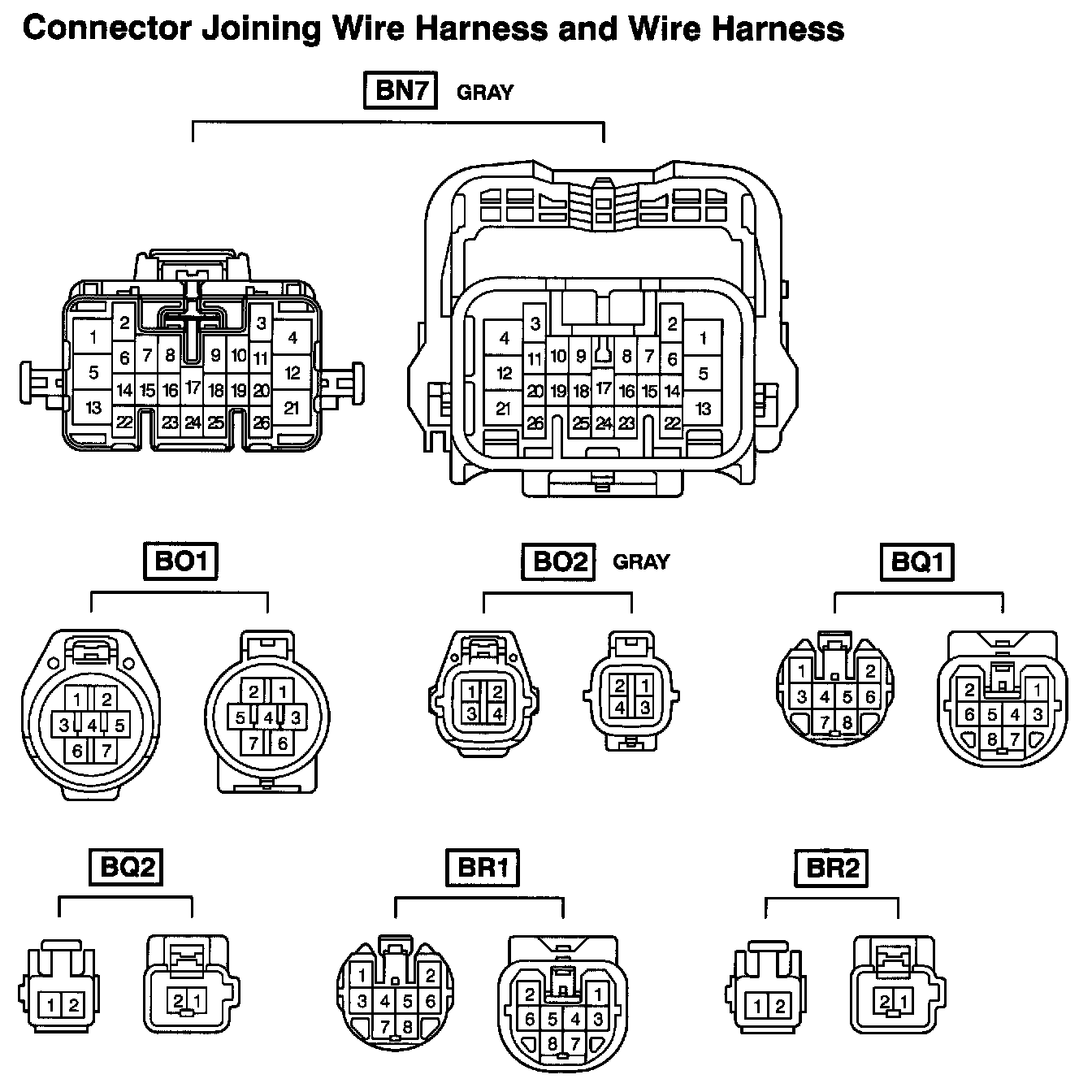

BN7 - BR2 (Double Cab):

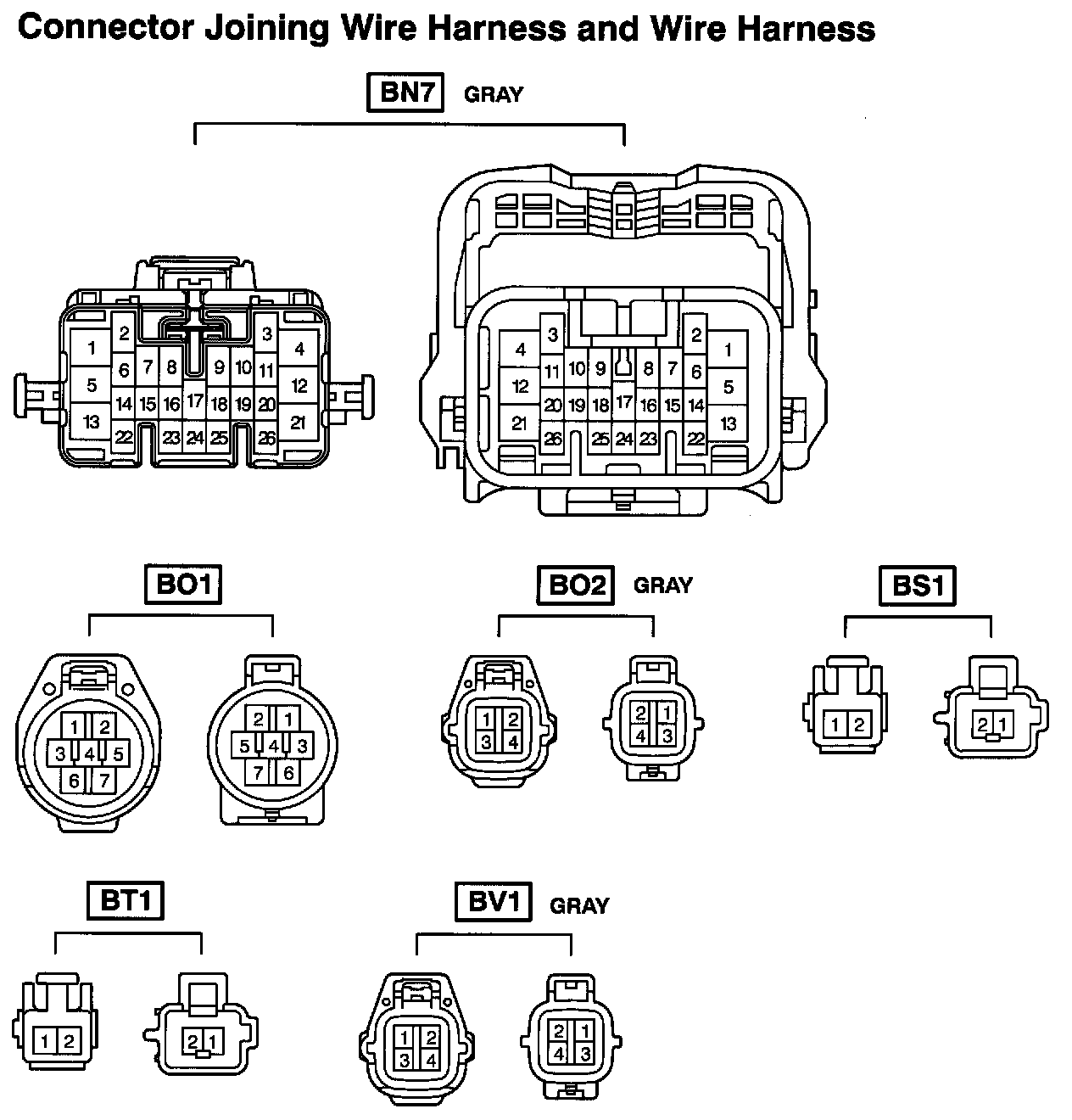

BN7 - BV1 (Except Double Cab):

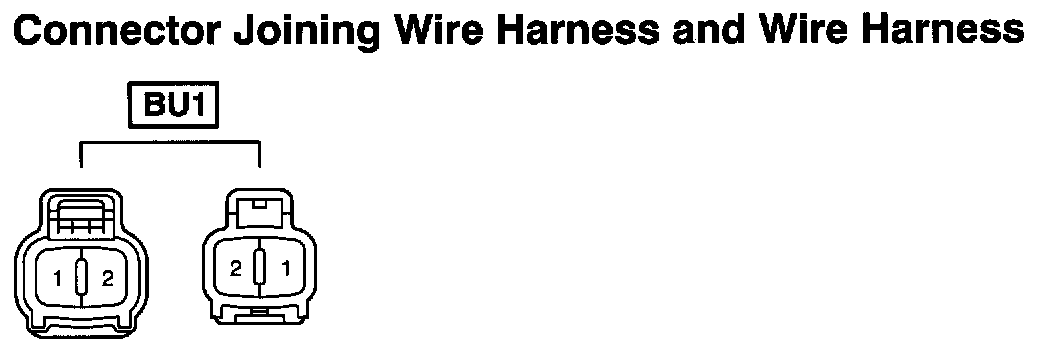

BU1:
