Relay Box
Relay Box

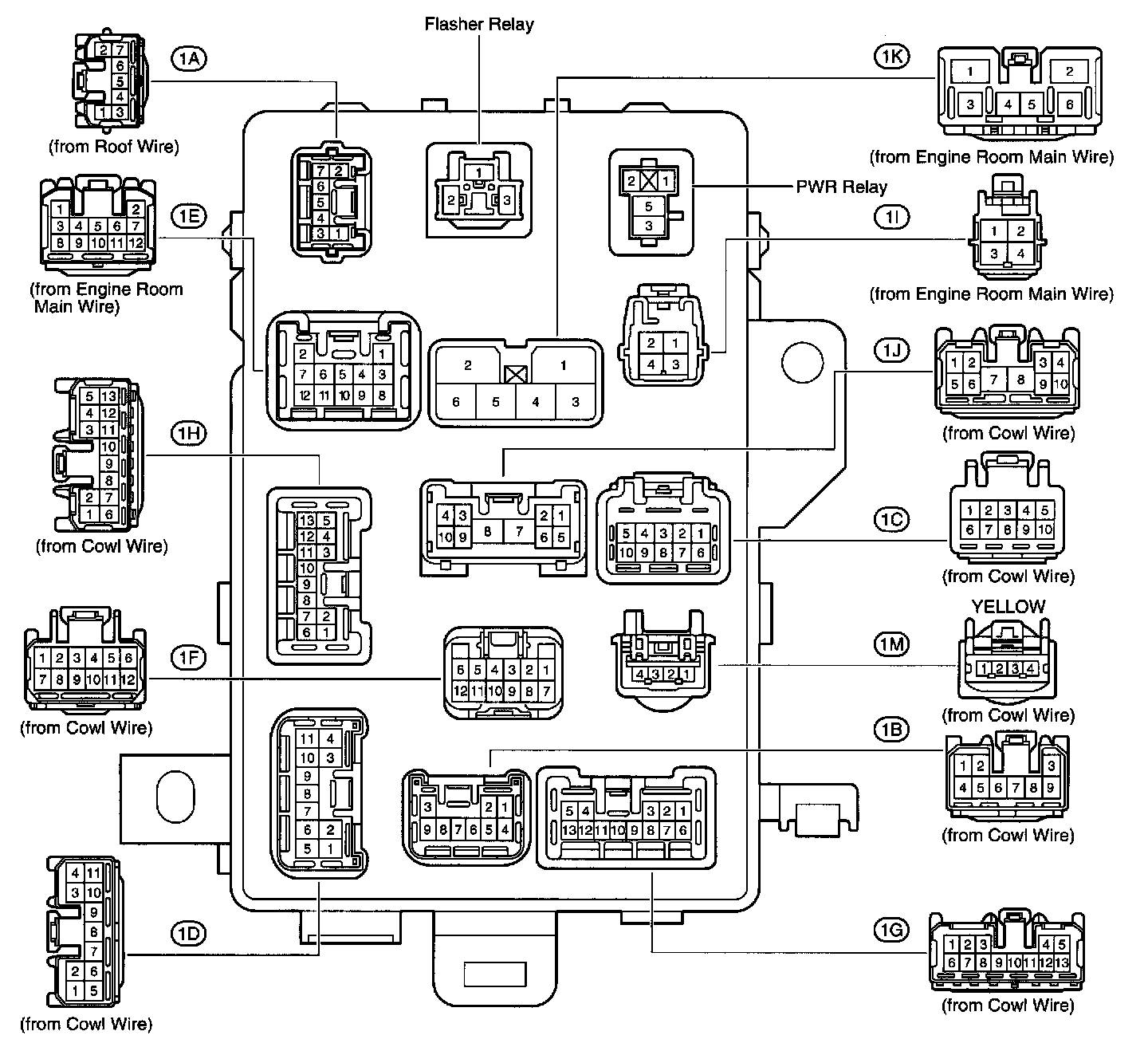

J/B No.1 - Lower Finish Panel:
J/B No.1 - Lower Finish Panel:

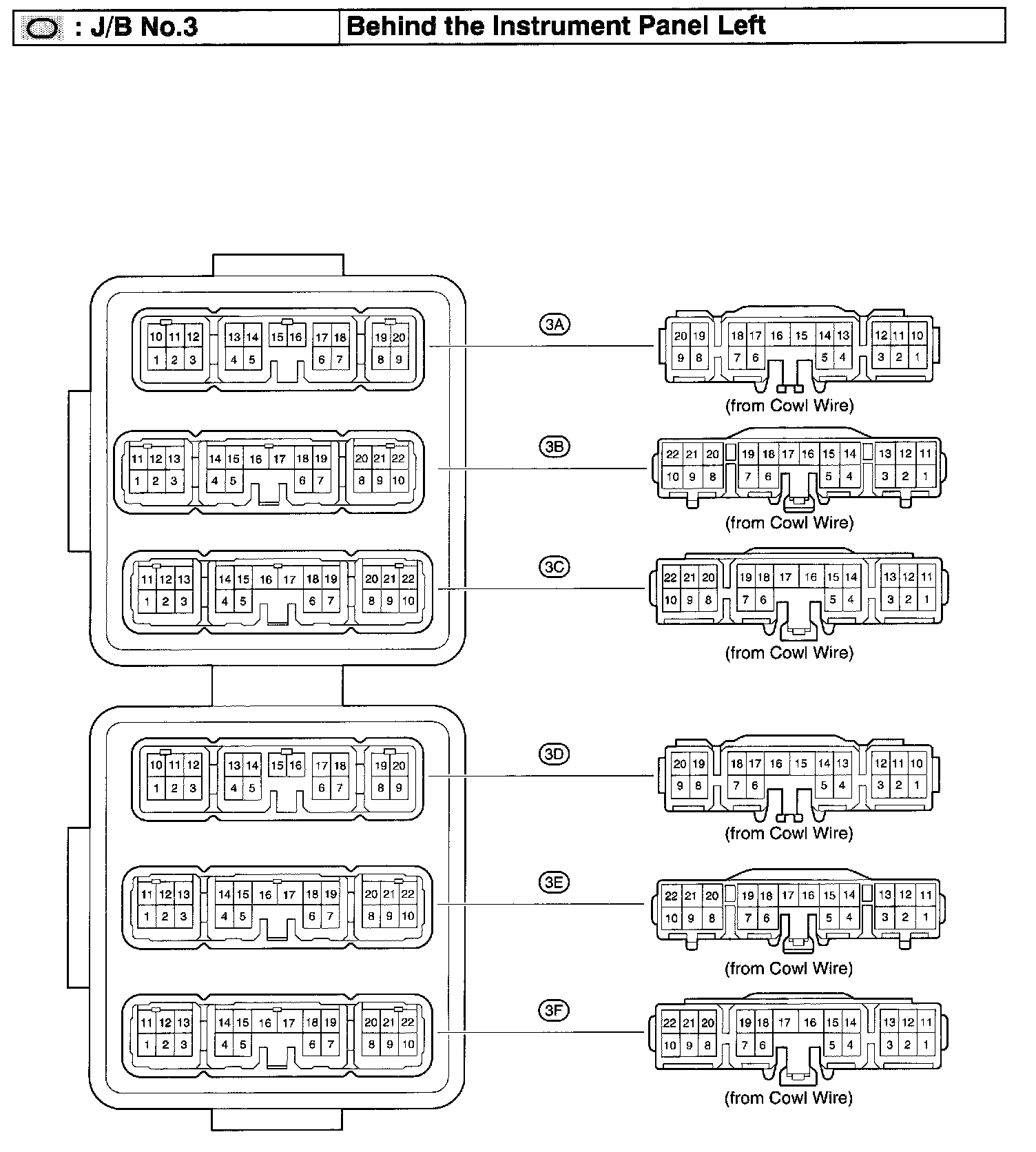

J/B No.3 - Behind The Instrument Panel Left:

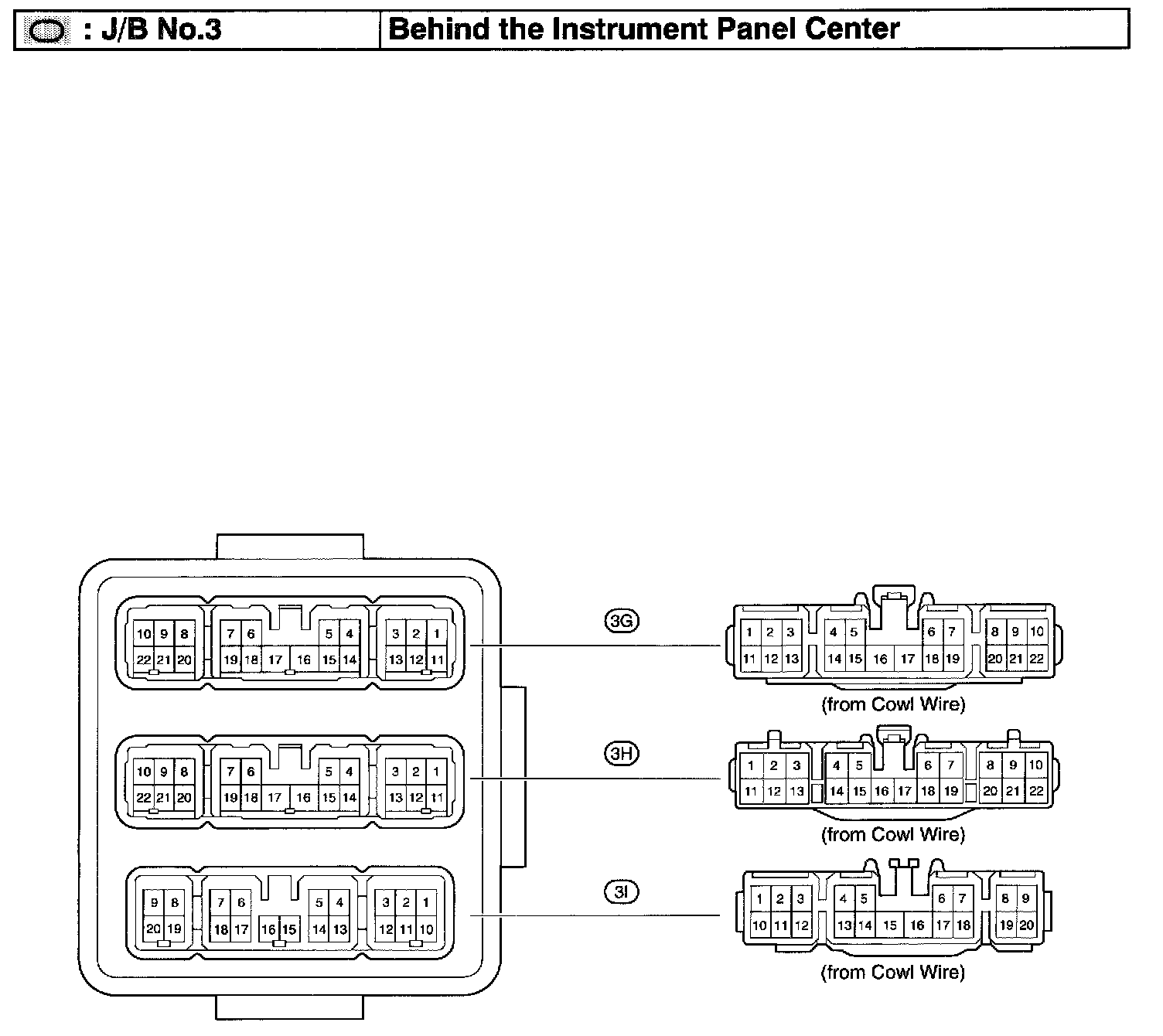

J/B No.3 - Behind The Instrument Panel Center:
