Crankshaft Position Sensor: Testing and Inspection

INSPECT CRANKSHAFT POSITION SENSOR

a. Remove the sensor.

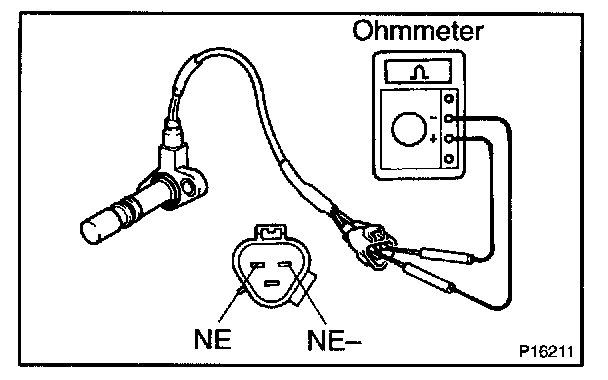

b. Using an ohmmeter, measure the resistance between terminals NE and NE-.

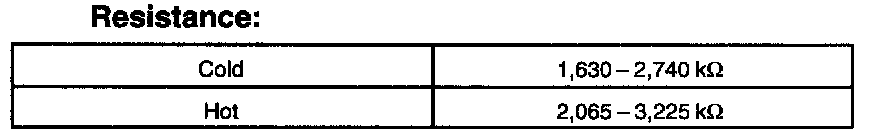

If the resistance is not as specified, replace the sensor.

c. Reinstall the sensor.
