Home >> Toyota >> 2003 >> Tacoma PreRunner 2WD L4-2.7L (3RZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations

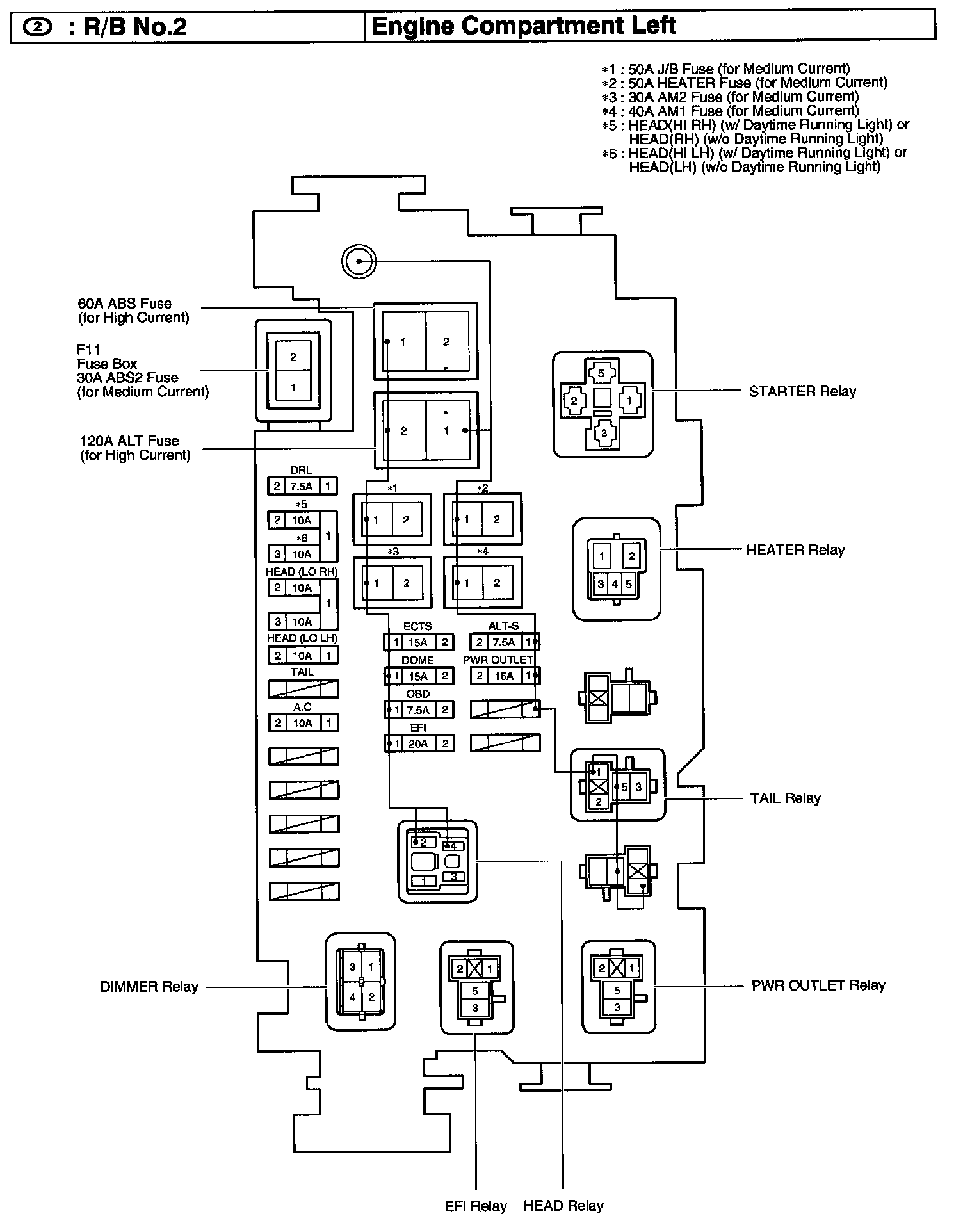

R/B No.2 - Engine Compartment Left:

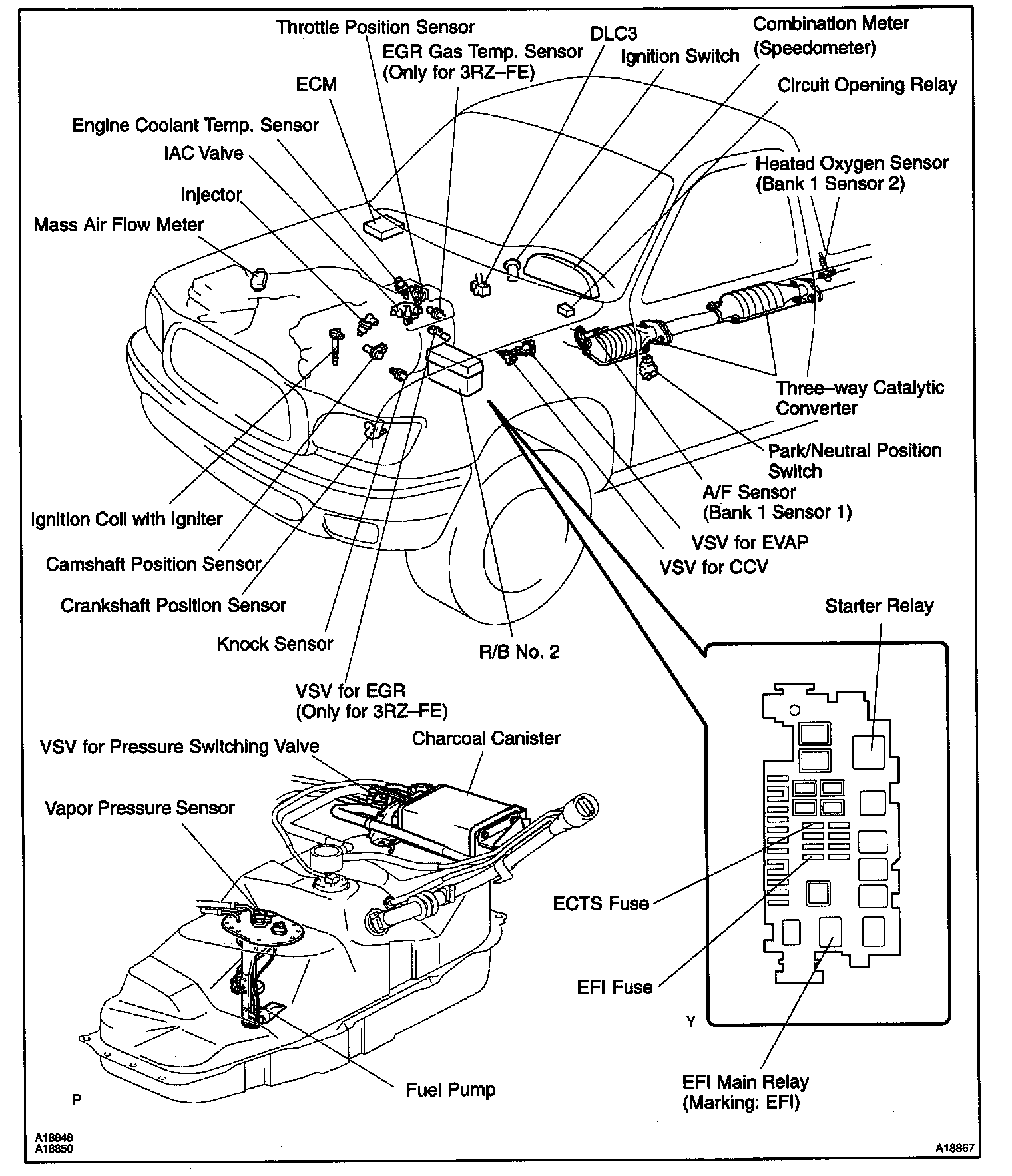

Engine:
