Multiple Junction Connector

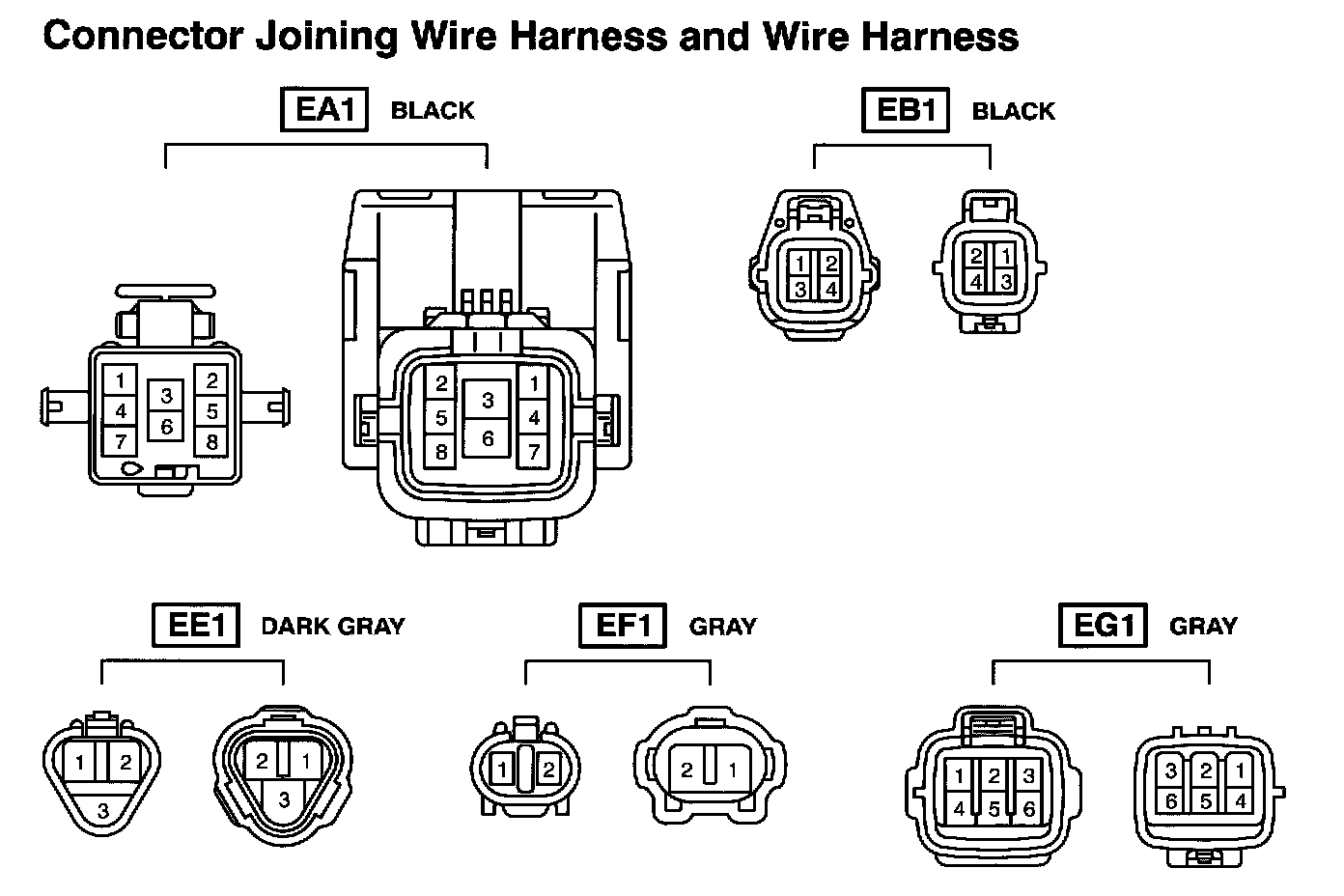

EA1 - EG1:

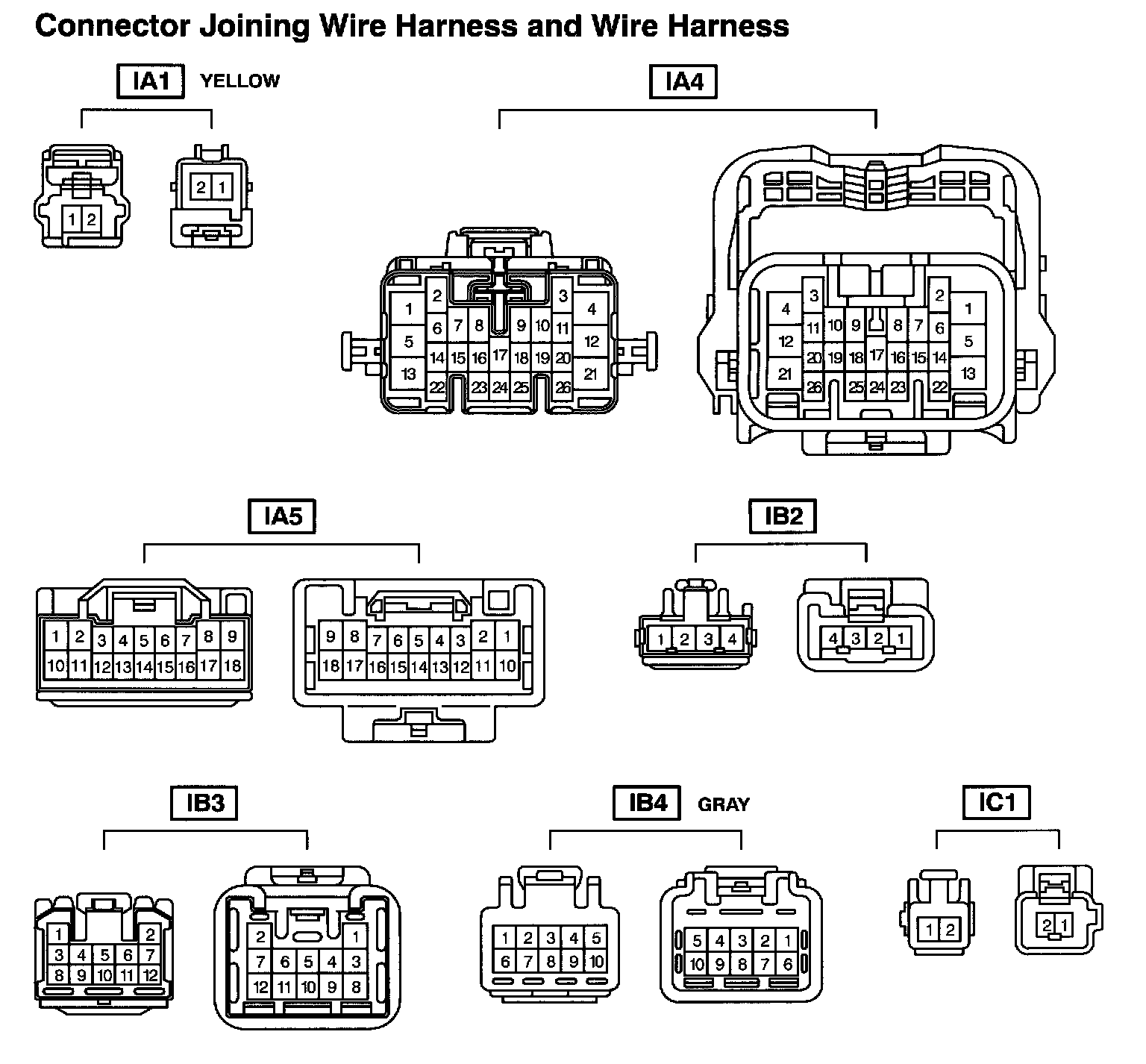

IA1 - IC1:

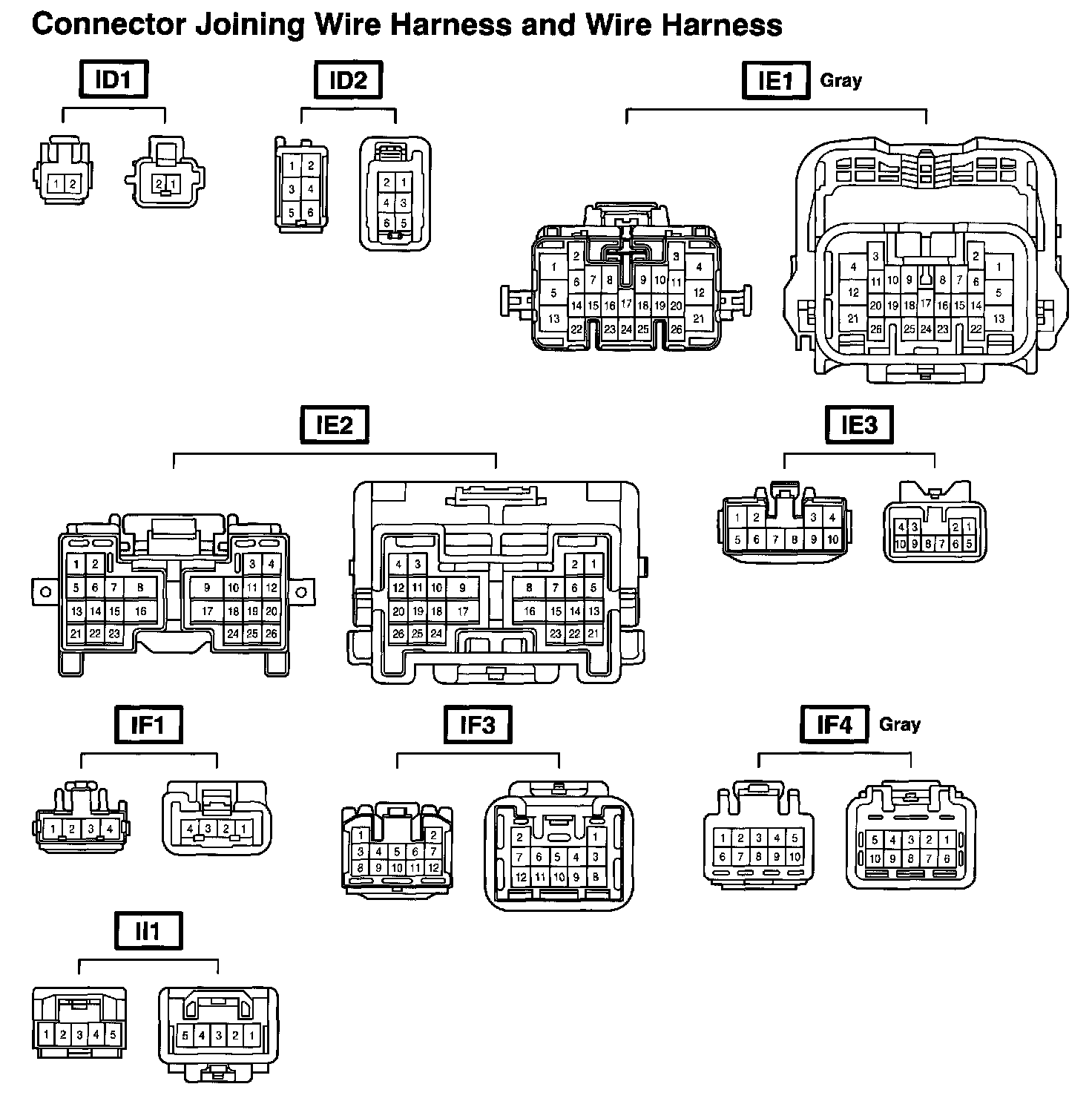

ID1 - II1:

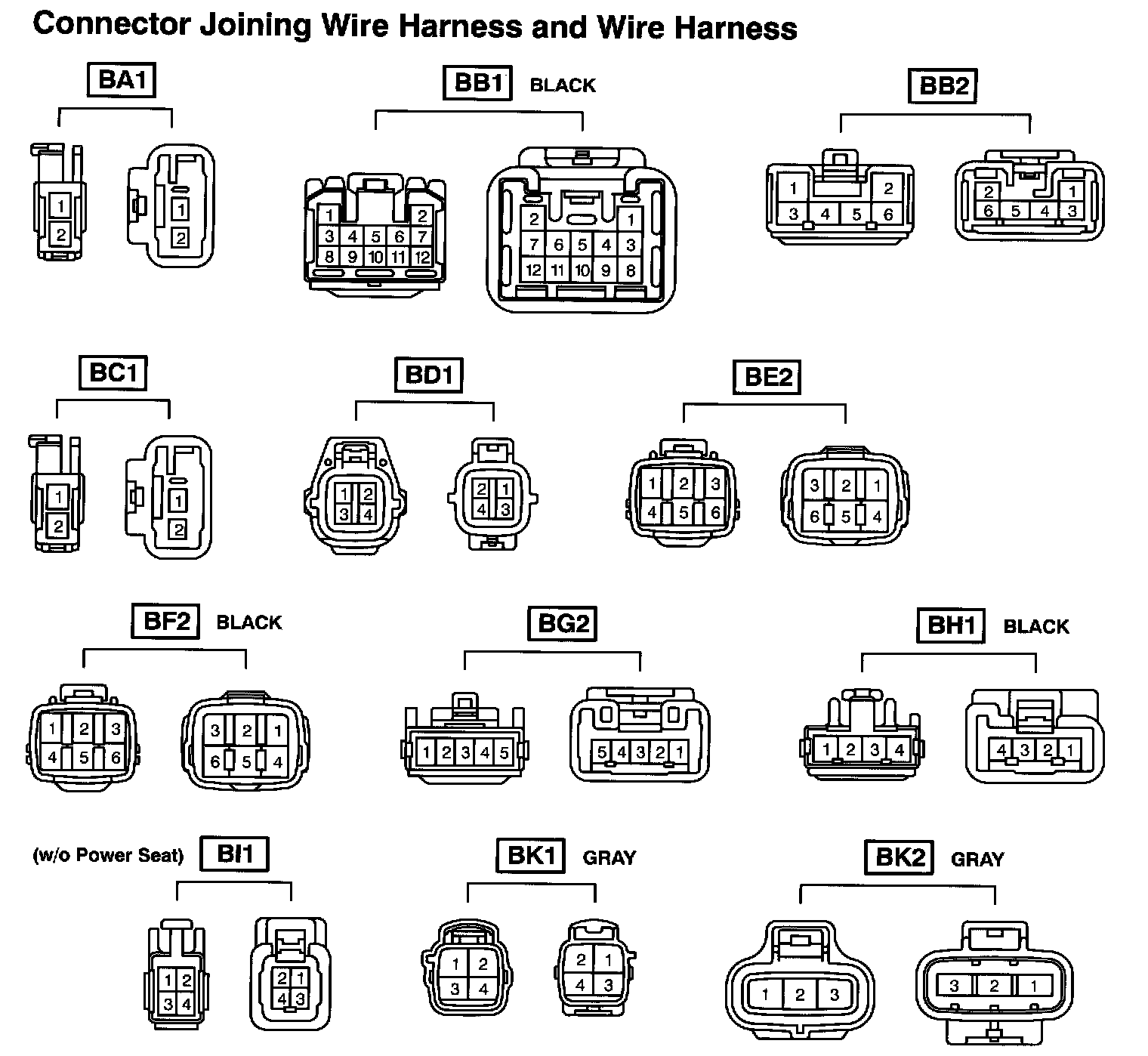

BA1 - BK2 (Access Cab):

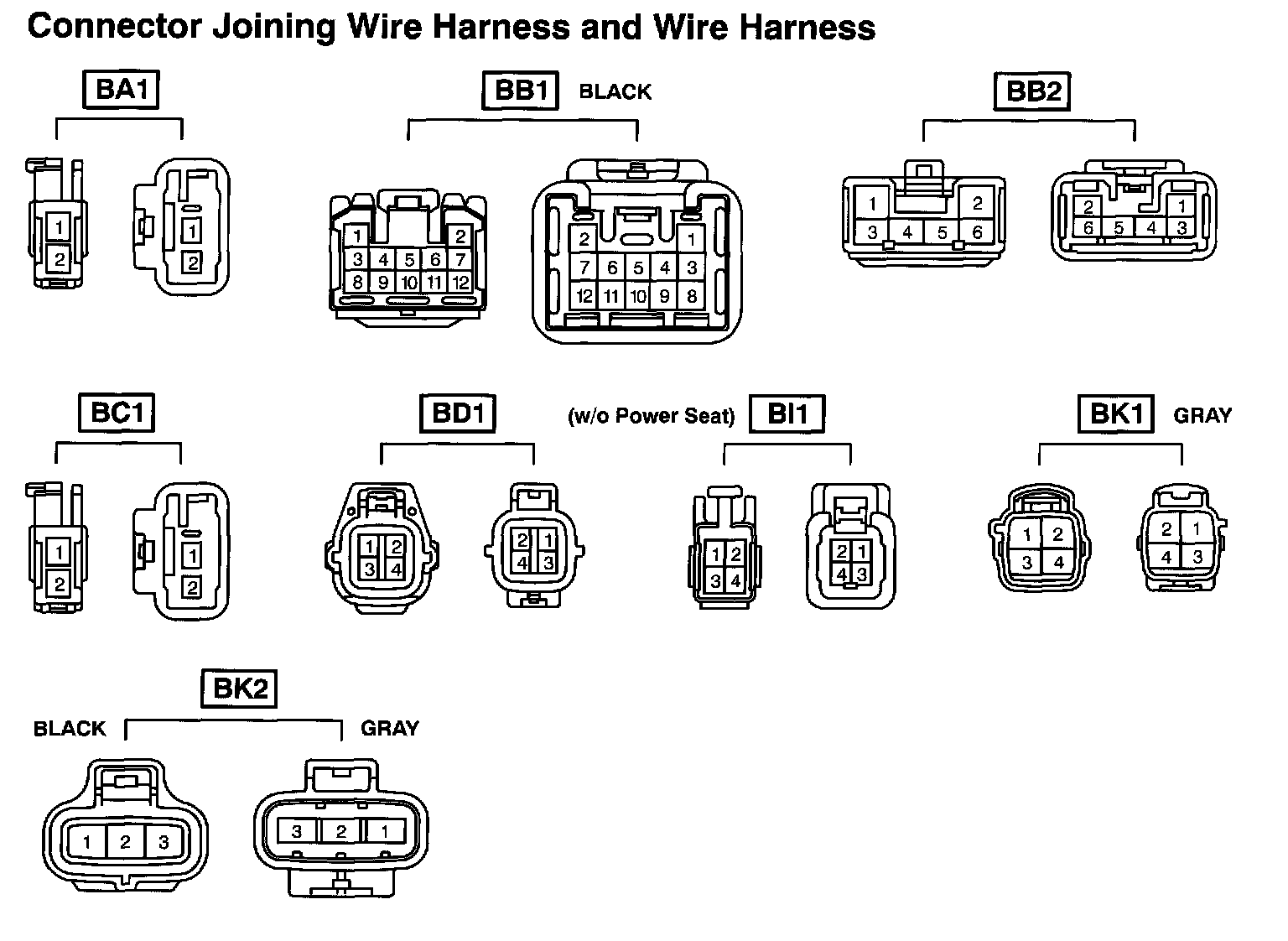

BA1 - BK2 (Standard Cab):




BI1 - BJ1:
