Home >> Toyota >> 2003 >> Tundra 2WD V6-3.4L (5VZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Starter Motor

Starter Motor

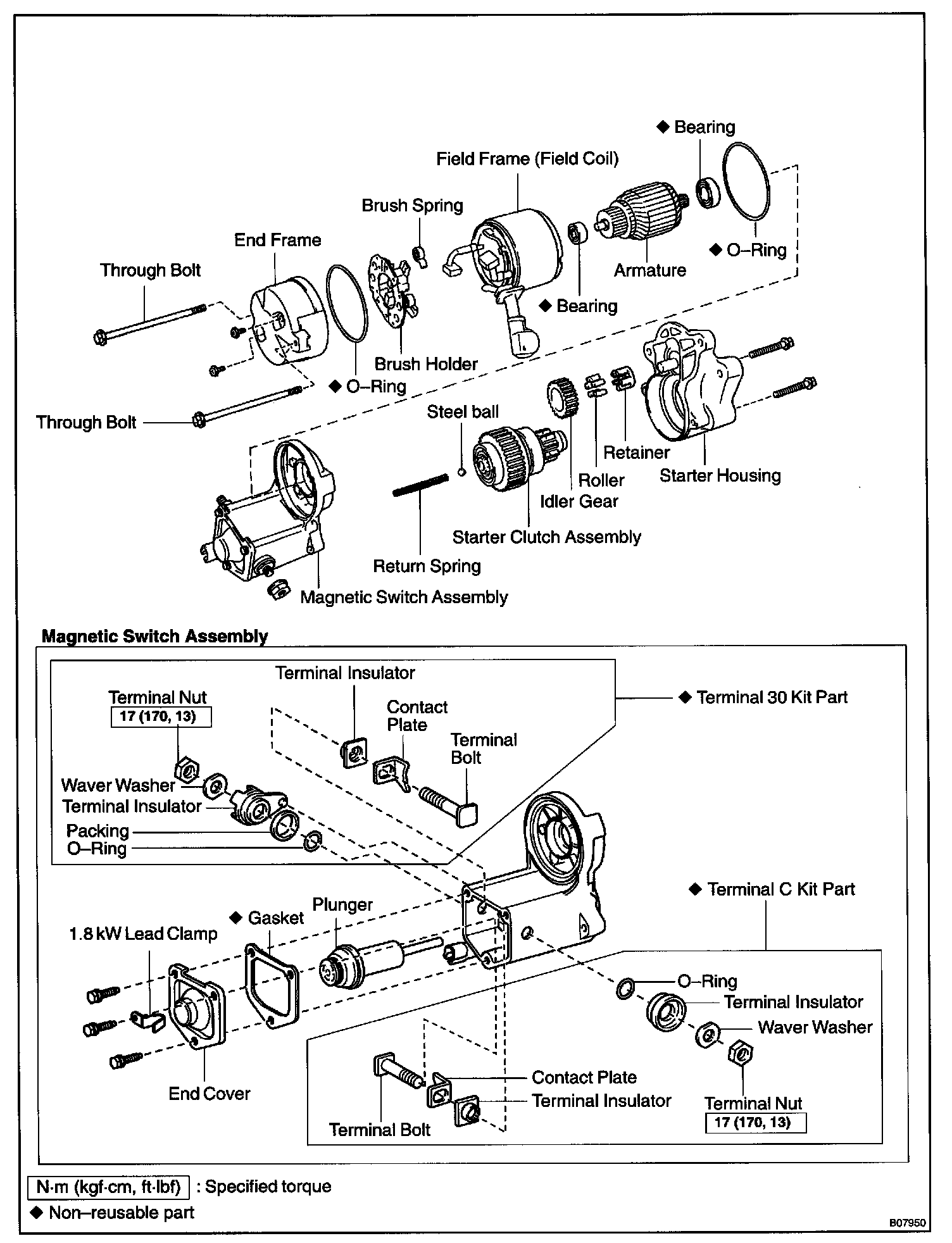

Starter (Part 1):



Starter (Part 2):
