Water Pump
Water Pump

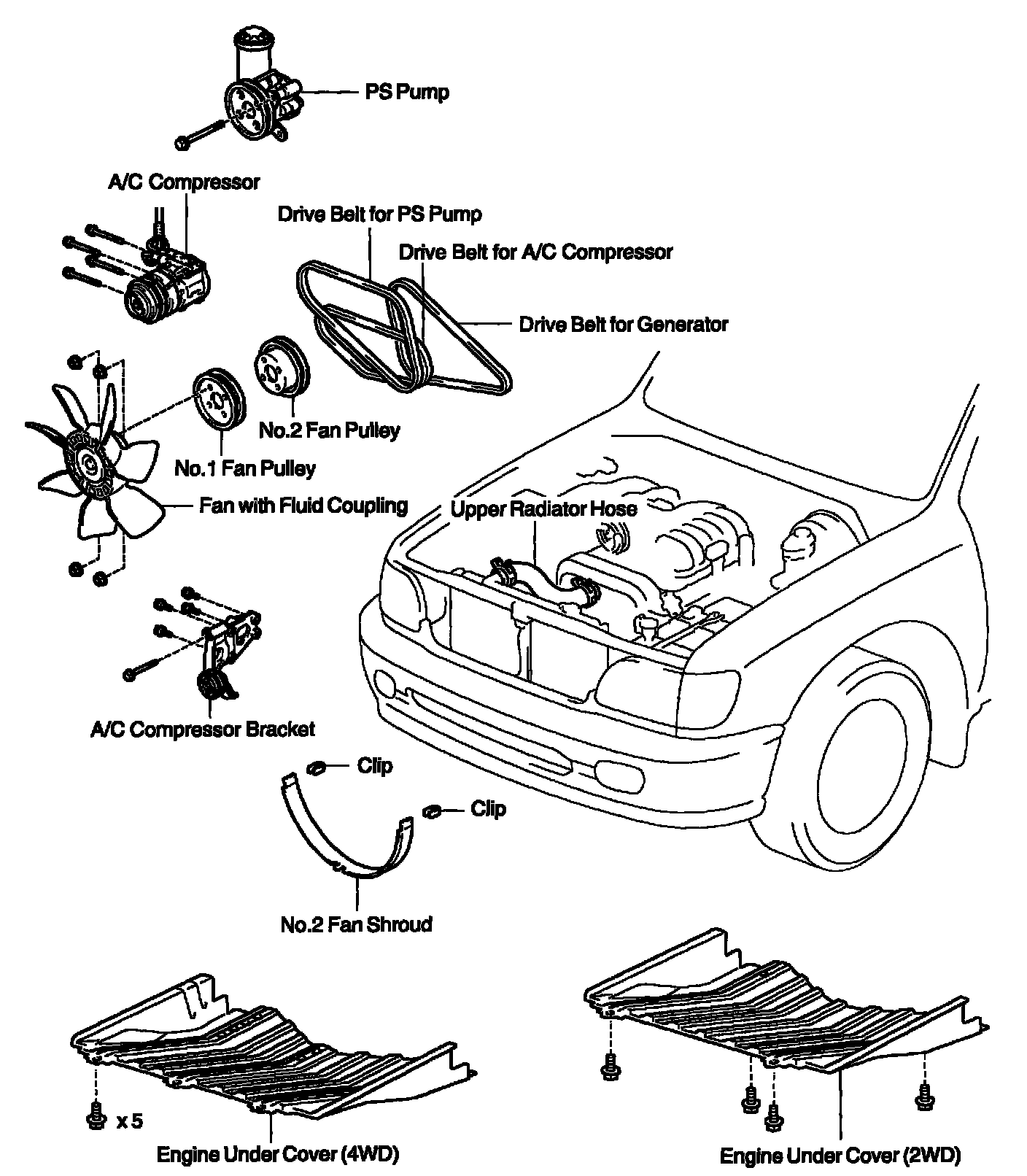

Part 1 Of 3:

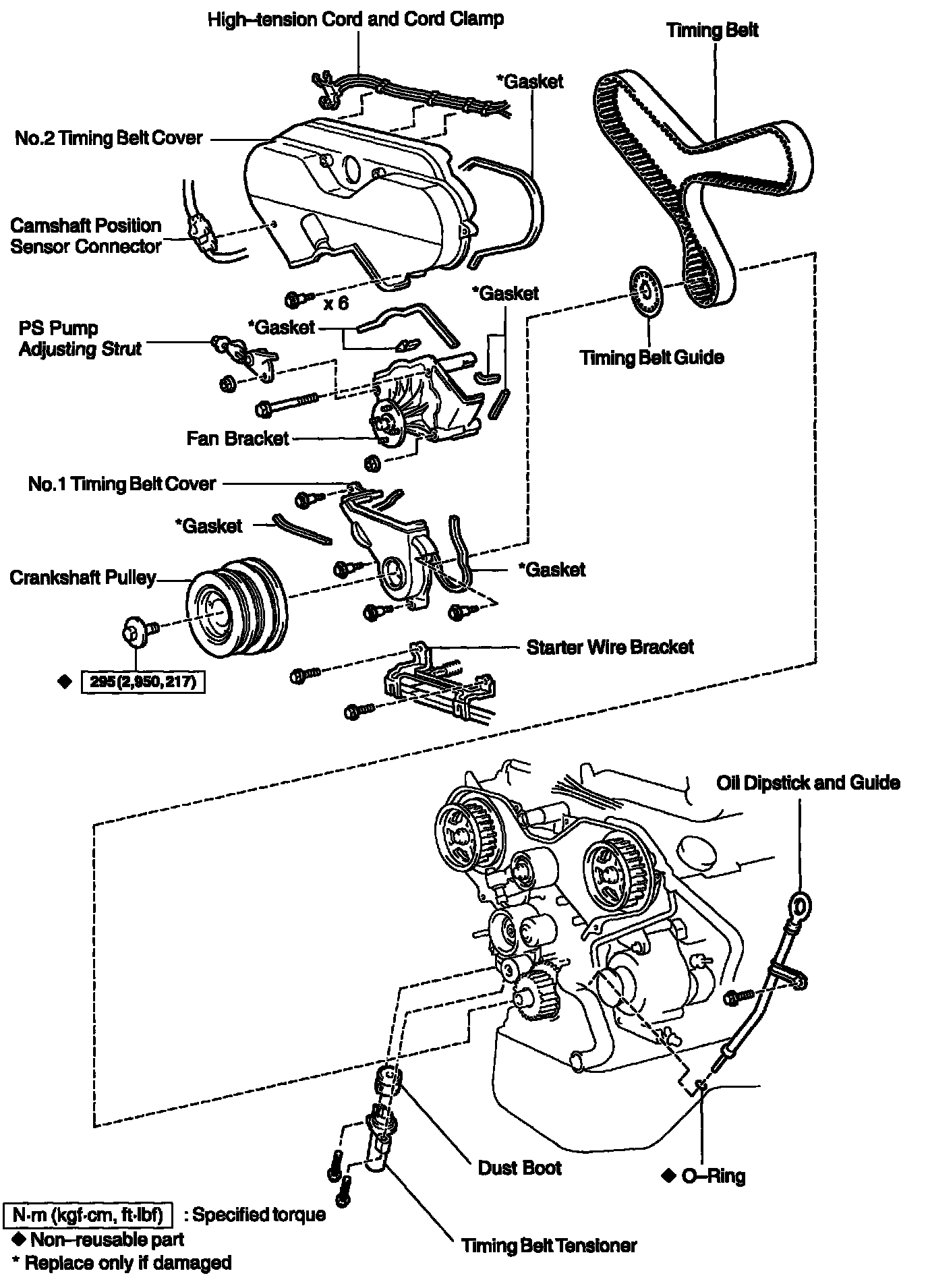

Part 2 Of 3:

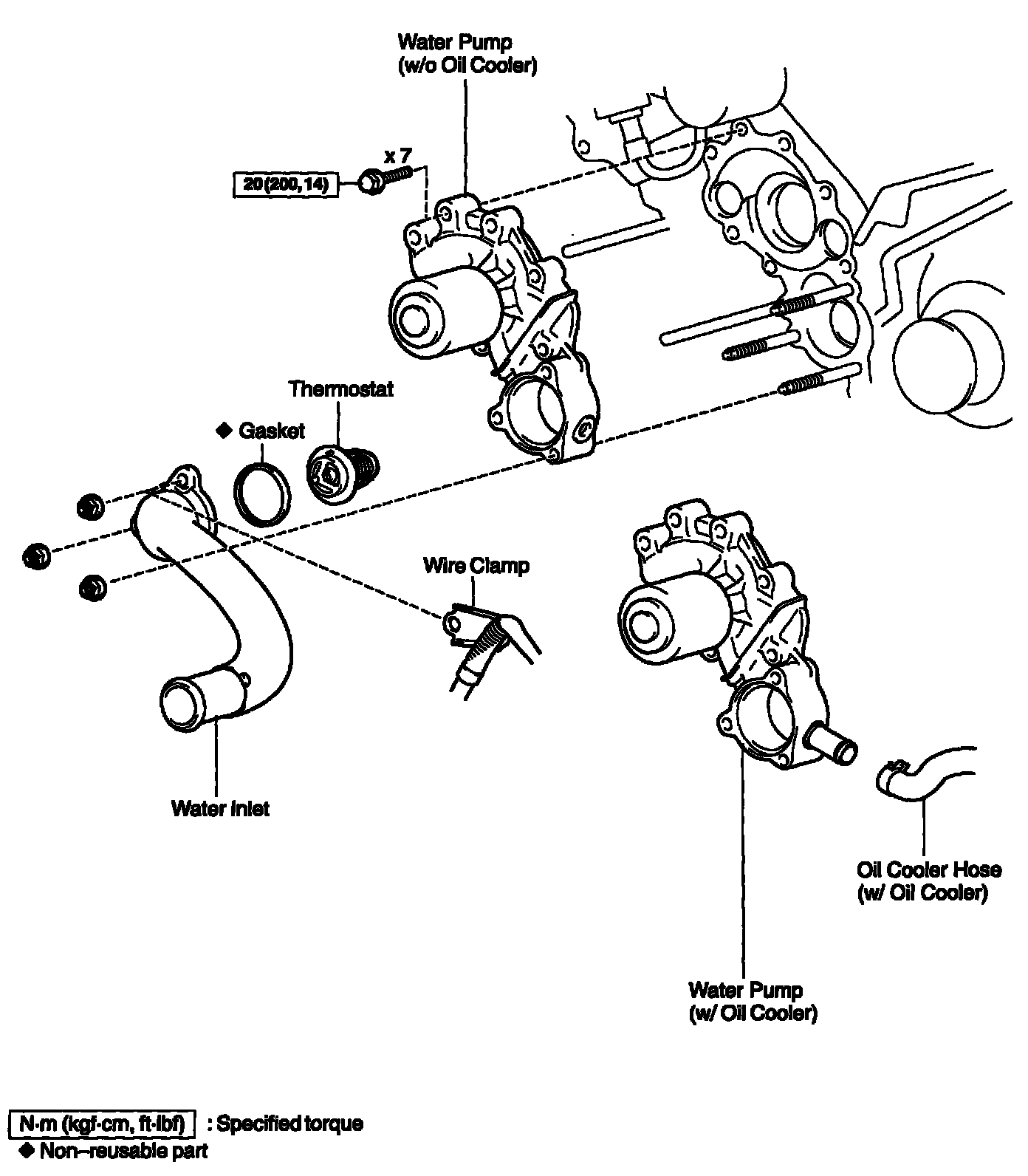

Part 3 Of 3:
WATER PUMP REPLACEMENT W/ RELATED COMPONENTS
