Fail-Safe Operation
Fail-Safe Operation

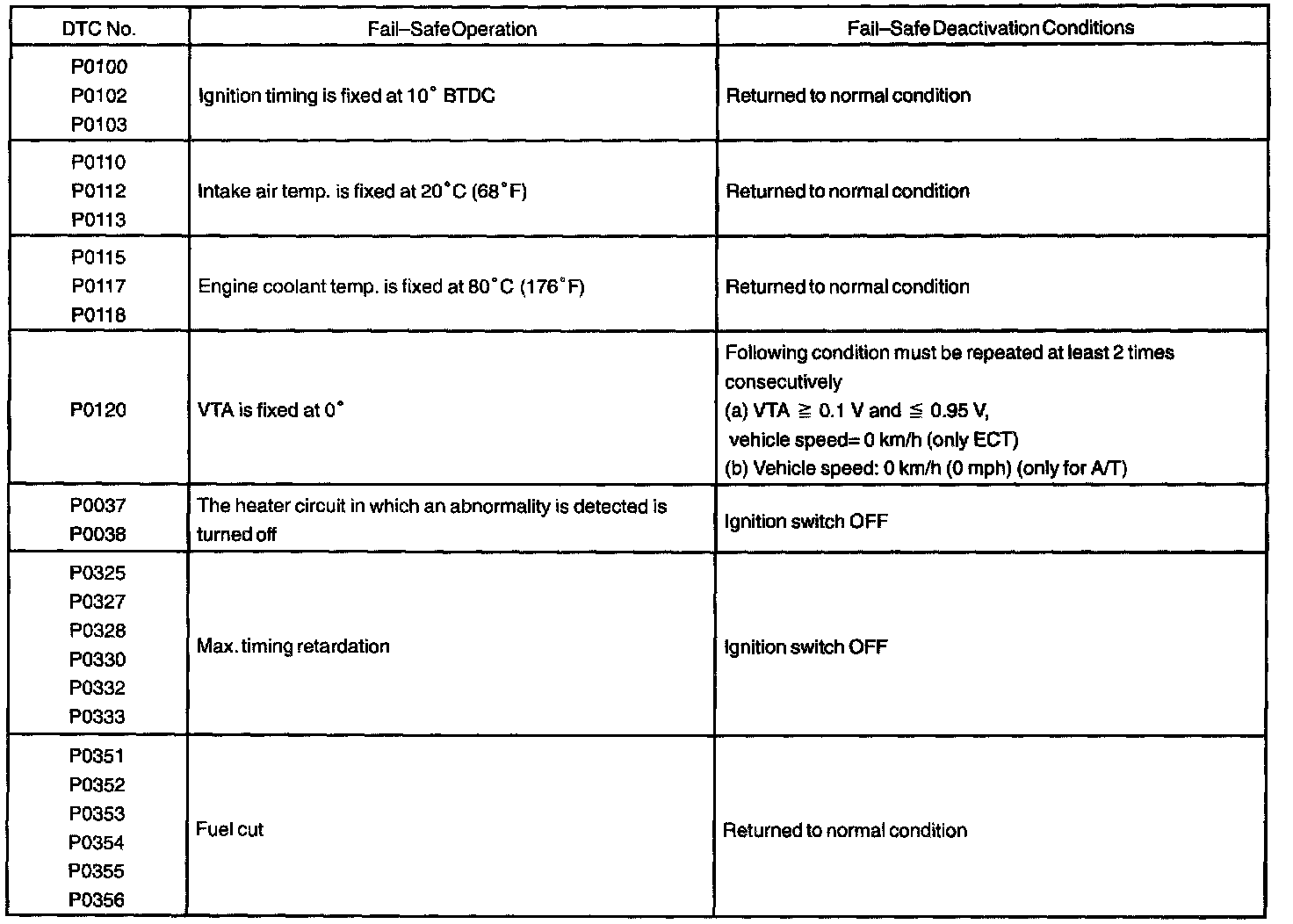

Fail-Safe Chart
P0100 - P0356:
If any of the following codes are recorded. the ECM enters into the fail-safe mode.
