Power Window Switch: Testing and Inspection

Driver's Switch:

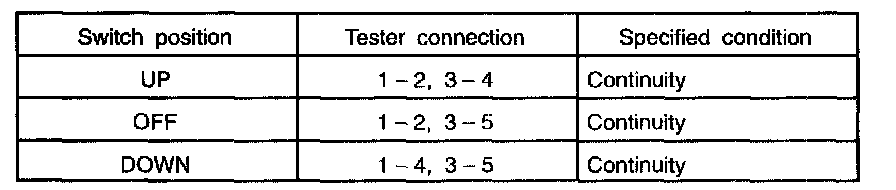

Passenger's Switch : Window Unlock:

Passenger's Switch : Window Lock:

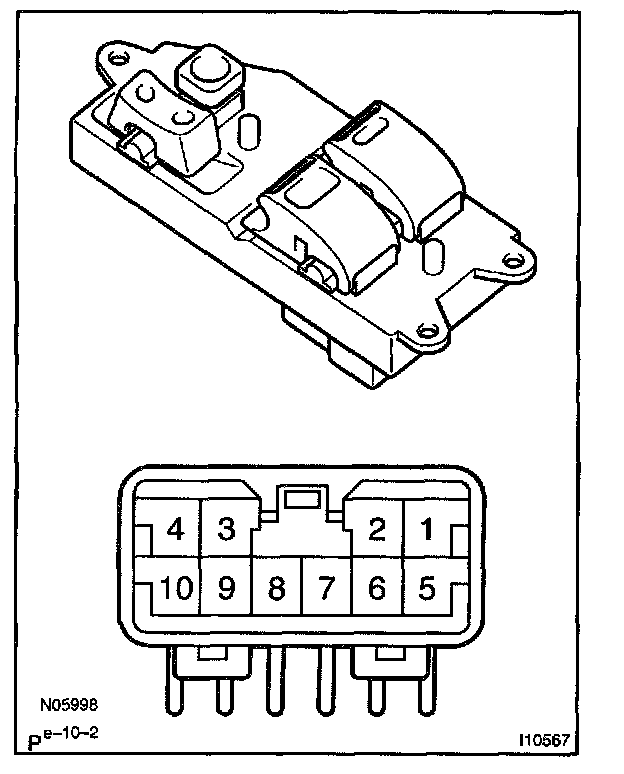

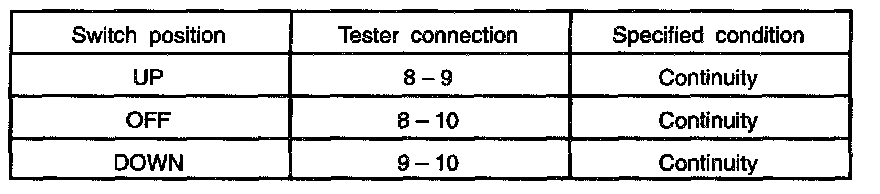

INSPECT POWER WINDOW MASTER SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

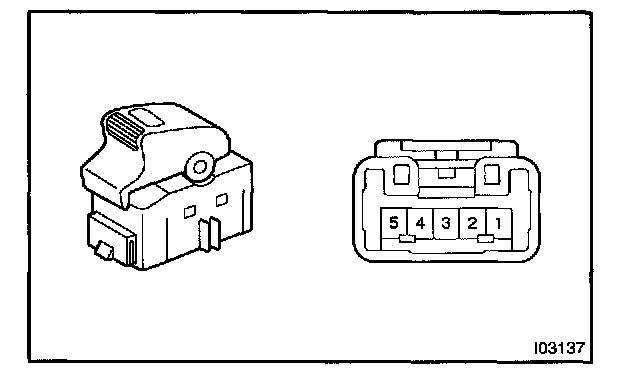

INSPECT POWER WINDOW CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.







INSPECT POWER MAIN RELAY CONTINUITY
If continuity is not as specified, replace the switch.

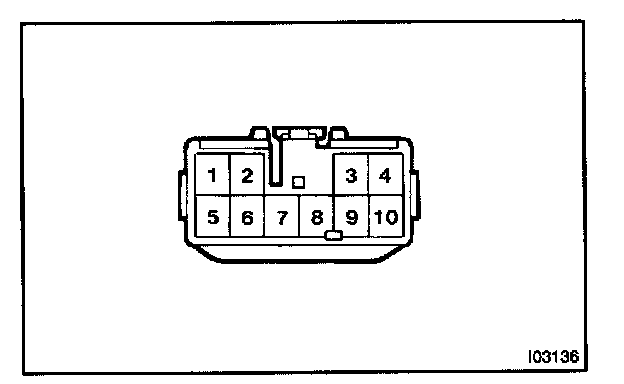

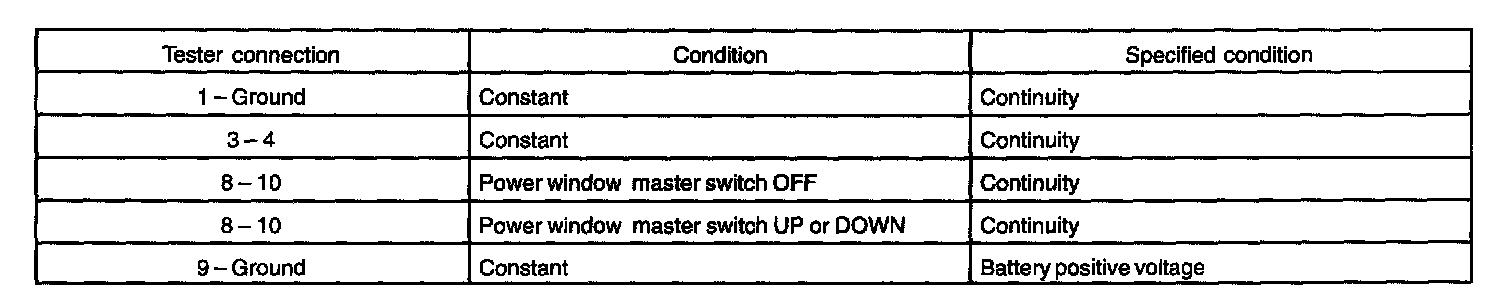

CHECK POWER WINDOW MASTER SWITCH CIRCUIT
Disconnect the connector from the master switch and inspect the connector on the wire harness side.

If the circuit is not as specified,inspect the circuits connected to other parts.
