Tire Pressure Module: Service and Repair

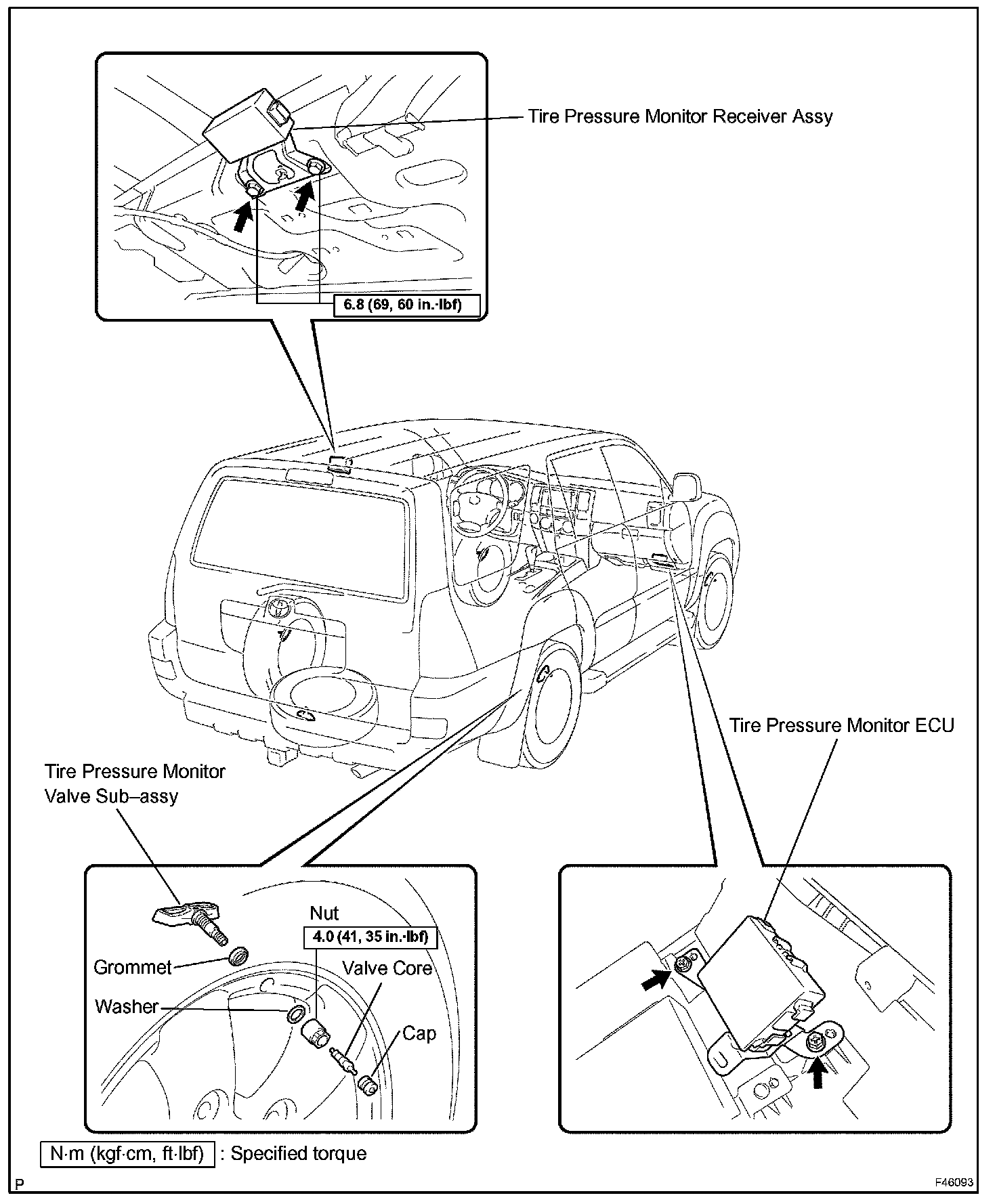

TIRE PRESSURE MONITOR ECU (From August, 2003)
REPLACEMENT
1. DISCONNECT BATTERY NEGATIVE TERMINAL
(a) Disconnect the negative terminal.

2. REMOVE FRONT DOOR SCUFF PLATE RH
3. REMOVE COWL SIDE TRIM BOARD RH
4. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2





5. REMOVE TIRE PRESSURE MONITOR ECU
(a) Disconnect the connector.
(b) Remove the 2 screws and tire pressure monitor ECU.





6. INSTALL TIRE PRESSURE MONITOR ECU
(a) Install the tire pressure monitor ECU with the 2 screws.
(b) Connect the connector.

7. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2
8. INSTALL COWL SIDE TRIM BOARD RH
9. INSTALL FRONT DOOR SCUFF PLATE RH
10. CONNECT BATTERY NEGATIVE TERMINAL
11. REGISTRATION OF TRANSMITTER ID
12. INSPECT TIRE PRESSURE WARNING SYSTEM
SST 09843-18040
13. PERFORM INITIALIZATION
