VSC Off Indicator Light, Center Diff Lock Switch Circuit

VSC OFF INDICATOR LIGHT, CENTER DIFF. LOCK SWITCH CIRCUIT

CIRCUIT DESCRIPTION
When the center differential is locked, VSC control goes off and the VSC OFF indicator lights up. Also, the VSC OFF indicator light goes on when the VSC system is at the fail safe control.

Wiring Diagram:

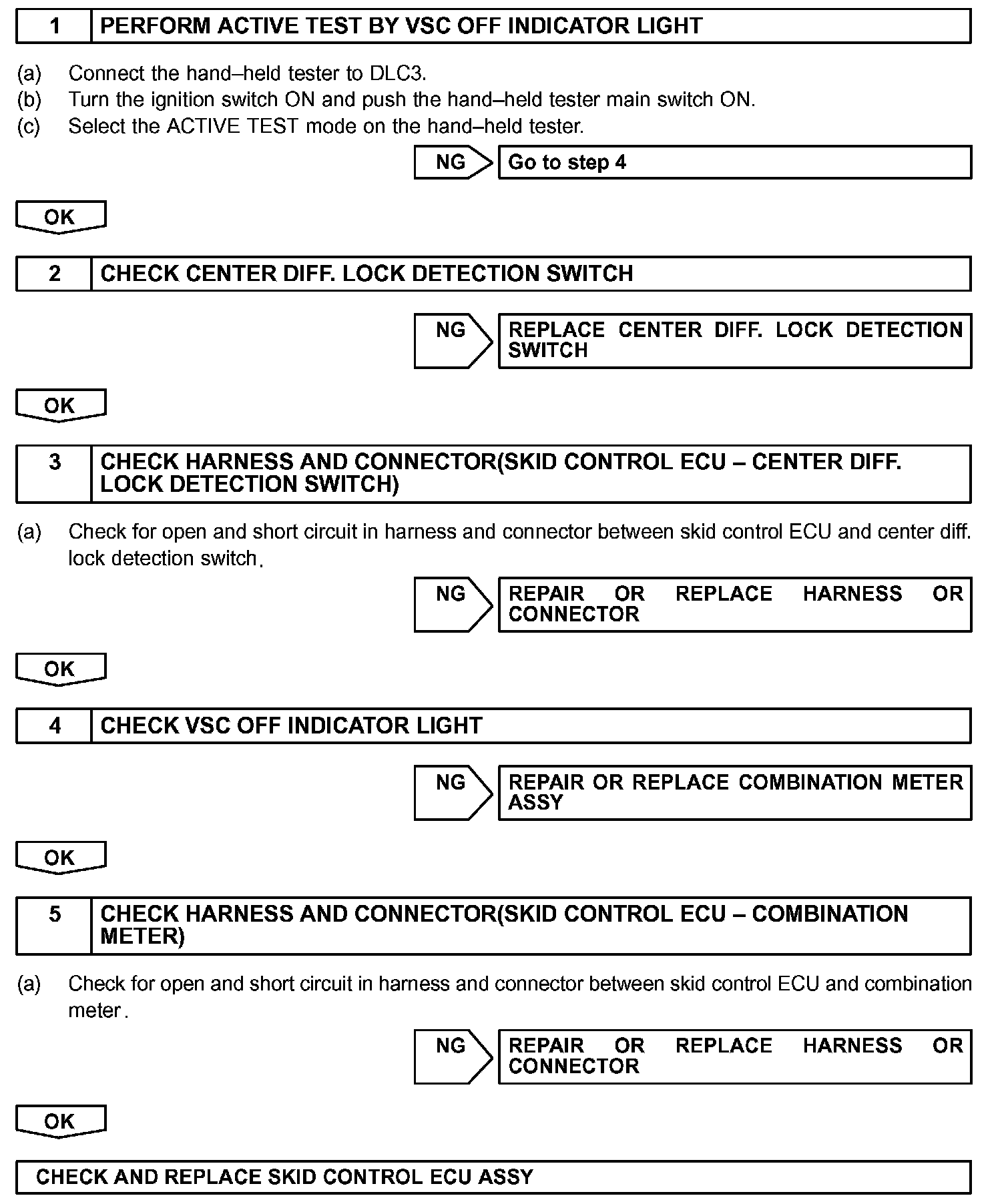

Step 1 - 5:




INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not using the hand-held tester.
