Manual Up/Down Function Back Door Lock Does Not Operate
MANUAL UP/DOWN FUNCTION VIA BACK DOOR LOCK KEY CYLINDER DOES NOT OPERATECIRCUIT DESCRIPTIONIf the manual UP/DOWN function via the back door lock key cylinder does not operate, the back door lock key cylinder or the wire harness may be abnormal.

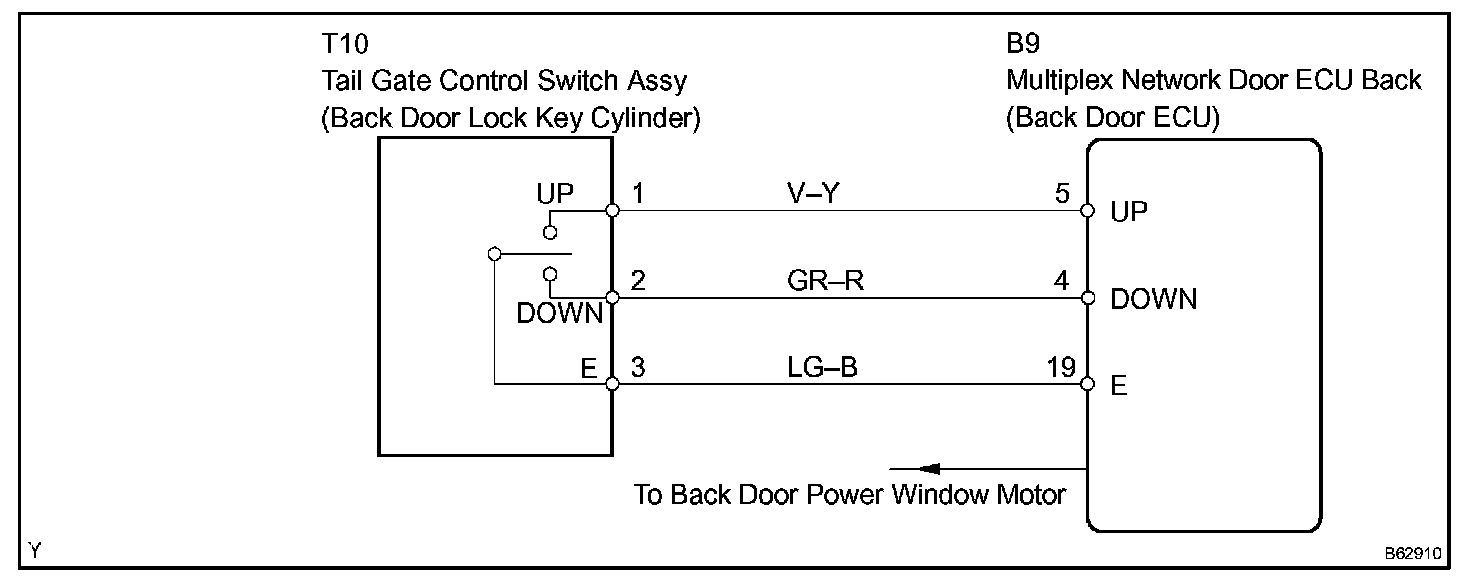

Wiring Diagram:
Step 1 - 2:

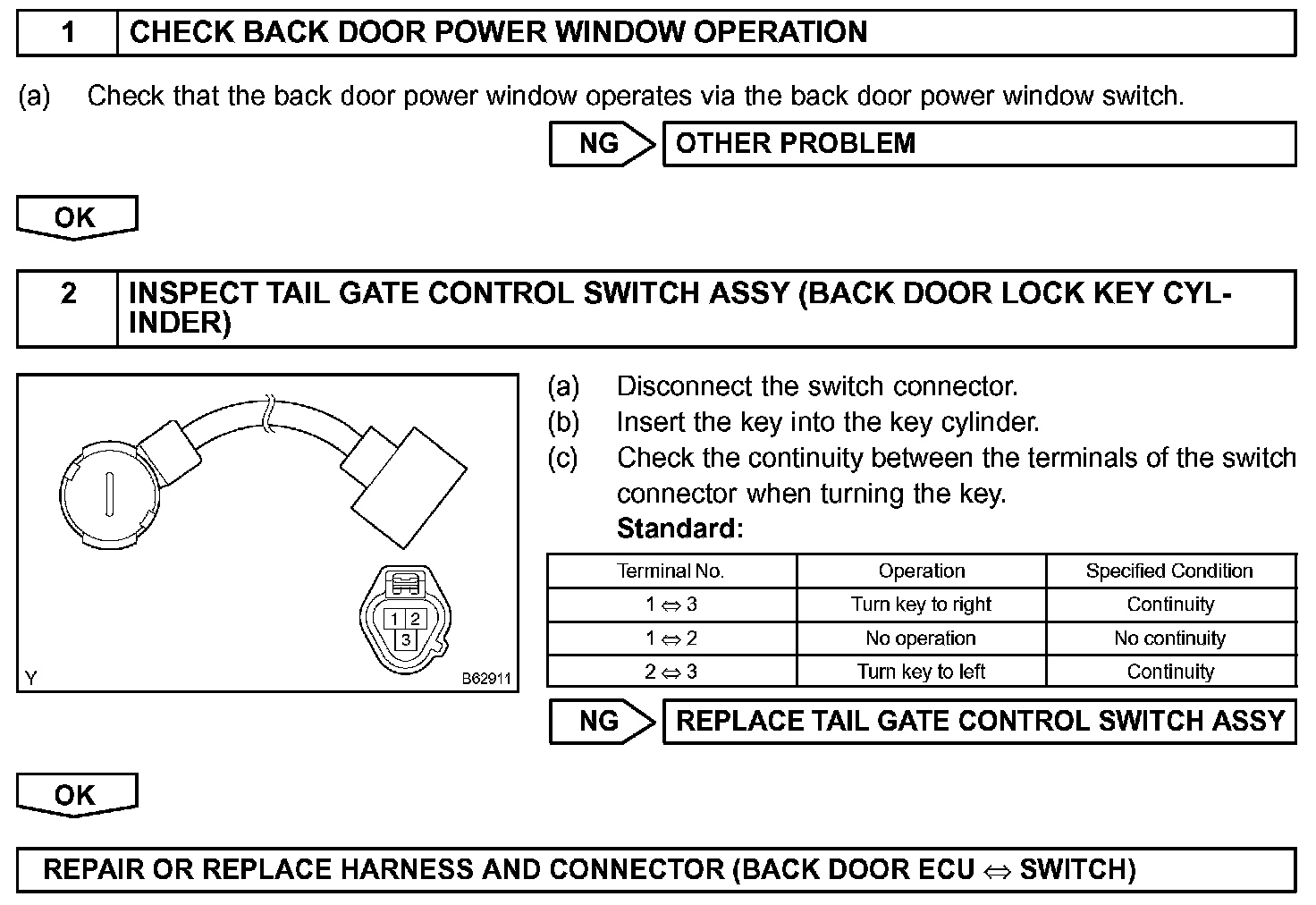

INSPECTION PROCEDURE
