Computers and Control Systems: Description and Operation

DESCRIPTION

1. Overview
a. The new CAMRY meets the Partial Zero Emission Vehicle (PZEV) requirements.
b. The PZEV requirements are as follows:

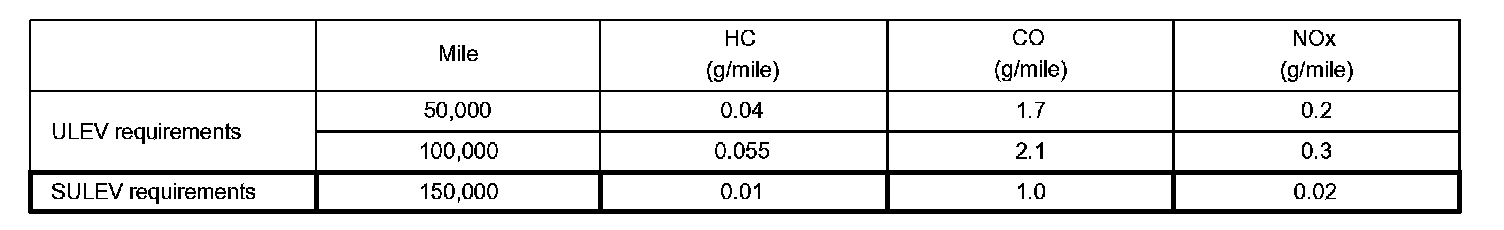

1. Exhaust emission meets the Super Ultra Low Emission Vehicle (SULEV) requirements. (table attached)

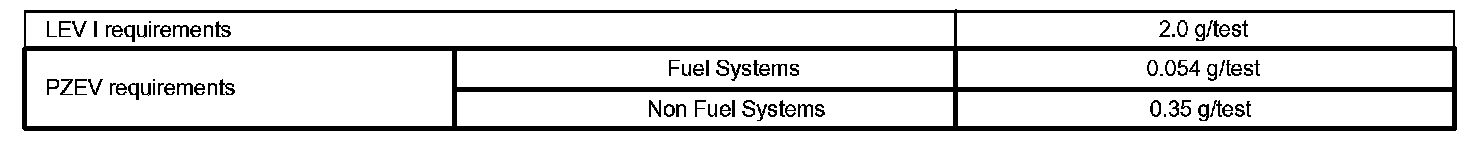

2. Evaporative emission meets the PZEV requirements. (table attached)

2. Structure

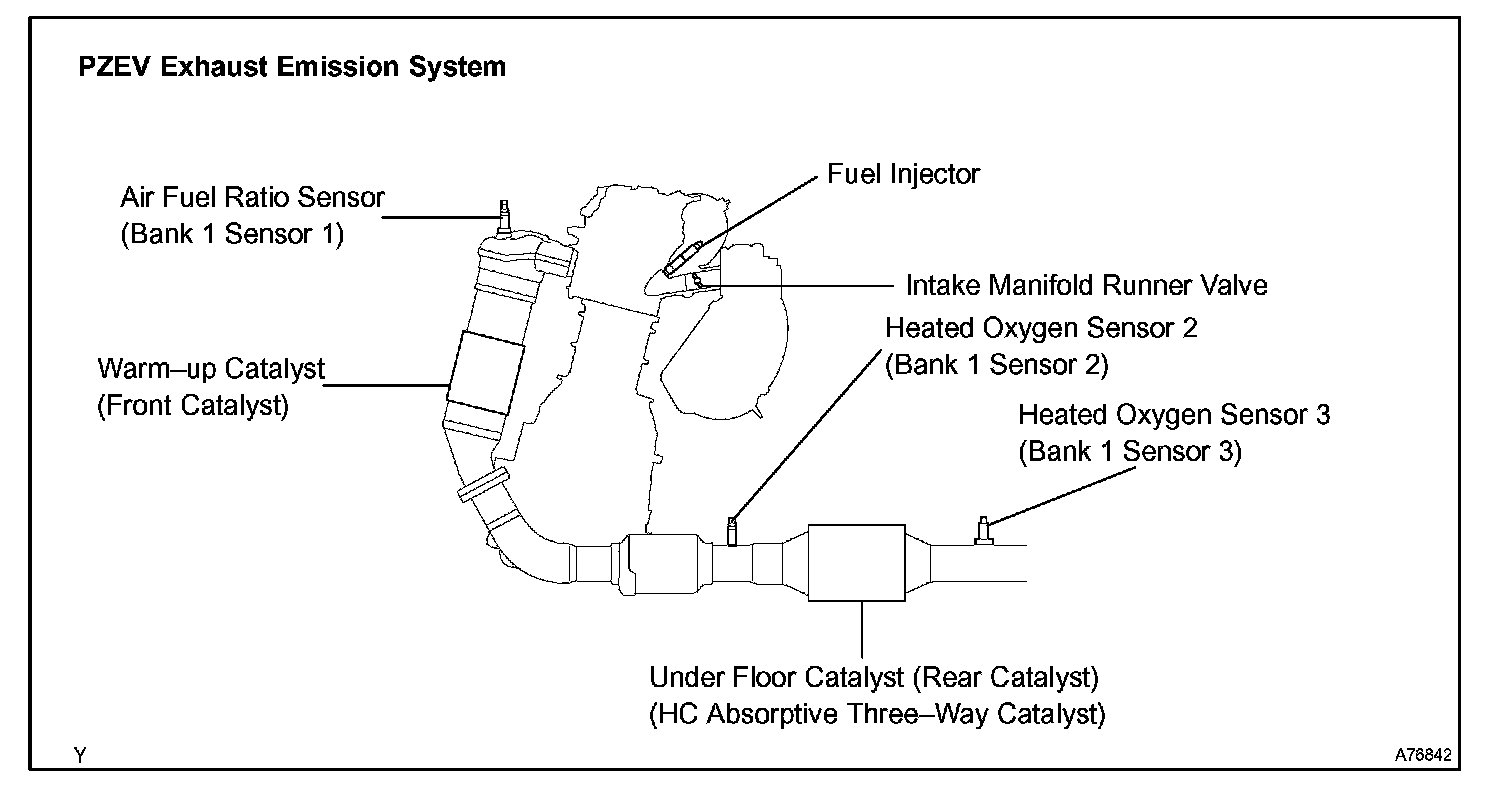

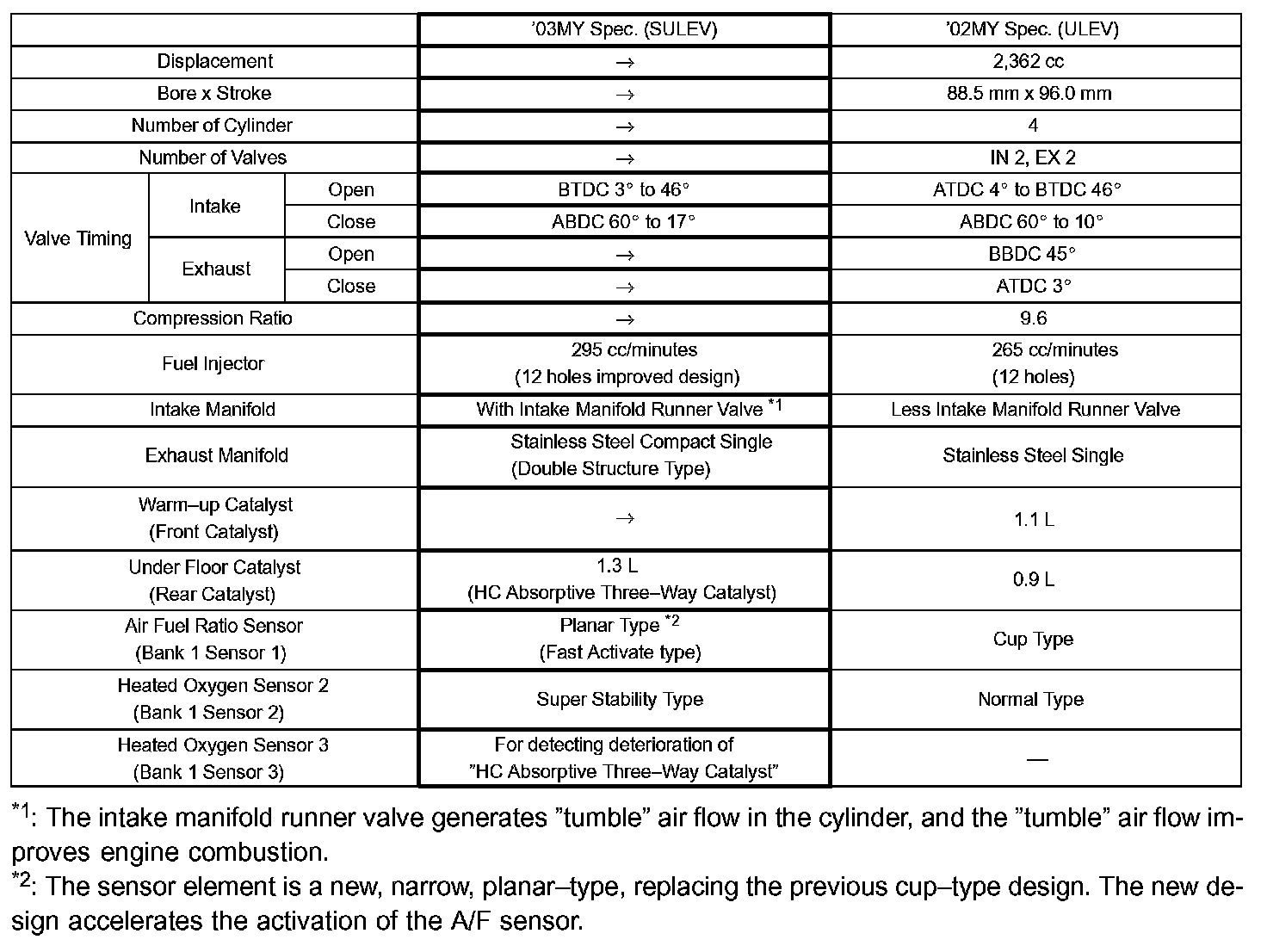

a. The exhaust emission system has been changed to meet the SULEV requirements.

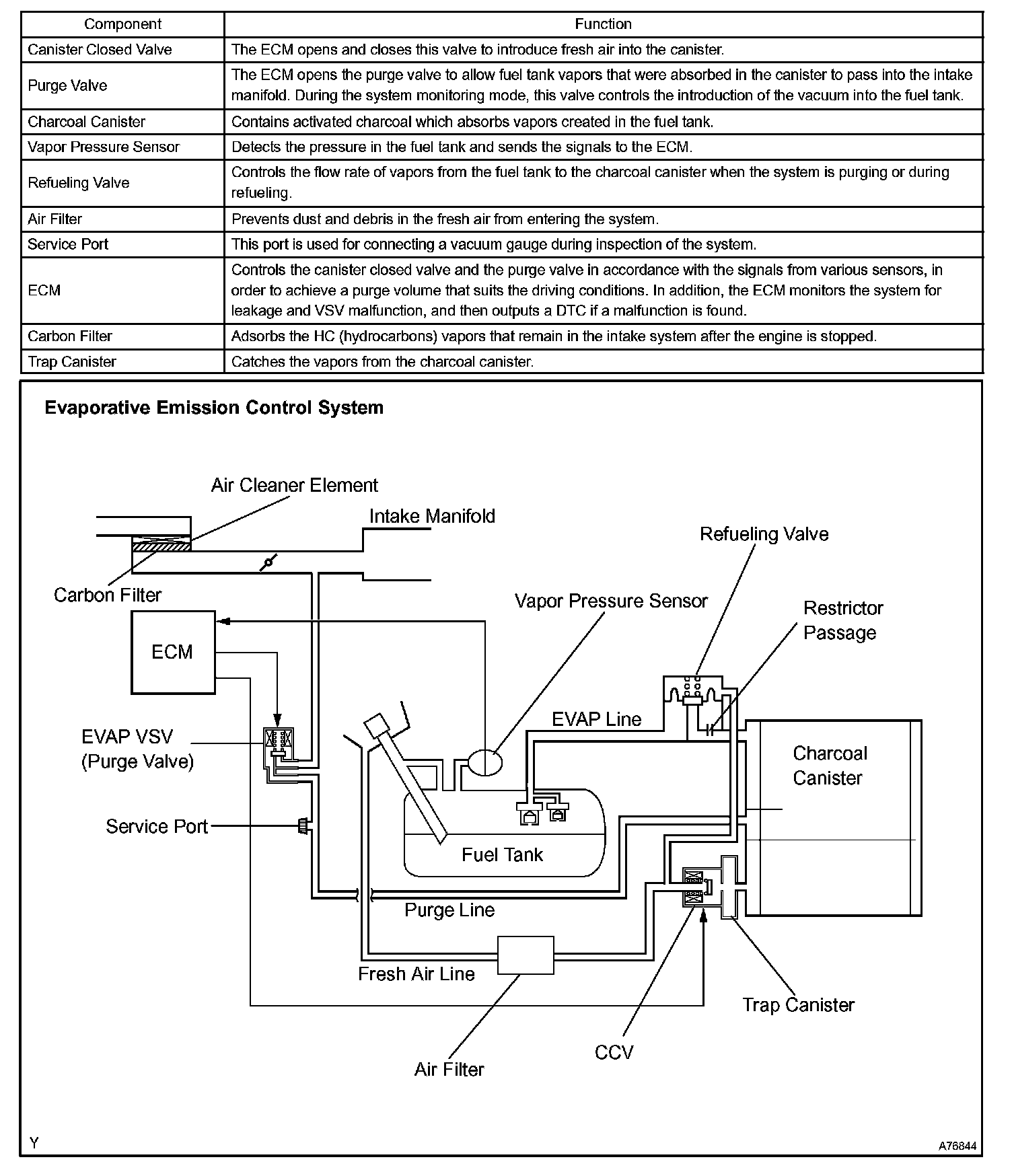

b. The construction of the evaporative emission control system has been changed.
