Airbag Sensor Connectors




DISCONNECTION

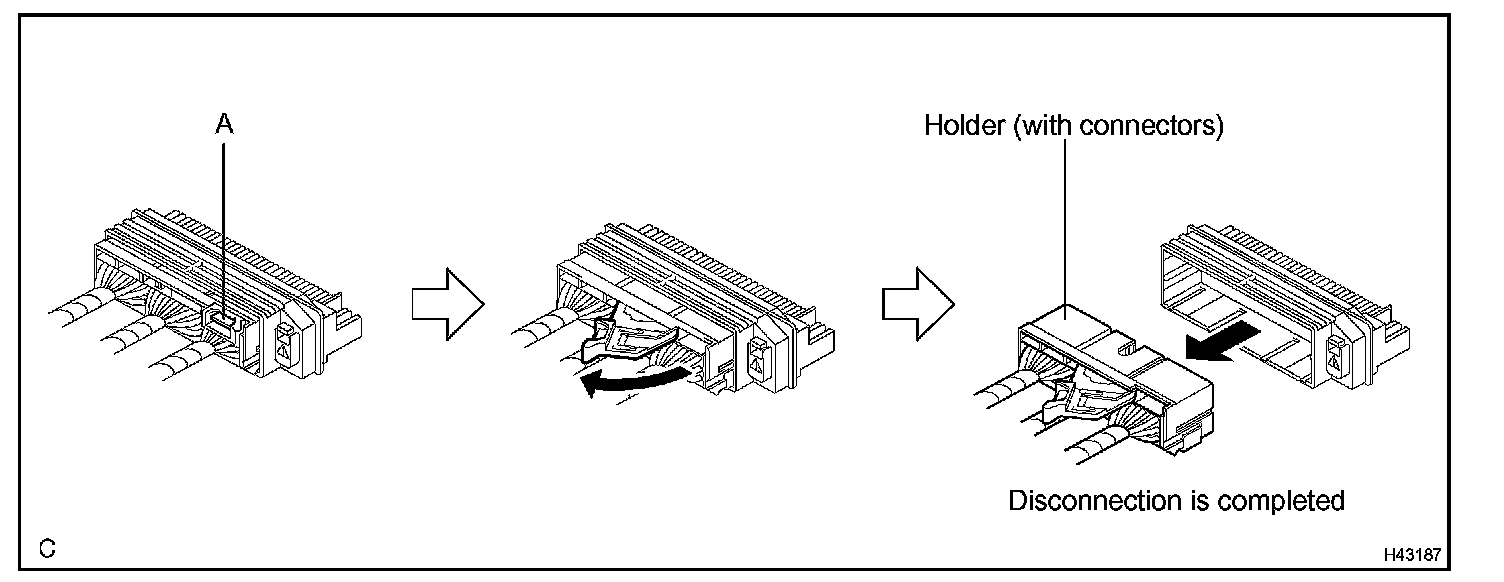

a. Pull the lever by pushing part A as shown in the illustration and disconnect the holder (with connectors).

HINT: Perform the following procedures when replacing the holder.







b. Remove the holder.

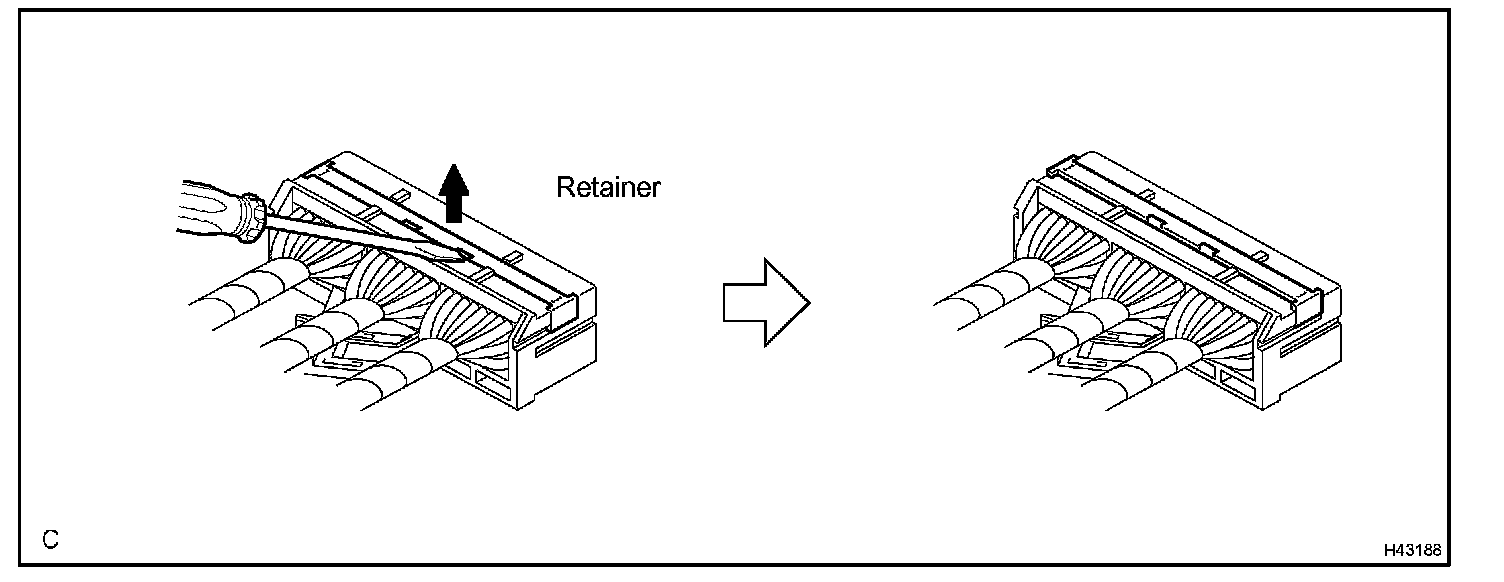

1. Using a screwdriver, unlock the retainer.

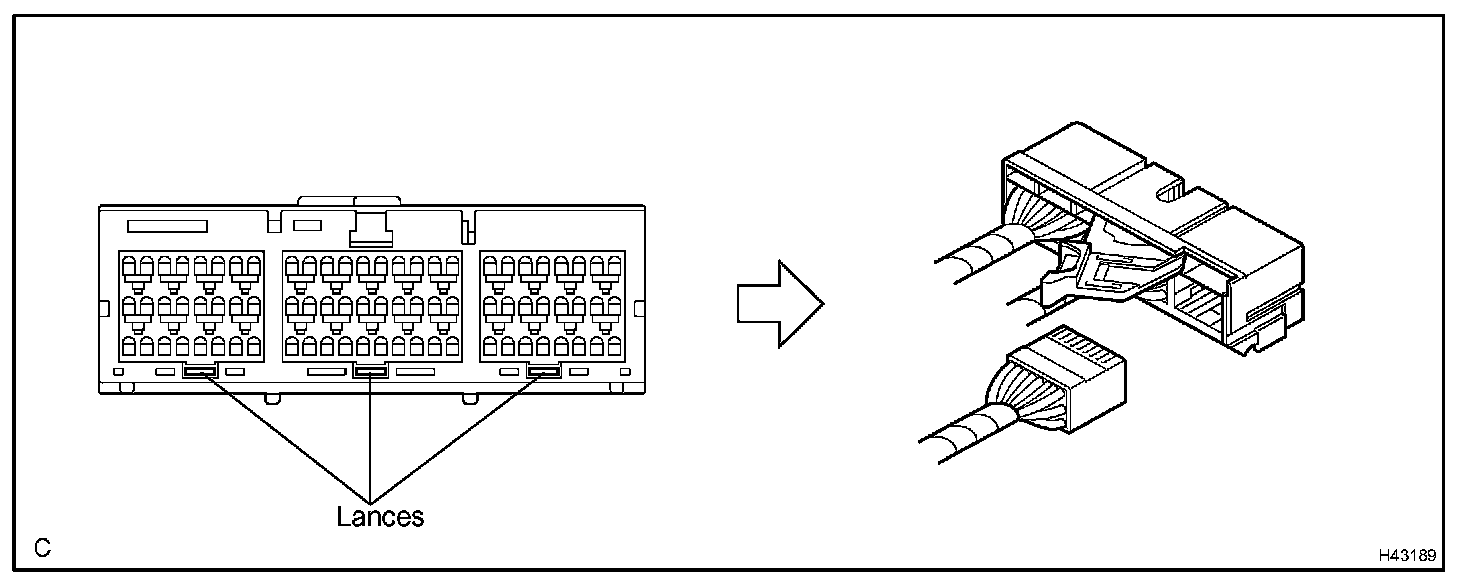

2. Release the lance fittings and remove the holder.




c. Install the holder.

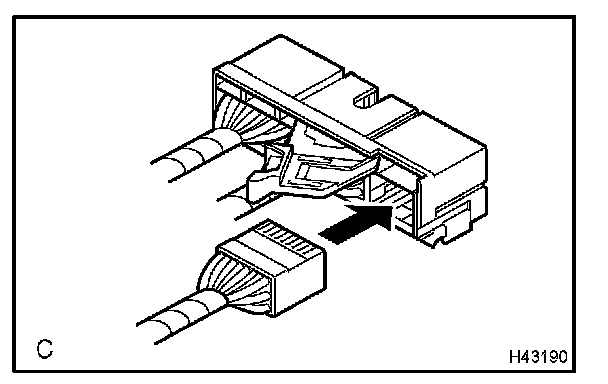

1. Install the connectors to the holder. (When locking, a click sound can be heard.)

HINT: The retainer is locked when the holder is connected.




CONNECTION

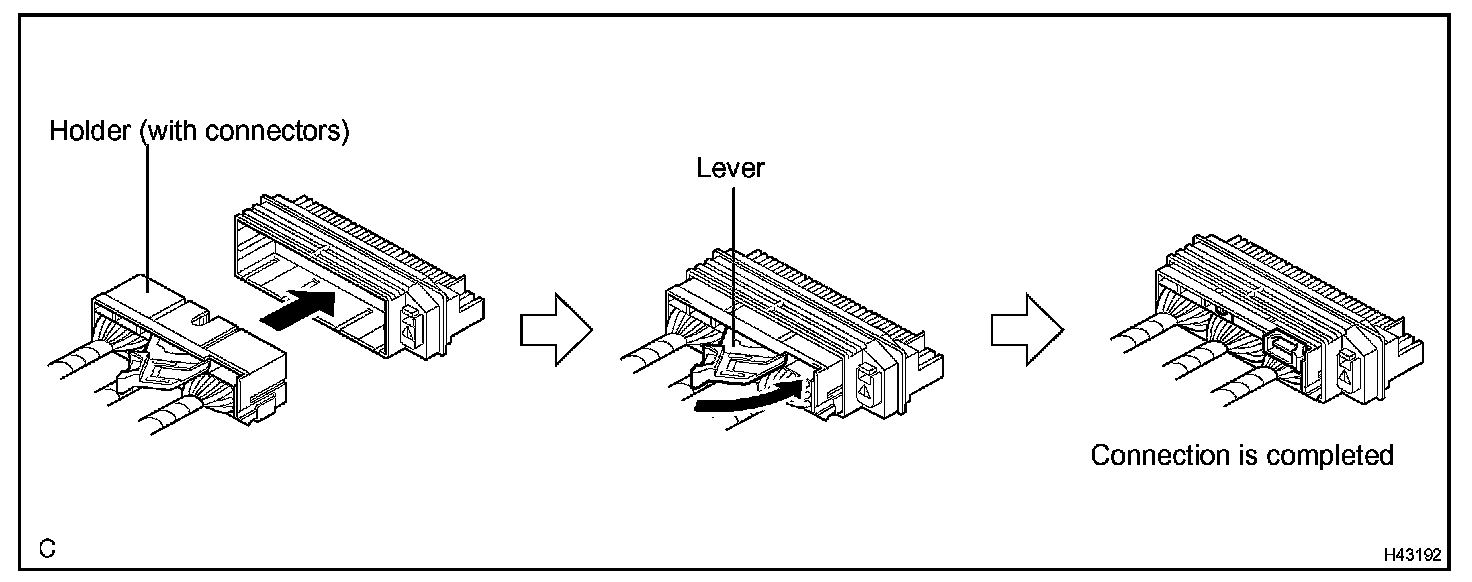

a. Firmly insert the holder (with connectors) until it can not be pushed any further.
b. Push the lever to connect the holder (with connectors). When locking, a click sound can be heard.

HINT: The holder slides when connected. Holding the holder when connecting may result in an insecure connection.
