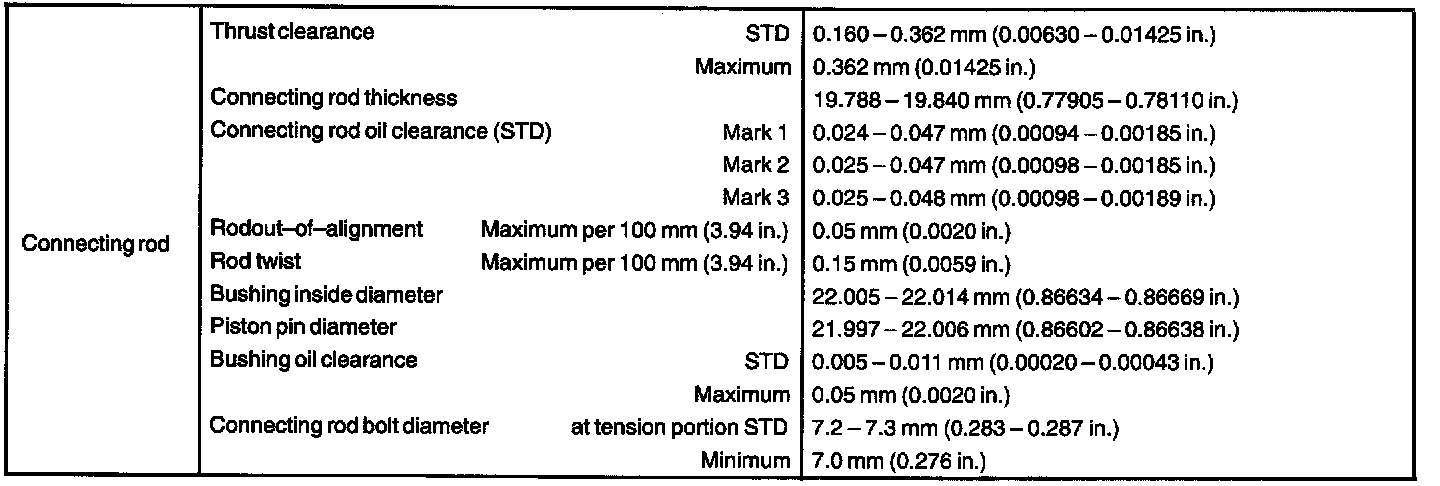

Connecting Rod Bearing
Cap Nut Torque
25Nm (18 ft lbs)
NOTE: Apply a light coat of engine oil on the threads and under the nuts. Install and alternatively tighten in several passes. If any one of the cap nuts does not meet the torque specification, replace the connecting rod bolt and cap nut as a set.
