Camshaft Position Sensor: Service and Repair

Camshaft Position Sensor:






REMOVAL
1. REMOVE NO. 2 CYLINDER HEAD COVER

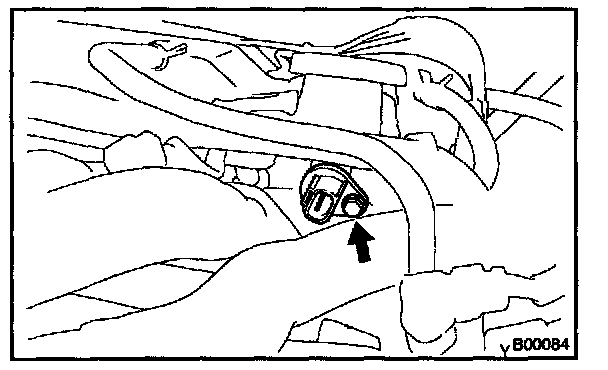

2. 1ZZ-FE:
REMOVE CAMSHAFT POSITION SENSOR
a. Disconnect the connector.
b. Remove the bolt and camshaft position sensor.

Torque: 8.8 N.m (90 kgf.cm, 78 in.lbf)

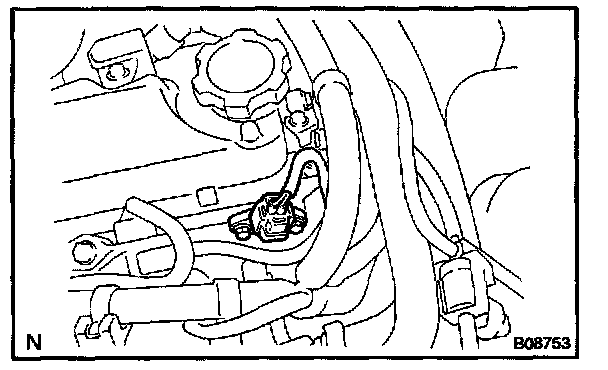

3. 2ZZ-GE:
REMOVE CAMSHAFT POSITION SENSOR
a. Disconnect the connector.
b. Remove the 2 bolts and camshaft position sensor.

Torque: 8.8 N.m (90 kgf.cm, 78 in.lbf)

INSTALLATION
Installation is in the reverse order of removal.
