Airbag Sensor Assembly

Airbag Sensor Assy Center:

REPLACEMENT

1. PRECAUTION
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE PARKING BRAKE HOLE COVER SUB-ASSY
4. REMOVE FLOOR SHIFT SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE)
5. REMOVE SHIFTING HOLE COVER SUB-ASSY (M/T TRANSAXLE)
6. REMOVE CONSOLE PANEL UPPER
7. REMOVE CONSOLE BOX CARPET
8. REMOVE RR CONSOLE BOX




9. REMOVE AIR BAG SENSOR ASSY CENTER

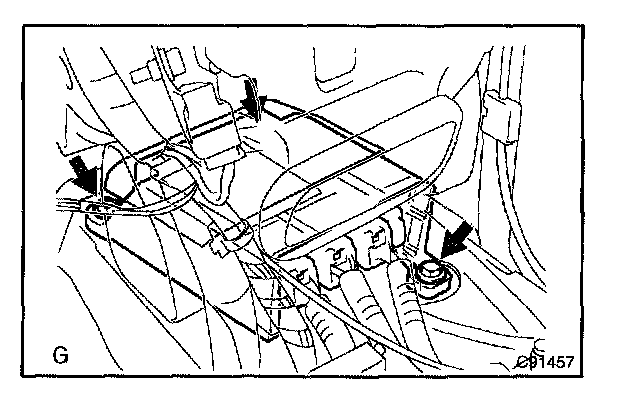

a. Disconnect the 3 connectors from the airbag sensor assy center.
b. Remove the 3 bolts and airbag sensor assy center.

10. INSPECT AIR BAG SENSOR ASSY CENTER
11. INSTALL AIR BAG SENSOR ASSY CENTER
a. Check that the ignition switch is turned to OFF.
b. Check that the battery negative terminal is disconnected.

NOTE: Do not start the operation for 90 seconds after removing the terminal.

c. Temporarily install the airbag sensor assy center with the 3 bolts.
d. Tighten the 3 bolts to the specified torque.

Torque: 17.5 Nm (178 kgf.cm, 13 ft.lbf)

e. Connect the connector to the airbag sensor assy center.
f. Check that no play is identified.

12. INSPECT SRS WARNING LIGHT
