Ignition Switch: Service and Repair
IGNITION OR STARTER SWITCH ASSY REPLACEMENT 1.
REMOVE STEERING COLUMN COVER
2.
REMOVE IGNITION OR STARTER SWITCH ASSY

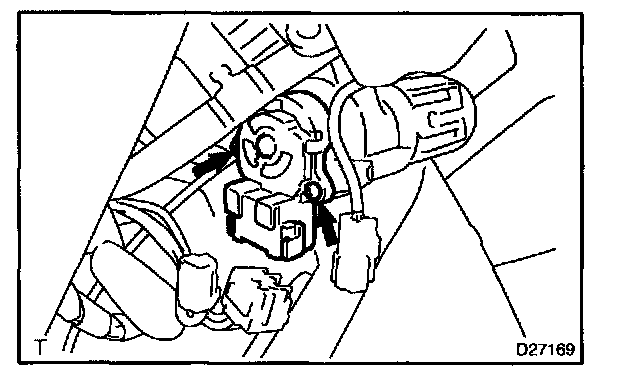

a.
Disconnect the
ignition switch connector and unlock warning switch connector.
b.
Remove the 2 clamps.
c.
Remove the 2 screws and
ignition switch.
