Rear Wheel Alignment

INSPECTION
1. MEASURE VEHICLE HEIGHT

NOTICE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

2. INSPECT CAMBER





Camber

If the measured value is not within the specified value, inspect the suspension parts for damage and/or wear and replace them if necessary because camber is not adjustable.

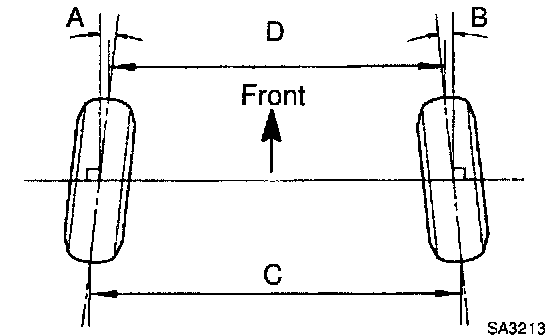

3. INSPECT TOE-IN





Toe in

If the toe-in is not within the specified value, inspect and replace the suspension parts as necessary.
