Camshaft Position Sensor: Service and Repair

REMOVAL

REMOVE CAMSHAFT POSITION SENSOR

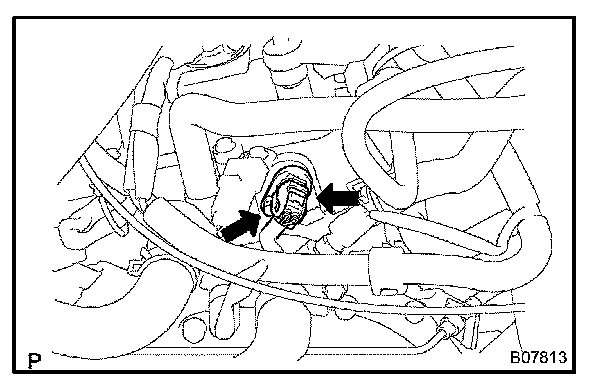

a. Disconnect the connector.
b. Remove the bolt and camshaft position sensor.

Torque: 8.0 Nm (82 kgf.cm, 71 in.lbf)

INSTALLATION

Installation is in the reverse order of removal.
