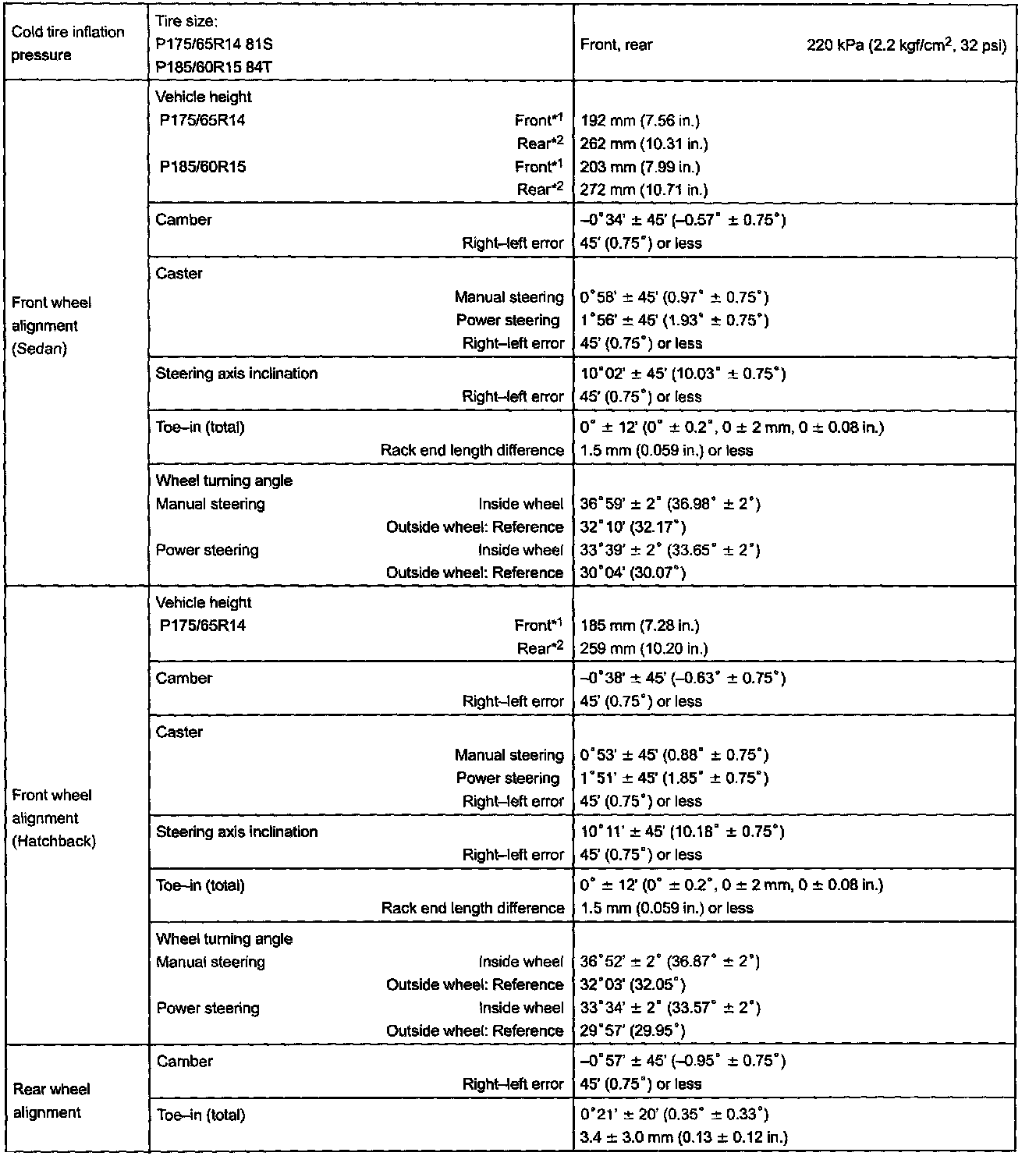

Alignment
*1:
Front measuring point
Measure the distance from the ground to the head center of the front side lower suspension arm mounting bolt.
*2:
Rear measuring point
Measure the distance from the ground to the center of the rear axle beam mounting bolt.
